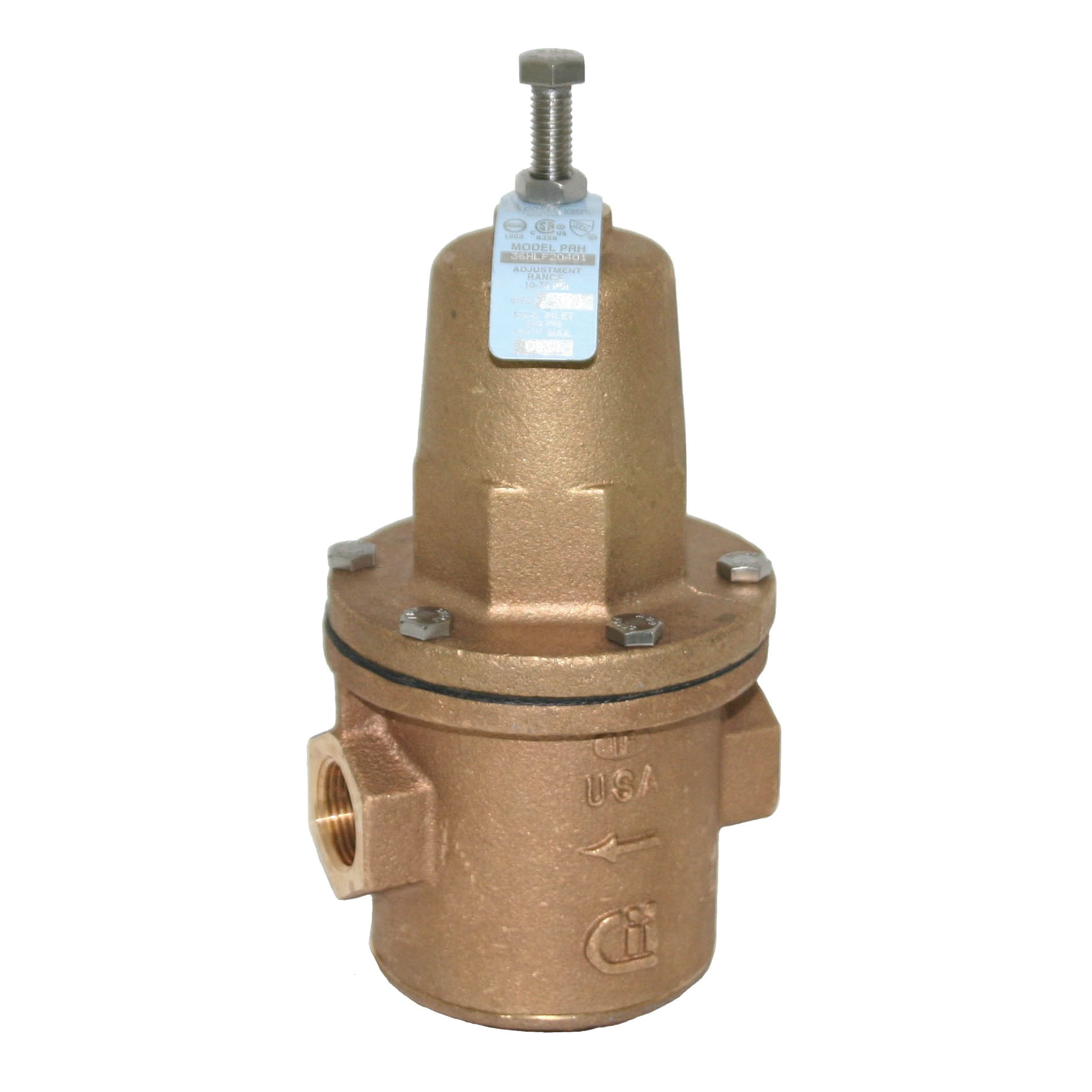

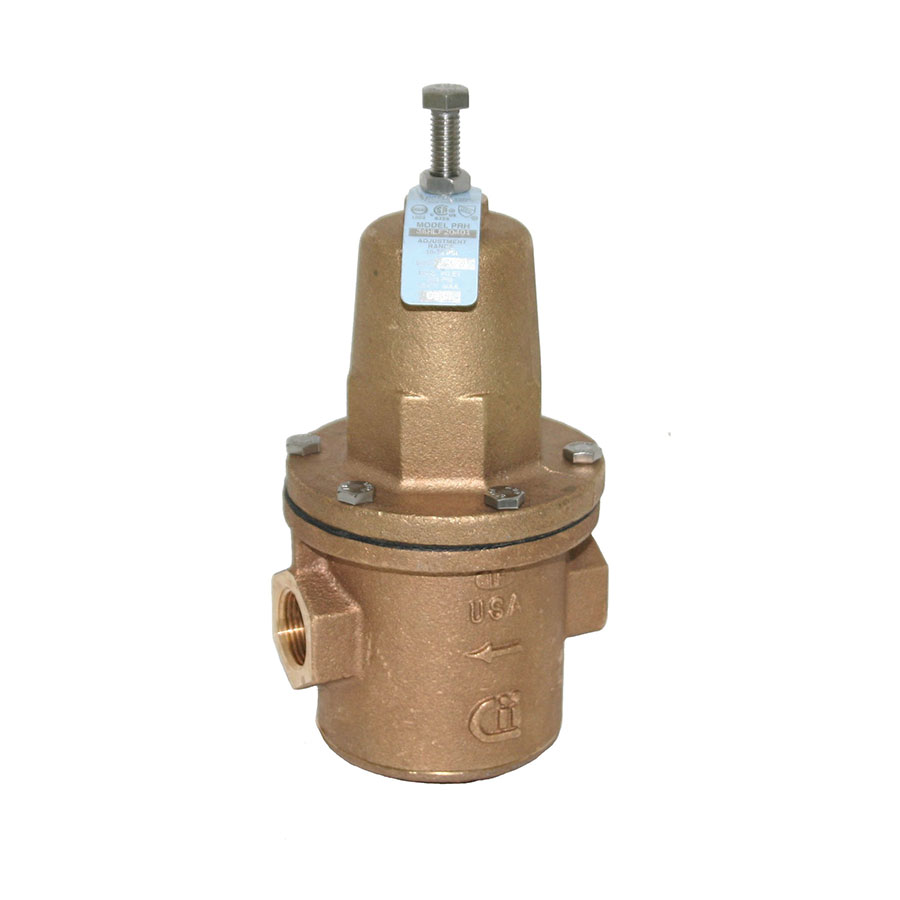

Apollo™ 36HLF20302 Direct Acting High Capacity Pressure Reducing Valve, 1/2 in, FNPT, 10 to 35 psig, Bronze Body, Domestic
CBPN:247038
UPC:670750751332
MPN:36HLF20302
Price:
$393.68 / EA
Availability Information
Prop 65:
DESCRIPTION
Apollo™ Pressure Reducing Valve, Lead Free Direct Acting High Capacity, Series: 36HLF, 1/2 in Nominal, FNPT, 10 to 35 psig, 33 to 180 deg F, Media: Water, 4.12 in Inlet to Outlet Length, Bronze Body, EPDM Trim, Nitrile, 9-1/4 in H, Domestic
The Apollo™ PRH-LF Lead Free Pressure Reducing Valve (36HLF Series) is designed for commercial, industrial, and institutional applications to reduce incoming water pressure for protection of plumbing system components and to reduce water consumption. The valve is made with proven ASTM grade Lead Free materials. The PRH-LF provides high capacity flow with low pressure drop. It is designed with an integral by-pass relief to protect against thermal expansion downstream. The bottom access enables easy in-line cleaning or seat replacement.
Apollo™ 36HLF20302 Direct Acting High Capacity Pressure Reducing Valve, 1/2 in, FNPT, 10 to 35 psig, Bronze Body, Domestic
CBPN:247038
MPN:36HLF20302
UPC:670750751332
Price:
$393.68 / EA
Availability Information
Prop 65:
DESCRIPTION
Apollo™ Pressure Reducing Valve, Lead Free Direct Acting High Capacity, Series: 36HLF, 1/2 in Nominal, FNPT, 10 to 35 psig, 33 to 180 deg F, Media: Water, 4.12 in Inlet to Outlet Length, Bronze Body, EPDM Trim, Nitrile, 9-1/4 in H, Domestic
The Apollo™ PRH-LF Lead Free Pressure Reducing Valve (36HLF Series) is designed for commercial, industrial, and institutional applications to reduce incoming water pressure for protection of plumbing system components and to reduce water consumption. The valve is made with proven ASTM grade Lead Free materials. The PRH-LF provides high capacity flow with low pressure drop. It is designed with an integral by-pass relief to protect against thermal expansion downstream. The bottom access enables easy in-line cleaning or seat replacement.
Specifications
Brand: Apollo™
Body Material: Bronze
Domestic/Import: Domestic
End Style: FNPT
Nominal Size: 1/2 in
Pressure Range: 10 to 35 psig
Series: 36HLF
Temperature Rating: 33 to 180 deg F
Type: Direct Acting High Capacity
Dimensions: 9-1/4 in H
Media: Water
Softgoods Material: Nitrile
Trim Material: EPDM
Inlet to Outlet Length: 4.12 in
Item Features
- Dezincification resistant lead free bronze
- Standard
- Sealed spring cage for vault installations
- Ultra-high flow capacity
- Internal thermal expansion by-pass
- Standard factory setting 50 psi
- Three spring ranges cover 10 - 125 psi
- Stainless steel bolts and spring
- Nitrile O-ring
- EPDM seat disc
