Apollo™ 36HLF20003

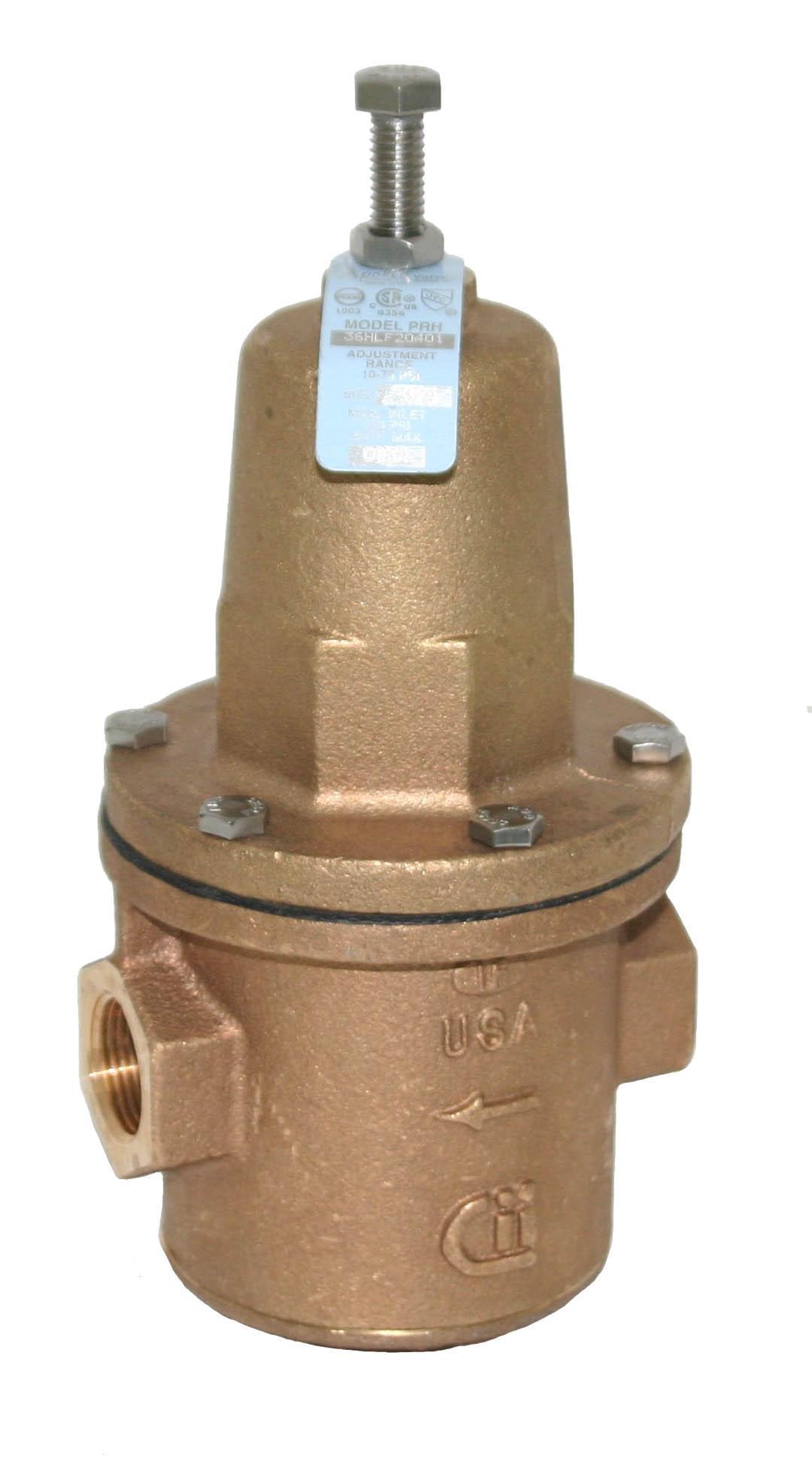

Apollo™ 36HLF-200-03 Direct Acting High Capacity Pressure Reducing Valve, 3 in, FNPT, 75 to 125 psig, Bronze Body, Domestic

CBPN: 247037

UPC:670750751189

MPN:36HLF20003

Price:
$4856.04 / EA
Oversize or overweight
This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.
Prop 65:

DESCRIPTION

Apollo™ 36HLF20003, Pressure Reducing Valve, Direct Acting High Capacity, Series: 36HLF, 3 in Nominal, FNPT End Style, 75 to 125 psi Pressure, 33 to 180 deg F, Media: Water, 10.37 in Inlet to Outlet Length, Bronze Body, EPDM Trim, Nitrile Softgoods, 19.12 in H Dimensions, Domestic

The Apollo™ PRH-LF Lead Free Pressure Reducing Valve (36HLF Series) is designed for commercial, industrial, and institutional applications to reduce incoming water pressure for protection of plumbing system components and to reduce water consumption. The valve is made with proven ASTM grade Lead Free materials. The PRH-LF provides high capacity flow with low pressure drop. It is designed with an integral by-pass relief to protect against thermal expansion downstream. The bottom access enables easy in-line cleaning or seat replacement.

Apollo™ 36HLF-200-03 Direct Acting High Capacity Pressure Reducing Valve, 3 in, FNPT, 75 to 125 psig, Bronze Body, Domestic

CBPN: 247037

MPN:36HLF20003

UPC:670750751189

Price:
$4856.04 / EA
Oversize or overweight
This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.

Prop 65:
Apollo Valve Logo

DESCRIPTION

Apollo™ 36HLF20003, Pressure Reducing Valve, Direct Acting High Capacity, Series: 36HLF, 3 in Nominal, FNPT End Style, 75 to 125 psi Pressure, 33 to 180 deg F, Media: Water, 10.37 in Inlet to Outlet Length, Bronze Body, EPDM Trim, Nitrile Softgoods, 19.12 in H Dimensions, Domestic

The Apollo™ PRH-LF Lead Free Pressure Reducing Valve (36HLF Series) is designed for commercial, industrial, and institutional applications to reduce incoming water pressure for protection of plumbing system components and to reduce water consumption. The valve is made with proven ASTM grade Lead Free materials. The PRH-LF provides high capacity flow with low pressure drop. It is designed with an integral by-pass relief to protect against thermal expansion downstream. The bottom access enables easy in-line cleaning or seat replacement.

Specifications

BrandApollo™
Weight83 lbs
Nominal Size3 in
End StyleFNPT
Pressure Range75 to 125 psi
Body MaterialBronze
Dimensions19.12 in H
Inlet to Outlet Length10.37 in
Manufacturer NameApollo Conbraco
MediaWater
Series36HLF
Softgoods MaterialNitrile
Temperature Rating33 to 180 deg F
Trim MaterialEPDM
TypeDirect Acting High Capacity
ApplicationCommercial, Industrial and Institutional
Warranty5 Years
Domestic/ImportDomestic
Country of OriginUS
Standards and ApprovalsASSE 1003 | CSA B356 | C89836 Lead-Free Bronze Body | cCSAus Certified | FDA Approved | NSF/ANSI 372 Lead-Free | UPC Listed | PROP65: Cancer and Reproductive Harm

Item Features

  • Dezincification resistant lead free bronze
  • Sealed spring cage for vault installations
  • Ultra-high flow capacity
  • Internal thermal expansion by-pass
  • Standard factory setting 50 psi
  • Three spring ranges cover 10 - 125 psi
  • Stainless steel bolts and spring
  • Nitrile O-ring
  • EPDM seat disc
  • Standard
