Apollo™ 36H20601

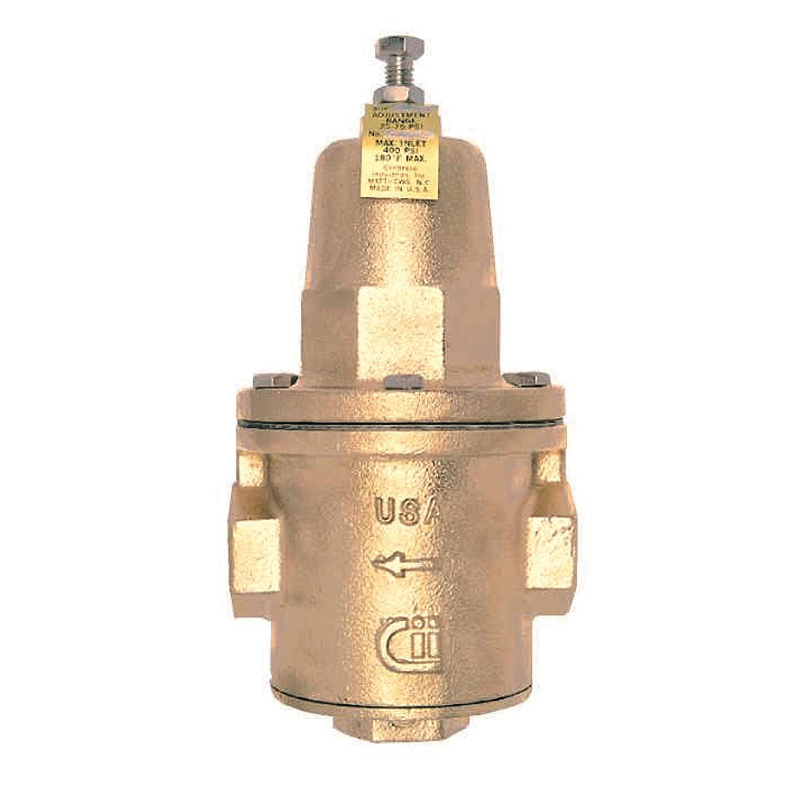

Apollo™ 36H-206-01 Pressure Reducing Valve, 1-1/4 in, FNPT, 25 to 75 psig, Bronze Body, Domestic

CBPN: 151671

UPC:670750821677

MPN:36H20601

Price:
$1571.49 / EA
Prop 65:

DESCRIPTION

Apollo™ 36H20601, Pressure Reducing Valve, Series: 36H, 1-1/4 in Nominal, FNPT End Style, 25 to 75 psi Pressure, 33 to 180 deg F, Media: Water, 6.19 in Inlet to Outlet Length, Bronze Body, EPDM Trim, Nitrile Softgoods, 13.2 in H Dimensions, Domestic

Apollo™ PRH (36H Series) Pressure Reducing Valves are designed for commercial, industrial, and institutional applications to reduce incoming water pressure for protection of plumbing system components and to reduce water consumption. The valves are made with proven ASTM grade bronze and stainless steel materials. The PRH provides high capacity flow with low pressure drop. It is designed with an integral by-pass relief to protect against thermal expansion downstream. The bottom access enables easy in-line cleaning or seat replacement.

Apollo™ 36H-206-01 Pressure Reducing Valve, 1-1/4 in, FNPT, 25 to 75 psig, Bronze Body, Domestic

CBPN: 151671

MPN:36H20601

UPC:670750821677

Price:
$1571.49 / EA

Prop 65:
Apollo Valve Logo

DESCRIPTION

Apollo™ 36H20601, Pressure Reducing Valve, Series: 36H, 1-1/4 in Nominal, FNPT End Style, 25 to 75 psi Pressure, 33 to 180 deg F, Media: Water, 6.19 in Inlet to Outlet Length, Bronze Body, EPDM Trim, Nitrile Softgoods, 13.2 in H Dimensions, Domestic

Apollo™ PRH (36H Series) Pressure Reducing Valves are designed for commercial, industrial, and institutional applications to reduce incoming water pressure for protection of plumbing system components and to reduce water consumption. The valves are made with proven ASTM grade bronze and stainless steel materials. The PRH provides high capacity flow with low pressure drop. It is designed with an integral by-pass relief to protect against thermal expansion downstream. The bottom access enables easy in-line cleaning or seat replacement.

Specifications

BrandApollo™
Weight24 lbs
Nominal Size1-1/4 in
End StyleFNPT
Pressure Range25 to 75 psi
Body MaterialBronze
Dimensions13.2 in H
Inlet to Outlet Length6.19 in
Manufacturer NameApollo Conbraco
MediaWater
Series36H
Softgoods MaterialNitrile
Temperature Rating33 to 180 deg F
Trim MaterialEPDM
ApplicationCommercial, Industrial and Institutional
Warranty5 Years
Domestic/ImportDomestic
Country of OriginUS
Standards and ApprovalsASSE 1003 | CSA B356 | UPC Listed | cCSAus Listed | ASTM B584 Body | FDA approved Seat Disc/O-Ring | PROP65: Cancer and Reproductive Harm

Item Features

  • Sealed spring cage for vault installations
  • Ultra-high flow capacity
  • Internal thermal expansion by-pass
  • Stainless steel bolts and spring
  • Nitrile O-ring
  • EPDM seat disc
  • Standard
