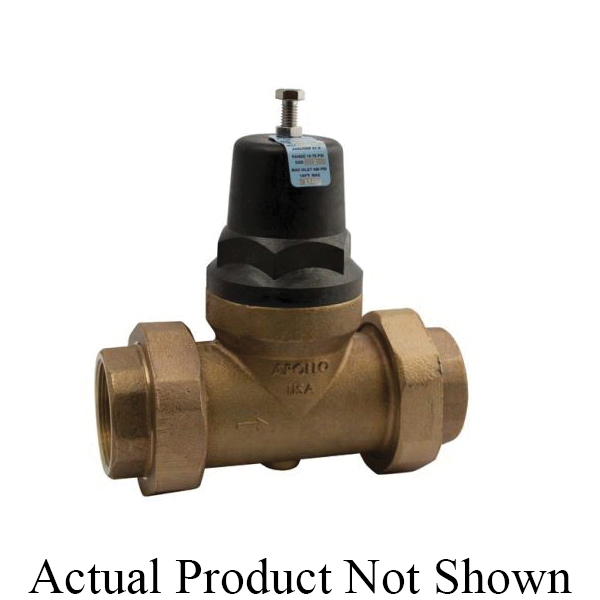

Apollo™ 36ELF11801T 36ELF Pressure Reducing Valve, 2 in Nominal, FNPT Union x FNPT End Style, 15 to 75 psi Pressure, Bronze Body, Domestic
CBPN: 233972
UPC:670750102745
MPN:36ELF11801T
DESCRIPTION
Apollo™ 36ELF11801T, Pressure Reducing Valve, Series: 36ELF, 2 in Nominal, Single Union x FNPT End Style, 15 to 75 psi Pressure, 33 to 180 deg F, Media: Water, 8.36 in Inlet to Outlet Length, Bronze Body, EPDM Trim, 10 in H x 3.38 in W Dimensions, Domestic
The new large diameter Apollo™ Lead Free Pressure Reducing Valve Model PRE (36ELF Series) is designed to conserve water and protect water distribution systems by automatically reducing elevated supply pressures. The dezincification resistant bronze body, stainless steel adjusting screw and dielectric polymer cage provide maximum corrosion resistance. Designed for easy in-line servicing with simple cartridge removal.
Apollo™ 36ELF11801T 36ELF Pressure Reducing Valve, 2 in Nominal, FNPT Union x FNPT End Style, 15 to 75 psi Pressure, Bronze Body, Domestic
CBPN: 233972
MPN:36ELF11801T
UPC:670750102745
DESCRIPTION
Apollo™ 36ELF11801T, Pressure Reducing Valve, Series: 36ELF, 2 in Nominal, Single Union x FNPT End Style, 15 to 75 psi Pressure, 33 to 180 deg F, Media: Water, 8.36 in Inlet to Outlet Length, Bronze Body, EPDM Trim, 10 in H x 3.38 in W Dimensions, Domestic
The new large diameter Apollo™ Lead Free Pressure Reducing Valve Model PRE (36ELF Series) is designed to conserve water and protect water distribution systems by automatically reducing elevated supply pressures. The dezincification resistant bronze body, stainless steel adjusting screw and dielectric polymer cage provide maximum corrosion resistance. Designed for easy in-line servicing with simple cartridge removal.
Specifications
Item Features
- Balanced piston design
- Stainless steel adjusting screw and nut
- Sealed cage for vault installations
- Built-in thermal expansion by-pass
- Large area integral stainless steel strainer
- Modular seat disc and strainer cartridge
- High flow/high efficiency design
- Factory tested and preset at 60 psi
- EPDM O-ring
- EPDM seat disc
- Without gauge
