Apollo™ 36ELF11703T

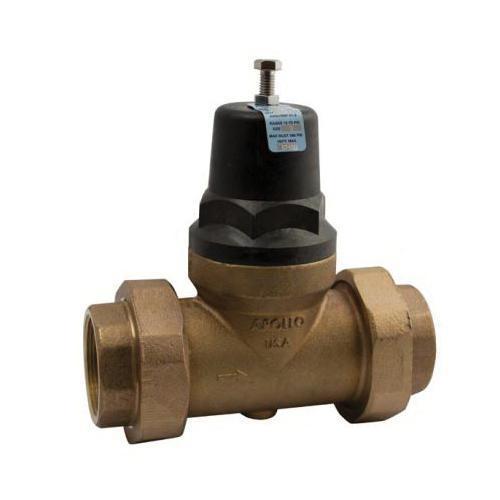

Apollo™ 36ELF11703T Pressure Reducing Valve, 1-1/2 in Nominal, Single Union x FNPT End Style, 75 to 150 psig Pressure, Bronze Body, Domestic

CBPN:250564

UPC:670750692796

MPN:36ELF11703T

Price:
$471.95
Availability Information
Prop 65:

DESCRIPTION

Apollo™ Pressure Reducing Valve, Series: 36ELF, 1-1/2 in Nominal, Single Union x FNPT End Style, 75 to 150 psig Pressure, 33 to 180 deg F, Media: Water, 8.1 in Inlet to Outlet Length, Bronze Body, EPDM Trim, EPDM Softgoods, 3-3/8 in D x 10 in H Dimensions, Domestic

The new large diameter Apollo™ 36ELF series lead free Pressure Reducing Valve is designed to conserve water and protect water distribution systems by automatically reducing elevated supply pressures. The dezincification resistant bronze body, stainless steel adjusting screw and dielectric polymer cage provide maximum corrosion resistance. Designed for easy in-line servicing with simple cartridge removal.

Apollo™ 36ELF11703T Pressure Reducing Valve, 1-1/2 in Nominal, Single Union x FNPT End Style, 75 to 150 psig Pressure, Bronze Body, Domestic

CBPN:250564

MPN:36ELF11703T

UPC:670750692796

Price:
$471.95
Availability Information

Prop 65:
Apollo Valve Logo

DESCRIPTION

Apollo™ Pressure Reducing Valve, Series: 36ELF, 1-1/2 in Nominal, Single Union x FNPT End Style, 75 to 150 psig Pressure, 33 to 180 deg F, Media: Water, 8.1 in Inlet to Outlet Length, Bronze Body, EPDM Trim, EPDM Softgoods, 3-3/8 in D x 10 in H Dimensions, Domestic

The new large diameter Apollo™ 36ELF series lead free Pressure Reducing Valve is designed to conserve water and protect water distribution systems by automatically reducing elevated supply pressures. The dezincification resistant bronze body, stainless steel adjusting screw and dielectric polymer cage provide maximum corrosion resistance. Designed for easy in-line servicing with simple cartridge removal.

Specifications

BrandApollo™
Body MaterialBronze
Domestic/ImportDomestic
End StyleSingle Union x FNPT
Nominal Size1-1/2 in
Pressure Range75 to 150 psig
Series36ELF
Temperature Rating33 to 180 deg F
Dimensions3-3/8 in D x 10 in H
MediaWater
Softgoods MaterialEPDM
Trim MaterialEPDM
Inlet to Outlet Length8.1 in

Item Features

  • Lead free direct acting cartridge style regulator designed for maximum economy and efficiency
  • Without gauge
  • Balanced piston design
  • Stainless steel adjusting screw and nut
  • Sealed cage for vault installations
  • Built-in thermal expansion bypass
  • Large area integral stainless steel strainer
  • Modular seat disc and strainer cartridge
  • High flow and high efficiency design
  • Factory tested and preset at 60 psi
