Apollo™ 36ELF11701T

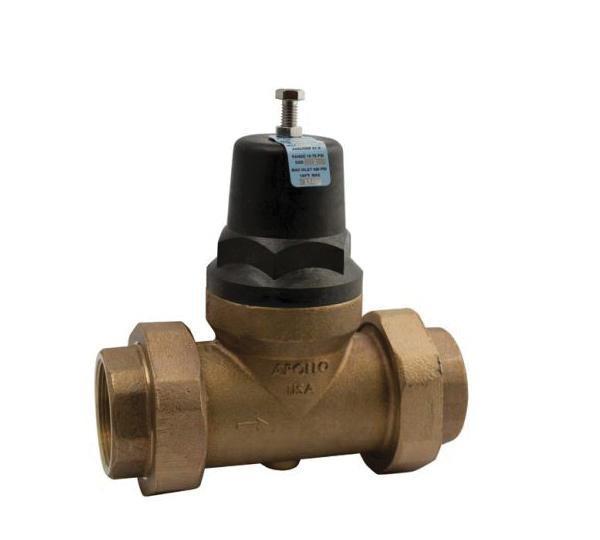

Apollo™ 36ELF11701T 36ELF Pressure Reducing Valve, 1-1/2 in Nominal, FNPT Union x FNPT End Style, 15 to 75 psi Pressure, Bronze Body, Domestic

CBPN: 248756

UPC:670750102677

MPN:36ELF11701T

Price:
$691.48 / EA
Prop 65:

DESCRIPTION

Apollo™ 36ELF11701T, Pressure Reducing Valve, Series: 36ELF, 1-1/2 in Nominal, Single Union x FNPT End Style, 15 to 75 psi Pressure, 33 to 180 deg F, Media: Water, 8.1 in Inlet to Outlet Length, Bronze Body, EPDM Trim, 10 in H x 3.38 in W Dimensions, Domestic

The new large diameter Apollo™ Lead Free Pressure Reducing Valve Model PRE (36ELF Series) is designed to conserve water and protect water distribution systems by automatically reducing elevated supply pressures. The dezincification resistant bronze body, stainless steel adjusting screw and dielectric polymer cage provide maximum corrosion resistance. Designed for easy in-line servicing with simple cartridge removal.

Apollo™ 36ELF11701T 36ELF Pressure Reducing Valve, 1-1/2 in Nominal, FNPT Union x FNPT End Style, 15 to 75 psi Pressure, Bronze Body, Domestic

CBPN: 248756

MPN:36ELF11701T

UPC:670750102677

Price:
$691.48 / EA

Prop 65:
Apollo Valve Logo

DESCRIPTION

Apollo™ 36ELF11701T, Pressure Reducing Valve, Series: 36ELF, 1-1/2 in Nominal, Single Union x FNPT End Style, 15 to 75 psi Pressure, 33 to 180 deg F, Media: Water, 8.1 in Inlet to Outlet Length, Bronze Body, EPDM Trim, 10 in H x 3.38 in W Dimensions, Domestic

The new large diameter Apollo™ Lead Free Pressure Reducing Valve Model PRE (36ELF Series) is designed to conserve water and protect water distribution systems by automatically reducing elevated supply pressures. The dezincification resistant bronze body, stainless steel adjusting screw and dielectric polymer cage provide maximum corrosion resistance. Designed for easy in-line servicing with simple cartridge removal.

Specifications

BrandApollo™
Weight7.5 lbs
Nominal Size1-1/2 in
End StyleFNPT Union x FNPT
Pressure Range15 to 75 psi
Body MaterialBronze
Dimensions10 in H x 3.38 in W
Inlet to Outlet Length8.1 in
Manufacturer NameApollo Conbraco
MediaWater
Series36ELF
Softgoods MaterialEPDM
Temperature Rating33 to 180 deg F
Trim MaterialEPDM
ApplicationResidential and Commercial Applications
Warranty5 Years
Domestic/ImportDomestic
Country of OriginUS
Standards and ApprovalsASTM B16 Brass Union Nut | ASTM A228 Stainless Steel Spring | ASSE 1003 | CSA B356 | IAPMO/UPC Listed | NSF/ANSI 372 Lead-Free | cCSAus Certified | NSF/ANSI 61 Water Quality | UNS C27451 Lead-Free Bronze Tailpiece | UNS 89836 Lead-Free Bronze Body | PROP65: Cancer and Reproductive Harm

Item Features

  • Balanced piston design
  • Stainless steel adjusting screw and nut
  • Sealed cage for vault installations
  • Built-in thermal expansion by-pass
  • Large area integral stainless steel strainer
  • Modular seat disc and strainer cartridge
  • High flow/high efficiency design
  • Factory tested and preset at 60 psi
  • EPDM O-ring
  • EPDM seat disc
  • Without gauge
