Apollo™ 36ELF11603T

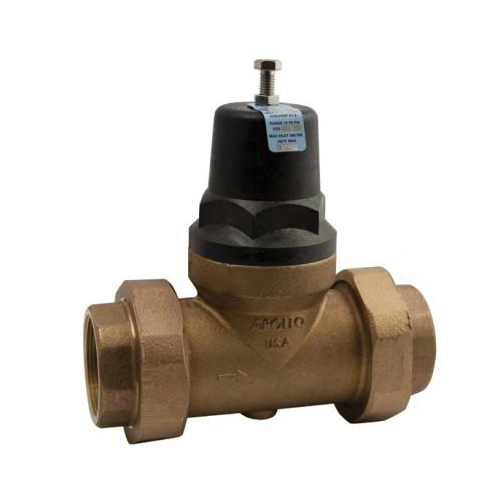

Apollo™ 36ELF11603T Pressure Reducing Valve, 1-1/4 in Nominal, FNPT Union x FNPT End Style, 75 to 150 psig Pressure, Bronze Body, Domestic

CBPN: 250563

MPN:36ELF11603T

Price:
$625.15 / EA
Prop 65:

DESCRIPTION

Apollo™ Pressure Reducing Valve, Series: 36ELF, 1-1/4 in Nominal, Single Union x FNPT End Style, 75 to 150 psig Pressure, 33 to 180 deg F, Media: Water, 7.74 in Inlet to Outlet Length, Bronze Body, EPDM Trim, EPDM Softgoods, 3.38 in D x 10 in H Dimensions, Domestic

The new large diameter Apollo™ 36ELF Series Lead Free Pressure Reducing Valve is designed to conserve water and protect water distribution systems by automatically reducing elevated supply pressures. The dezincification resistant bronze body, stainless steel adjusting screw and dielectric polymer cage provide maximum corrosion resistance. Designed for easy in-line servicing with simple cartridge removal.

Apollo™ 36ELF11603T Pressure Reducing Valve, 1-1/4 in Nominal, FNPT Union x FNPT End Style, 75 to 150 psig Pressure, Bronze Body, Domestic

CBPN: 250563

MPN:36ELF11603T

Price:
$625.15 / EA

Prop 65:
Apollo Valve Logo

DESCRIPTION

Apollo™ Pressure Reducing Valve, Series: 36ELF, 1-1/4 in Nominal, Single Union x FNPT End Style, 75 to 150 psig Pressure, 33 to 180 deg F, Media: Water, 7.74 in Inlet to Outlet Length, Bronze Body, EPDM Trim, EPDM Softgoods, 3.38 in D x 10 in H Dimensions, Domestic

The new large diameter Apollo™ 36ELF Series Lead Free Pressure Reducing Valve is designed to conserve water and protect water distribution systems by automatically reducing elevated supply pressures. The dezincification resistant bronze body, stainless steel adjusting screw and dielectric polymer cage provide maximum corrosion resistance. Designed for easy in-line servicing with simple cartridge removal.

Specifications

BrandApollo™
Weight7.22 lbs
Nominal Size1-1/4 in
End StyleFNPT Union x FNPT
Pressure Range75 to 150 psig
Body MaterialBronze
Dimensions3.38 in D x 10 in H
Inlet to Outlet Length7.74 in
Manufacturer NameApollo Conbraco
MediaWater
Series36ELF
Softgoods MaterialEPDM
Temperature Rating33 to 180 deg F
Trim MaterialEPDM
ApplicationResidential and Commercial Applications
Warranty5 years
Domestic/ImportDomestic
Country of OriginUS
Standards and ApprovalsARRA Compliant | ASSE 1003 | cCSAus Certified | CSA Certified File No. B356 | Federal Public Law 111-380 | IAPMO/UPC Listed | NSF/ANSI 372 Lead-Free | NSF/ANSI/CAN 61 Water Quality | PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Item Features

  • Lead free direct acting cartridge style regulator designed for maximum economy and efficiency
  • Balanced piston design
  • Stainless steel adjusting screw and nut
  • Sealed cage for vault installations
  • Built-in thermal expansion bypass
  • Large area integral stainless steel strainer
  • Modular seat disc and strainer cartridge
  • High flow and high efficiency design
  • Factory tested and preset at 60 psi
  • Without gauge
