Apollo™ 34C-105-01

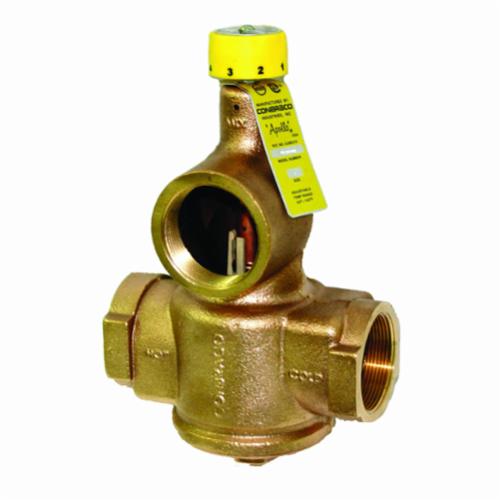

Apollo™ 34C-105-01, MVC-1 Thermostatic High Capacity Mixing Valve, 1 in, FNPT, 150 psig, 1 gpm, Bronze Body, Domestic

CBPN:178469

UPC:670750329548

MPN:34C-105-01

Price:
$582.34 / EA
Availability Information

DESCRIPTION

Apollo™ High Capacity Mixing Valve, Thermostatic, Series: 34C, 1 in Nominal, FNPT, 150 psig, 200 deg F, 1 gpm Flow, Media: Water, 5.22 in Inlet to Outlet Length, Bronze Body, Brass Trim, 6.77 in H, Domestic

The Apollo® Model MVC (34C series) are ASSE 1017 approved thermostatic mixing valves designed for high capacity commercial and institutional point of source applications. Featuring ease of maintenance and best in class flow rates, they provide reliable temperature control for large hot water distribution and hydronic heating systems.

Apollo™ 34C-105-01, MVC-1 Thermostatic High Capacity Mixing Valve, 1 in, FNPT, 150 psig, 1 gpm, Bronze Body, Domestic

CBPN:178469

MPN:34C-105-01

UPC:670750329548

Price:
$582.34 / EA
Availability Information

Apollo Valve Logo

DESCRIPTION

Apollo™ High Capacity Mixing Valve, Thermostatic, Series: 34C, 1 in Nominal, FNPT, 150 psig, 200 deg F, 1 gpm Flow, Media: Water, 5.22 in Inlet to Outlet Length, Bronze Body, Brass Trim, 6.77 in H, Domestic

The Apollo® Model MVC (34C series) are ASSE 1017 approved thermostatic mixing valves designed for high capacity commercial and institutional point of source applications. Featuring ease of maintenance and best in class flow rates, they provide reliable temperature control for large hot water distribution and hydronic heating systems.

Specifications

BrandApollo™
Body MaterialBronze
Domestic/ImportDomestic
End StyleFNPT
Nominal Size1 in
Pressure Rating150 psig
Series34C
Temperature Rating200 deg F
TypeThermostatic
Dimensions6.77 in H
Flow Capacity1 gpm
MediaWater
Trim MaterialBrass
Inlet to Outlet Length5.22 in

Item Features

  • Threaded connections
  • Installs easily on heating source
  • Patented design for easy in-line maintenance
  • Thermostat copper/wax filled
  • Shuttle cartridge glass filled Noryl™
  • Stainless steel spring
  • When the valve is installed at or near hot water source with recirculated tempered water with a continuously operating pump
  • 90 to 140 deg F
