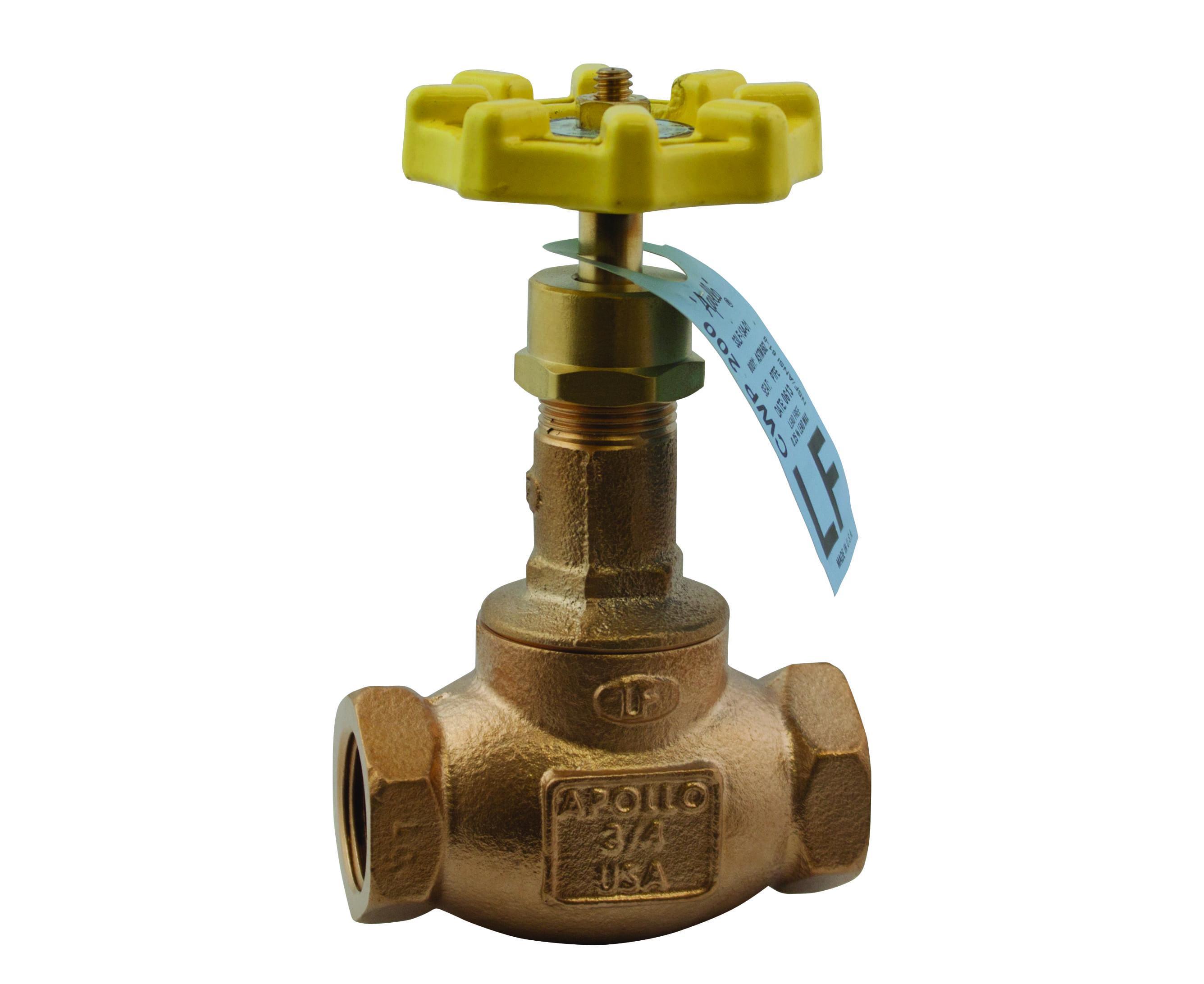

Apollo™ 33LF-134-01 33LF, 120T34LF Lead Free Globe Valve, 3/4 in Nominal, FNPT End Style, 125 lb, Lead Free Bronze Body, Handwheel Actuator, Domestic
CBPN: 182438
UPC:670750686832
MPN:33LF13401
Price:
$221.50 / EA
Prop 65:
DESCRIPTION
Apollo™ 33LF13401, Globe Valve, Lead Free, Series: 120T-LF, 3/4 in Nominal, NPT End Style, 200 psi CWP Pressure, 125 lb Pressure Class, -20 to 406 deg F, 7.4 gpm Flow Rate, Media: Water, Handwheel Actuator, 4.75 in Open Top to Inlet Center, Bronze Body, PTFE/Brass Trim, Graphite/Grafoil Softgoods, 4.75 in H x 3.2 in L Dimensions, Domestic
The lead free Apollo model 120T-LF (33LF series) globe valve provides a reliable, long lasting made in the USA alternative to globally sourced multi-turn valves for potable water service. These valves are cast, machined, assembled and tested in South Carolina using proven ASTM quality materials.
Apollo™ 33LF-134-01 33LF, 120T34LF Lead Free Globe Valve, 3/4 in Nominal, FNPT End Style, 125 lb, Lead Free Bronze Body, Handwheel Actuator, Domestic
CBPN: 182438
MPN:33LF13401
UPC:670750686832
Price:
$221.50 / EA
Prop 65:
DESCRIPTION
Apollo™ 33LF13401, Globe Valve, Lead Free, Series: 120T-LF, 3/4 in Nominal, NPT End Style, 200 psi CWP Pressure, 125 lb Pressure Class, -20 to 406 deg F, 7.4 gpm Flow Rate, Media: Water, Handwheel Actuator, 4.75 in Open Top to Inlet Center, Bronze Body, PTFE/Brass Trim, Graphite/Grafoil Softgoods, 4.75 in H x 3.2 in L Dimensions, Domestic
The lead free Apollo model 120T-LF (33LF series) globe valve provides a reliable, long lasting made in the USA alternative to globally sourced multi-turn valves for potable water service. These valves are cast, machined, assembled and tested in South Carolina using proven ASTM quality materials.
Specifications
Brand: Apollo™
Weight: 1.96 lbs
Nominal Size: 3/4 in
End Style: FNPT
Pressure Class: 125 lb
Body Material: Lead Free Bronze
Actuator Type: Handwheel
Dimensions: 4.75 in H x 3.2 in L
Flow Rate: 7.4 gpm
Manufacturer Name: Apollo Conbraco
Media: Water
Pressure Rating: 200 psi CWP
Series: 120T-LF
Softgoods Material: Graphite/Grafoil
Temperature Rating: -20 to 406 deg F
Top to Inlet Center: 4.75 in Open
Trim Material: PTFE/Brass
Type: Lead Free
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ARRA Compliant | MSS SP-80 | MSS SP-139 | ANSI 61-8 2010 Annex F and G | NSF 372 | ASME B1.20.1 | PROP65: Cancer and Reproductive Harm
Item Features
- Optimum flow capacity
- Adjustable graphite stem packing
- Malleable iron rugged hand wheel
- Screw-in bonnet
- Back seat protection
