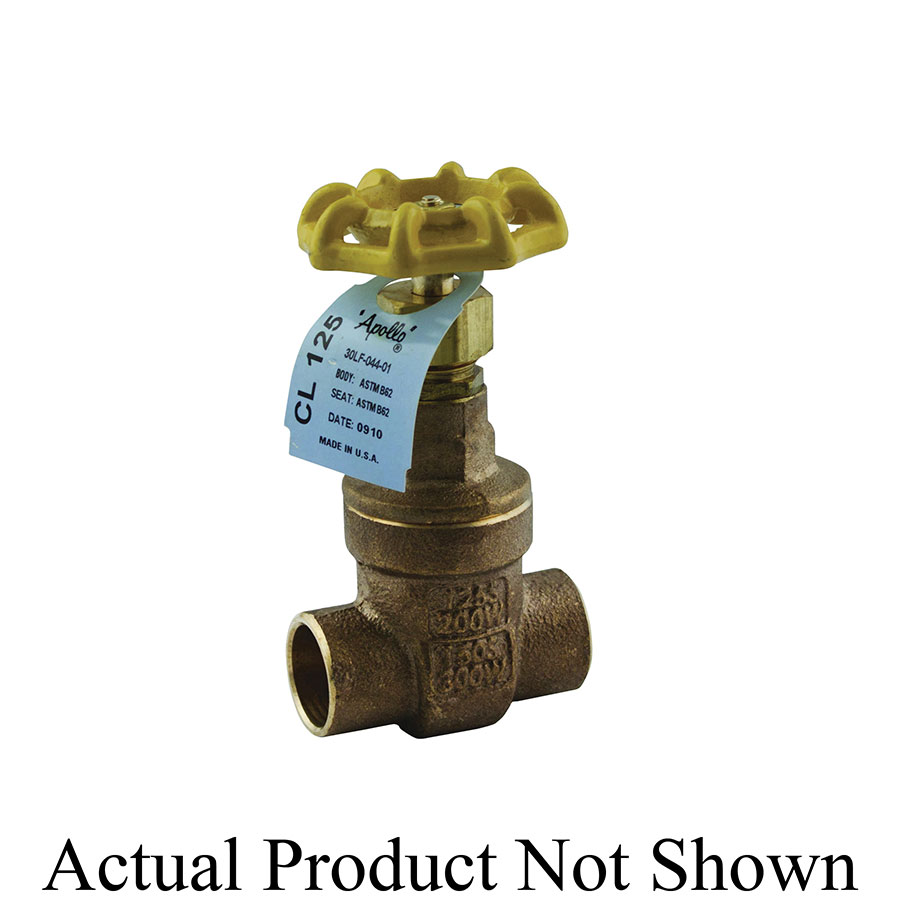

Apollo™ 30LF04701 102S-LF, 102S112LF Non-Rising Stem Gate Valve, 1-1/2 in Nominal, Solder End Style, 125 lb, Bronze Body, Hand Wheel Actuator, Domestic
CBPN:245791
UPC:670750686955
MPN:30LF04701
Price:
$166.94 / EA
Availability Information
Prop 65:
DESCRIPTION
Apollo™ Gate Valve, Non-Rising Stem, Series: 102S-LF, 1-1/2 in Nominal, Solder, 200 psi CWP, 125 lb, -20 to 406 deg F, 119 gpm, Full Port, Media: Water, Hand Wheel Actuator, 6.02 in Open Top to Inlet Center, Bronze Body, Brass/Bronze Trim, Grafoil®, 3.44 in L, Domestic
The lead free Apollo™ Model 102S-LF (30LF Series) Gate Valve provides a "Made in the USA" alternative to globally sourced multi-turnvalves for potable water service. These valves are cast, machined, assembled, and tested in South Carolina using proven ASTM quality lead free materials.
Apollo™ 30LF04701 102S-LF, 102S112LF Non-Rising Stem Gate Valve, 1-1/2 in Nominal, Solder End Style, 125 lb, Bronze Body, Hand Wheel Actuator, Domestic
CBPN:245791
MPN:30LF04701
UPC:670750686955
Price:
$166.94 / EA
Availability Information
Prop 65:
DESCRIPTION
Apollo™ Gate Valve, Non-Rising Stem, Series: 102S-LF, 1-1/2 in Nominal, Solder, 200 psi CWP, 125 lb, -20 to 406 deg F, 119 gpm, Full Port, Media: Water, Hand Wheel Actuator, 6.02 in Open Top to Inlet Center, Bronze Body, Brass/Bronze Trim, Grafoil®, 3.44 in L, Domestic
The lead free Apollo™ Model 102S-LF (30LF Series) Gate Valve provides a "Made in the USA" alternative to globally sourced multi-turnvalves for potable water service. These valves are cast, machined, assembled, and tested in South Carolina using proven ASTM quality lead free materials.
Specifications
Brand: Apollo™
Body Material: Bronze
Domestic/Import: Domestic
End Style: Solder
Flow Rate: 119 gpm
Nominal Size: 1-1/2 in
Pressure Rating: 200 psi CWP
Series: 102S-LF
Temperature Rating: -20 to 406 deg F
Type: Non-Rising Stem
Actuator Type: Handwheel
Dimensions: 3.44 in L
Media: Water
Port Type: Full
Pressure Class: 125 lb
Softgoods Material: Grafoil®
Trim Material: Brass/Bronze
Top to Inlet Center: 6.02 in Open
Item Features
- Guided solid bronze disc wedge
- Adjustable graphite stem packing
- Screw-in bonnet
- Rugged malleable iron hand wheel
- Back seat protection
- The wetted surfaces of this product shall contain no more than 0.25% lead by weighted average
- Brass stem/bronze disc wedge
- Grafoil® packing
