Apollo™ 30LF04401

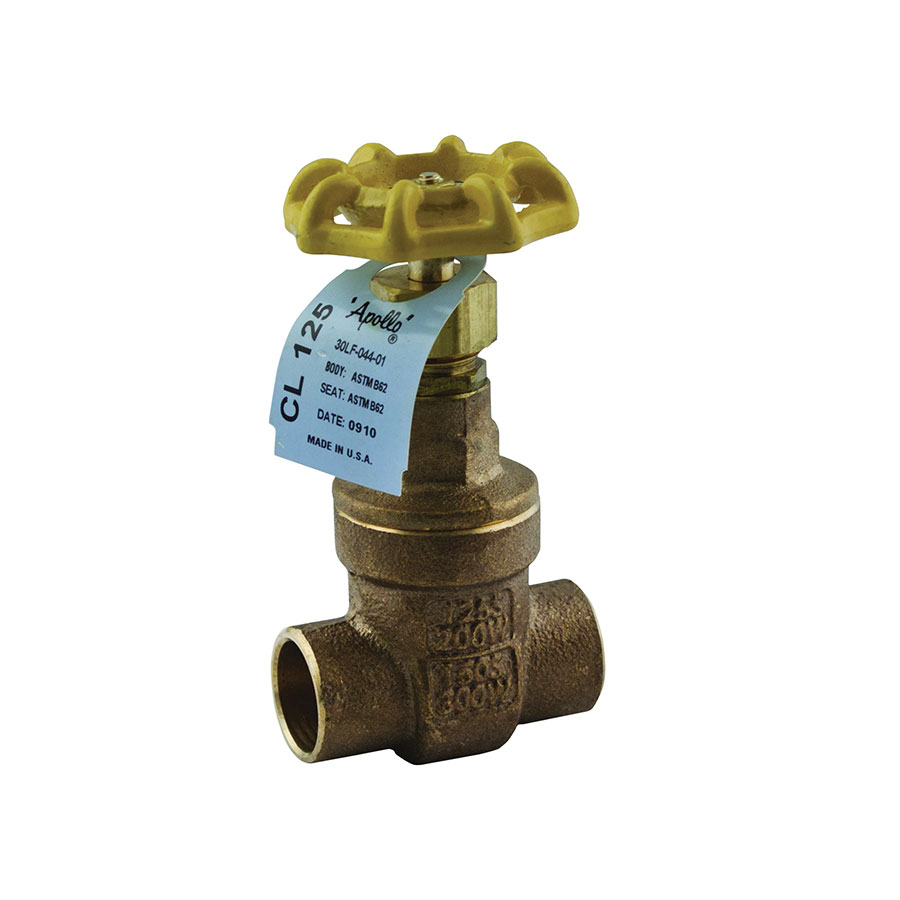

Apollo™ 30LF04401 102S-LF, 102S34LF Non-Rising Stem Gate Valve, 3/4 in Nominal, Solder End Style, 125 lb, Bronze Body, Hand Wheel Actuator, Domestic

CBPN:204611

UPC:670750616488

MPN:30LF04401

Price:
$69.09 / EA
Availability Information
Prop 65:

DESCRIPTION

Apollo™ Gate Valve, Non-Rising Stem, Series: 102S-LF, 3/4 in Nominal, Solder, 200 psi CWP, 125 lb, -20 to 406 deg F, 24 gpm, Full Port, Media: Water, Hand Wheel Actuator, 4.05 in Open Top to Inlet Center, Bronze Body, Brass/Bronze Trim, Grafoil®, 2.43 in L, Domestic

The lead free Apollo™ Model 102S-LF (30LF Series) Gate Valve provides a "Made in the USA" alternative to globally sourced multi-turnvalves for potable water service. These valves are cast, machined, assembled, and tested in South Carolina using proven ASTM quality lead free materials.

Apollo™ 30LF04401 102S-LF, 102S34LF Non-Rising Stem Gate Valve, 3/4 in Nominal, Solder End Style, 125 lb, Bronze Body, Hand Wheel Actuator, Domestic

CBPN:204611

MPN:30LF04401

UPC:670750616488

Price:
$69.09 / EA
Availability Information

Prop 65:
Apollo Valve Logo

DESCRIPTION

Apollo™ Gate Valve, Non-Rising Stem, Series: 102S-LF, 3/4 in Nominal, Solder, 200 psi CWP, 125 lb, -20 to 406 deg F, 24 gpm, Full Port, Media: Water, Hand Wheel Actuator, 4.05 in Open Top to Inlet Center, Bronze Body, Brass/Bronze Trim, Grafoil®, 2.43 in L, Domestic

The lead free Apollo™ Model 102S-LF (30LF Series) Gate Valve provides a "Made in the USA" alternative to globally sourced multi-turnvalves for potable water service. These valves are cast, machined, assembled, and tested in South Carolina using proven ASTM quality lead free materials.

Specifications

BrandApollo™
Body MaterialBronze
Domestic/ImportDomestic
End StyleSolder
Flow Rate24 gpm
Nominal Size3/4 in
Pressure Rating200 psi CWP
Series102S-LF
Temperature Rating-20 to 406 deg F
TypeNon-Rising Stem
Actuator TypeHandwheel
Dimensions2.43 in L
MediaWater
Port TypeFull
Pressure Class125 lb
Softgoods MaterialGrafoil®
Trim MaterialBrass/Bronze
Top to Inlet Center4.05 in Open
Weight1.13 lbs

Item Features

  • Guided solid bronze disc wedge
  • Adjustable graphite stem packing
  • Screw-in bonnet
  • Rugged malleable iron hand wheel
  • Back seat protection
  • The wetted surfaces of this product shall contain no more than 0.25% lead by weighted average
  • Brass stem/bronze disc wedge
  • Grafoil® packing
