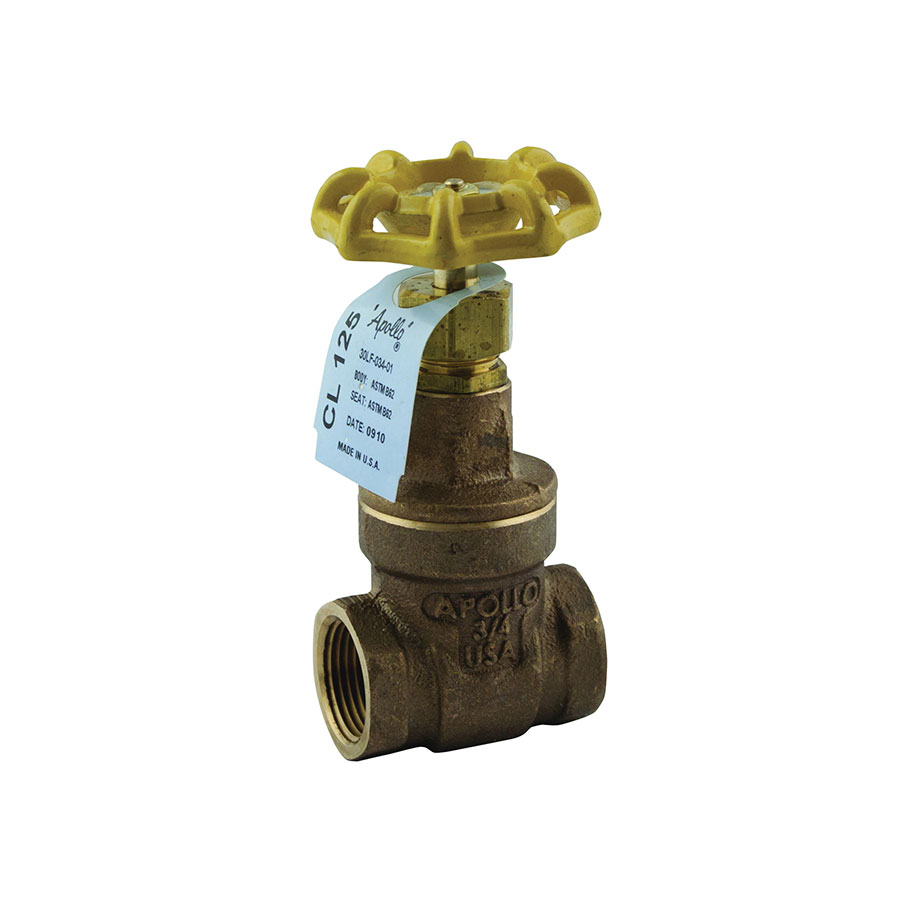

Apollo™ 30LF03701 102T-LF Non-Rising Stem Gate Valve, 1-1/2 in Nominal, FNPT End Style, 125 lb, Lead Free Bronze Body, Handwheel Actuator, Domestic
CBPN: 172856
UPC:670750686924
MPN:30LF03701
Price:
$279.22 / EA
Prop 65:
DESCRIPTION
Apollo™ Gate Valve, Non-Rising Stem, Series: 102T-LF, 1-1/2 in Nominal, FNPT End Style, 200 psi CWP/125 psi SWP Pressure, 125 lb Pressure Class, -20 to 406 deg F, 119 gpm Flow Rate, Full Port, Media: Water, Handwheel Actuator, 9.08 in Open Top to Inlet Center, Bronze Body, Brass/Bronze Trim, Grafoil® Softgoods, 2.88 in L Dimensions, Domestic
The lead free Apollo™ Model 102T-LF (30LF Series) Gate Valve provides a Made in the USA alternative to globally sourced multi-turn valves for potable water service. These valves are cast, machined, assembled, and tested in South Carolina using proven ASTM quality lead free materials.
Apollo™ 30LF03701 102T-LF Non-Rising Stem Gate Valve, 1-1/2 in Nominal, FNPT End Style, 125 lb, Lead Free Bronze Body, Handwheel Actuator, Domestic
CBPN: 172856
MPN:30LF03701
UPC:670750686924
Price:
$279.22 / EA
Prop 65:
DESCRIPTION
Apollo™ Gate Valve, Non-Rising Stem, Series: 102T-LF, 1-1/2 in Nominal, FNPT End Style, 200 psi CWP/125 psi SWP Pressure, 125 lb Pressure Class, -20 to 406 deg F, 119 gpm Flow Rate, Full Port, Media: Water, Handwheel Actuator, 9.08 in Open Top to Inlet Center, Bronze Body, Brass/Bronze Trim, Grafoil® Softgoods, 2.88 in L Dimensions, Domestic
The lead free Apollo™ Model 102T-LF (30LF Series) Gate Valve provides a Made in the USA alternative to globally sourced multi-turn valves for potable water service. These valves are cast, machined, assembled, and tested in South Carolina using proven ASTM quality lead free materials.
Specifications
Brand: Apollo™
Weight: 2.86 lbs
Nominal Size: 1-1/2 in
End Style: FNPT
Pressure Class: 125 lb
Body Material: Lead Free Bronze
Softgoods Material: Grafoil
Actuator Type: Handwheel
Dimensions: 2.88 in L
Flow Rate: 119 gpm
Manufacturer Name: Apollo Conbraco
Media: Water
Port Type: Full
Pressure Rating: 200 psi CWP
Series: 102T-LF
Temperature Rating: -20 to 406 deg F
Top to Inlet Center: 9.08 in Open
Trim Material: Brass/Bronze
Type: Non-Rising Stem
Application: Potable Water Service
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ARRA Compliant | ASME B1.20.1 | ASTM B584-C89836 Body/Disc Wedge | CSA B51 CRN 0C14667.5 | Federal Public Law 111-380 | MSS SP-80/139 | NSF/ANSI 61/372 | PROP65: Cancer and Reproductive Harm
Item Features
- Guided solid bronze disc wedge
- Adjustable graphite stem packing
- Screw-in bonnet
- Rugged malleable iron hand wheel
- Back seat protection
- 100% factory tested
- The wetted surfaces of this product shall contain no more than 0.25% lead by weighted average
- Brass stem/bronze disc wedge
