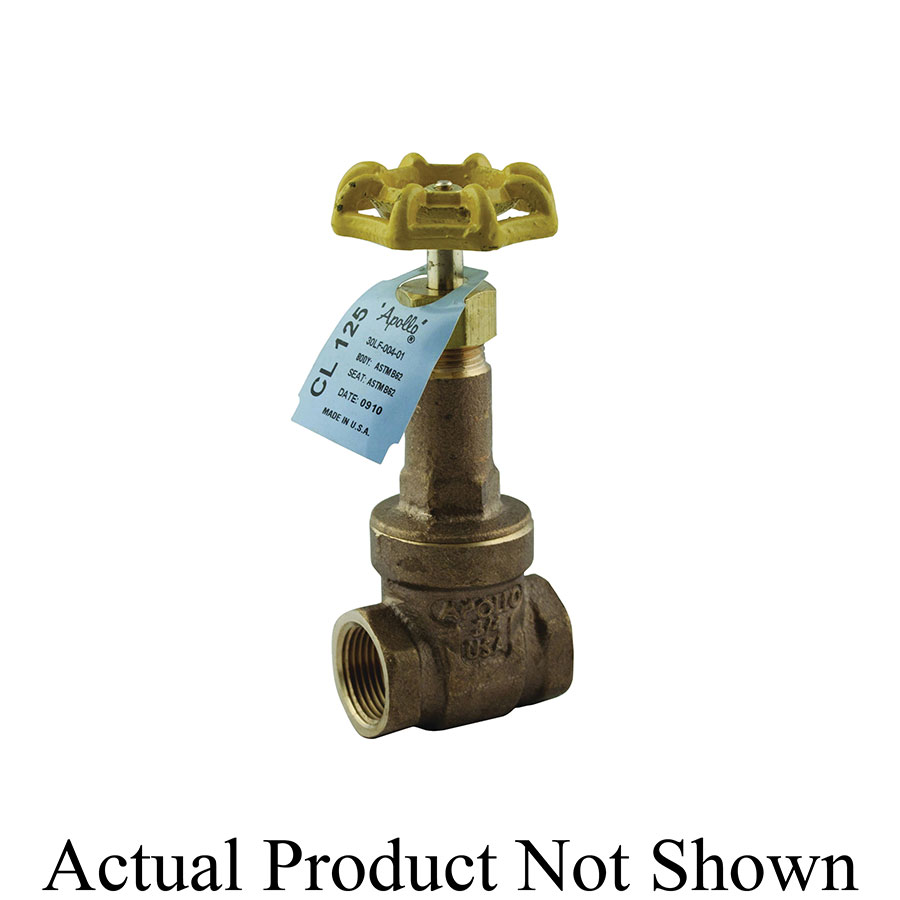

Apollo™ 30LF00601 101T-LF, 101T114LF Rising Stem Gate Valve, 1-1/4 in Nominal, NPT End Style, 125 lb, Bronze Body, Hand Wheel Actuator, Domestic
CBPN:191470
UPC:670750686894
MPN:30LF00601
Price:
$164.83 / EA
Prop 65:
DESCRIPTION
Apollo™ Gate Valve, Rising Stem, Series: 101T-LF, 1-1/4 in Nominal, NPT, 200 psi CWP/125 psi SWP, 125 lb, -20 to 406 deg F, 80 gpm, Full Port, Media: Water, Hand Wheel Actuator, 8.1 in Open Top to Inlet Center, Bronze Body, Brass/Bronze Trim, Grafoil®, 2.63 in L, Domestic
The lead free Apollo™ Model 101T-LF (30LF Series) Gate valve provides a "Made in the USA" alternative to globally sourced multi-turn valves for potable water service. These valves are cast, machined, assembled, and tested in South Carolina using proven ASTM quality lead free materials.
Apollo™ 30LF00601 101T-LF, 101T114LF Rising Stem Gate Valve, 1-1/4 in Nominal, NPT End Style, 125 lb, Bronze Body, Hand Wheel Actuator, Domestic
CBPN:191470
MPN:30LF00601
UPC:670750686894
Price:
$164.83 / EA
Prop 65:
DESCRIPTION
Apollo™ Gate Valve, Rising Stem, Series: 101T-LF, 1-1/4 in Nominal, NPT, 200 psi CWP/125 psi SWP, 125 lb, -20 to 406 deg F, 80 gpm, Full Port, Media: Water, Hand Wheel Actuator, 8.1 in Open Top to Inlet Center, Bronze Body, Brass/Bronze Trim, Grafoil®, 2.63 in L, Domestic
The lead free Apollo™ Model 101T-LF (30LF Series) Gate valve provides a "Made in the USA" alternative to globally sourced multi-turn valves for potable water service. These valves are cast, machined, assembled, and tested in South Carolina using proven ASTM quality lead free materials.
Specifications
Brand: Apollo™
Flow Rate: 80 gpm
Series: 101T-LF
Type: Rising Stem
Body Material: Bronze
Domestic/Import: Domestic
End Style: NPT
Nominal Size: 1-1/4 in
Pressure Rating: 200 psi CWP/125 psi SWP
Temperature Rating: -20 to 406 deg F
Actuator Type: Handwheel
Dimensions: 2.63 in L
Media: Water
Port Type: Full
Pressure Class: 125 lb
Softgoods Material: Grafoil®
Trim Material: Brass/Bronze
Top to Inlet Center: 8.1 in Open
Weight: 3.34 lbs
Item Features
- Guided solid bronze disc wedge
- Adjustable graphite stem packing
- Screw-in bonnet
- Rugged malleable iron hand wheel
- Back seat protection
- 100% factory tested
- The wetted surfaces of this product shall contain no more than 0.25% lead by weighted average
- Brass stem/bronze disc wedge
- Grafoil® packing
