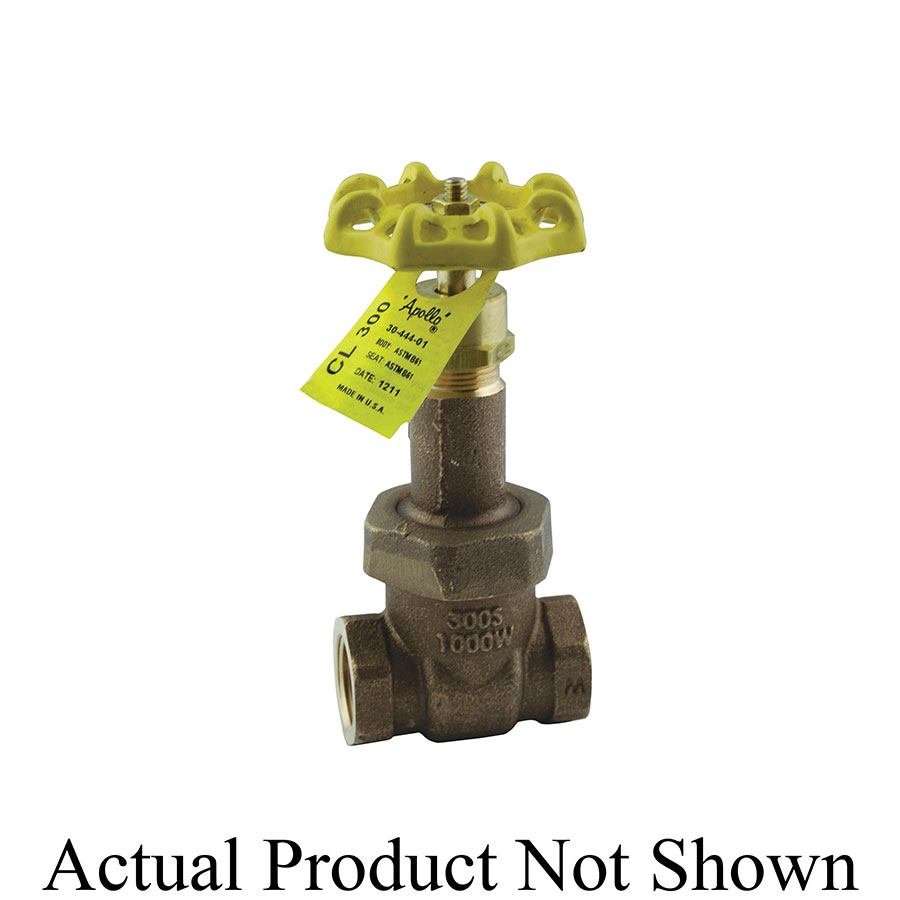

Apollo™ 3044601 111T Rising Stem Gate Valve, 1-1/4 in Nominal, FNPT End Style, 300 lb, Bronze Body, Handwheel Actuator, Domestic
CBPN:181181
UPC:670750827136
MPN:3044601
Price:
$358.11 / EA
Prop 65:
DESCRIPTION
Apollo™ Gate Valve, Rising Stem, Series: 111T, 1-1/4 in Nominal, FNPT End Style, 1000 psig CWP/300 psig SWP Pressure, 300 lb Pressure Class, -20 to 406 deg F, 80 gpm Flow Rate, Handwheel Actuator, 8.29 in Open Top to Inlet Center, Bronze Body, Brass/Bronze Trim, Grafoil® Softgoods, 3.01 in L Dimensions, Domestic
The Apollo™ Model 111T Bronze Gate Valve provides a cost effective made in the USA alternative to globally sourced multi-turn valves. These valves are cast, machined, assembled, and tested in South Carolina. The Apollo™ gate valve is ideal for steam and liquid service and can reliably be installed in most plumbing and heating systems including building service piping and OEM applications.
Apollo™ 3044601 111T Rising Stem Gate Valve, 1-1/4 in Nominal, FNPT End Style, 300 lb, Bronze Body, Handwheel Actuator, Domestic
CBPN:181181
MPN:3044601
UPC:670750827136
Price:
$358.11 / EA
Prop 65:
DESCRIPTION
Apollo™ Gate Valve, Rising Stem, Series: 111T, 1-1/4 in Nominal, FNPT End Style, 1000 psig CWP/300 psig SWP Pressure, 300 lb Pressure Class, -20 to 406 deg F, 80 gpm Flow Rate, Handwheel Actuator, 8.29 in Open Top to Inlet Center, Bronze Body, Brass/Bronze Trim, Grafoil® Softgoods, 3.01 in L Dimensions, Domestic
The Apollo™ Model 111T Bronze Gate Valve provides a cost effective made in the USA alternative to globally sourced multi-turn valves. These valves are cast, machined, assembled, and tested in South Carolina. The Apollo™ gate valve is ideal for steam and liquid service and can reliably be installed in most plumbing and heating systems including building service piping and OEM applications.
Specifications
Brand: Apollo™
Weight: 4.7lbs
Actuator Type: Handwheel
Body Material: Bronze
End Style: FNPT
Flow Rate: 80 gpm
Nominal Size: 1-1/4 in
Series: 111T
Temperature Rating: -20 to 422 deg F
Type: Rising Stem
Pressure Rating: 1000 psi CWP
Dimensions: 3.01 in L
Pressure Class: 300 lb
Softgoods Material: Grafoil
Trim Material: Brass/Bronze
Manufacturer Name: Apollo Conbraco
Top to Inlet Center: 8.29 in Open
Application: Plumbing, Heating, Building Service Piping System, OEM
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ARRA Compliant | ASME B1.20.1 | ASTM B61 Body | ASTM B62 Disc Wedge | ASTM B21 UNS C46400 Stem | CRN 0C14667.5 | MSS SP-80 | PROP65: Cancer and Reproductive Harm
Item Features
- Guided solid bronze disc wedge
- Adjustable graphite stem packing
- Union bonnet
- Dezincification resistant bronze construction
- Rugged malleable iron hand wheel
- Brass stem/bronze disc wedge
