Apollo™ 3044301

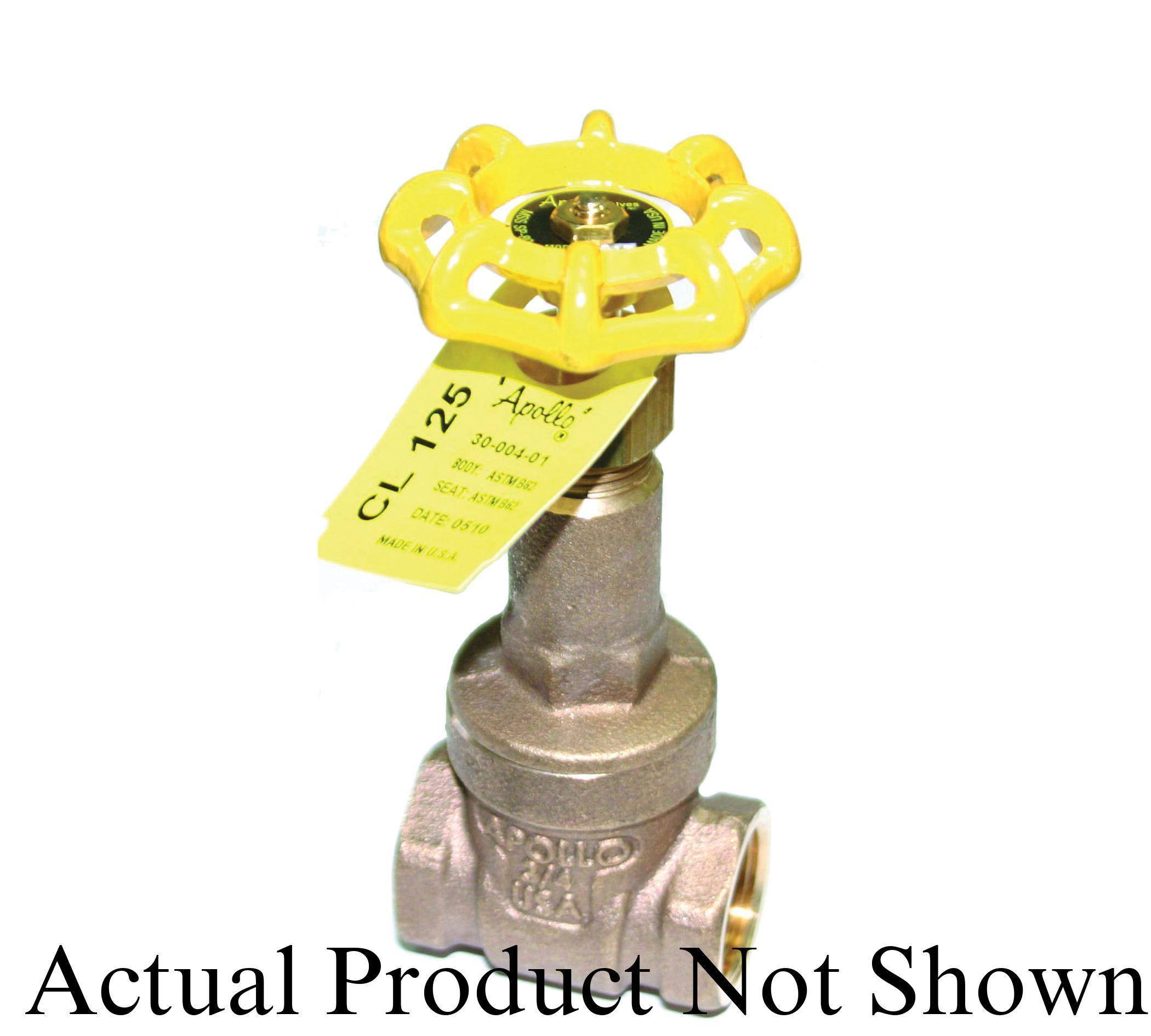

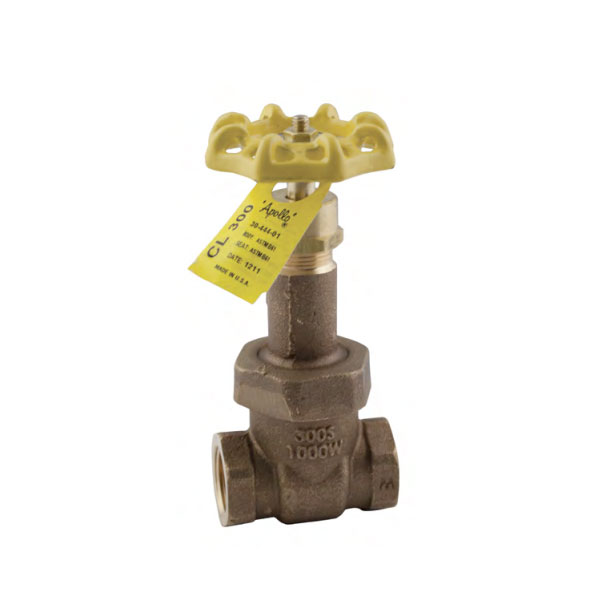

Apollo™ 3044301 111T Rising Stem Gate Valve, 1/2 in Nominal, FNPT End Style, 300 lb, Bronze Body, Handwheel Actuator, Domestic

CBPN:166605

UPC:670750765162

MPN:3044301

Price:
$133.92 / EA
Prop 65:

DESCRIPTION

Apollo™ Gate Valve, Rising Stem, Series: 111T, 1/2 in Nominal, FNPT End Style, 1000 psig CWP/300 psig SWP Pressure, 300 lb Pressure Class, -20 to 406 deg F, 12.5 gpm Flow Rate, Handwheel Actuator, 4.97 in Open Top to Inlet Center, Bronze Body, Brass/Bronze Trim, Grafoil® Softgoods, 2.31 in L Dimensions, Domestic

The Apollo™ Model 111T Bronze Gate Valve provides a cost effective made in the USA alternative to globally sourced multi-turn valves. These valves are cast, machined, assembled, and tested in South Carolina. The Apollo™ gate valve is ideal for steam and liquid service and can reliably be installed in most plumbing and heating systems including building service piping and OEM applications.

Apollo™ 3044301 111T Rising Stem Gate Valve, 1/2 in Nominal, FNPT End Style, 300 lb, Bronze Body, Handwheel Actuator, Domestic

CBPN:166605

MPN:3044301

UPC:670750765162

Price:
$133.92 / EA

Prop 65:
Apollo Valve Logo

DESCRIPTION

Apollo™ Gate Valve, Rising Stem, Series: 111T, 1/2 in Nominal, FNPT End Style, 1000 psig CWP/300 psig SWP Pressure, 300 lb Pressure Class, -20 to 406 deg F, 12.5 gpm Flow Rate, Handwheel Actuator, 4.97 in Open Top to Inlet Center, Bronze Body, Brass/Bronze Trim, Grafoil® Softgoods, 2.31 in L Dimensions, Domestic

The Apollo™ Model 111T Bronze Gate Valve provides a cost effective made in the USA alternative to globally sourced multi-turn valves. These valves are cast, machined, assembled, and tested in South Carolina. The Apollo™ gate valve is ideal for steam and liquid service and can reliably be installed in most plumbing and heating systems including building service piping and OEM applications.

Specifications

BrandApollo™
Weight1.36lbs
Nominal Size1/2 in
End StyleFNPT
Pressure Class300 lb
Body MaterialBronze
Softgoods MaterialGrafoil
Actuator TypeHandwheel
Dimensions2.31 in L
Flow Rate12.5 gpm
Manufacturer NameApollo Conbraco
Pressure Rating1000 psi CWP
Series111T
Temperature Rating-20 to 422 deg F
Top to Inlet Center4.97 in Open
Trim MaterialBrass/Bronze
TypeRising Stem
ApplicationPlumbing, Heating, Building Service Piping System, OEM
Warranty5 Years
Domestic/ImportDomestic
Country of OriginUS
Standards and ApprovalsARRA Compliant | ASME B1.20.1 | ASTM B61 Body | ASTM B62 Disc Wedge | ASTM B21 UNS C46400 Stem | CRN 0C14667.5 | MSS SP-80 | PROP65: Cancer and Reproductive Harm

Item Features

  • Guided solid bronze disc wedge
  • Adjustable graphite stem packing
  • Union bonnet
  • Dezincification resistant bronze construction
  • Rugged malleable iron hand wheel
  • Brass stem/bronze disc wedge
