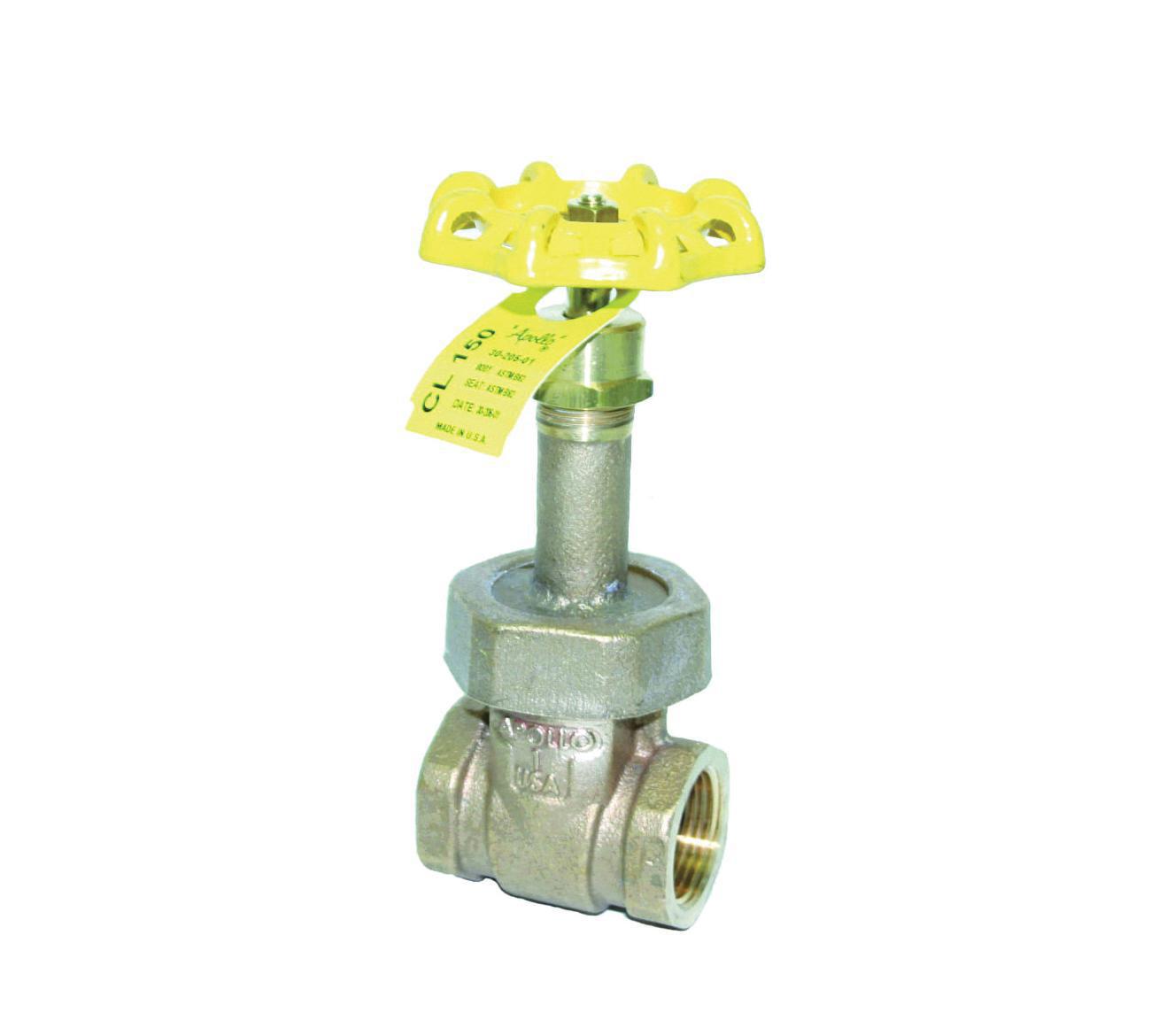

Apollo™ 3020301 107T Rising Stem Gate Valve, 1/2 in Nominal, FNPT End Style, 150 lb, Bronze Body, Handwheel Actuator, Domestic
CBPN:195669
UPC:670750601460
MPN:3020301
Price:
$84.86 / EA
Prop 65:
DESCRIPTION
Apollo™ Gate Valve, Rising Stem, Series: 107T, 1/2 in Nominal, FNPT End Style, 300 psi CWP/150 psi SWP Pressure, 150 lb Pressure Class, -20 to 406 deg F, 12.5 gpm Flow Rate, Full Port, Handwheel Actuator, 4.85 in Open Top to Inlet Center, Bronze Body, Brass/Bronze Trim, Grafoil® Softgoods, 2.03 in L Dimensions, Domestic
The Apollo™ Model 107T (30 Series) Gate Valve provides a cost effective Made in the USA alternative to globally sourced multi-turn valves. These valves are cast, machined, assembled, and tested in South Carolina. The Apollo™ gate valve is ideal for use in a wide variety of plumbing and heating applications including building service piping systems.
Apollo™ 3020301 107T Rising Stem Gate Valve, 1/2 in Nominal, FNPT End Style, 150 lb, Bronze Body, Handwheel Actuator, Domestic
CBPN:195669
MPN:3020301
UPC:670750601460
Price:
$84.86 / EA
Prop 65:
DESCRIPTION
Apollo™ Gate Valve, Rising Stem, Series: 107T, 1/2 in Nominal, FNPT End Style, 300 psi CWP/150 psi SWP Pressure, 150 lb Pressure Class, -20 to 406 deg F, 12.5 gpm Flow Rate, Full Port, Handwheel Actuator, 4.85 in Open Top to Inlet Center, Bronze Body, Brass/Bronze Trim, Grafoil® Softgoods, 2.03 in L Dimensions, Domestic
The Apollo™ Model 107T (30 Series) Gate Valve provides a cost effective Made in the USA alternative to globally sourced multi-turn valves. These valves are cast, machined, assembled, and tested in South Carolina. The Apollo™ gate valve is ideal for use in a wide variety of plumbing and heating applications including building service piping systems.
Specifications
Brand: Apollo™
Weight: 1.07lbs
Actuator Type: Handwheel
Body Material: Bronze
End Style: FNPT
Flow Rate: 12.5 gpm
Nominal Size: 1/2 in
Series: 107T
Temperature Rating: -20 to 406 deg F
Type: Rising Stem
Pressure Rating: 300 psi CWp
Dimensions: 2.03 in L
Port Type: Full
Pressure Class: 150 lb
Softgoods Material: Grafoil
Trim Material: Brass/Bronze
Manufacturer Name: Apollo Conbraco
Top to Inlet Center: 4.85 in Open
Application: Plumbing, Heating, Building Service Piping System
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ARRA Compliant | ASME B1.20.1 | ASTM B62 Body/Disc Wedge | ASTM B21 UNS C46400 Stem | CRN 0C14667.5 | MSS SP-80 | PROP65: Cancer and Reproductive Harm
Item Features
- Guided solid bronze disc wedge
- Adjustable graphite stem packing
- Dezincification resistant
- 100% factory tested
- Union bonnet
- Malleable iron rugged hand wheel
- Brass stem/bronze disc wedge
- Grafoil packing
