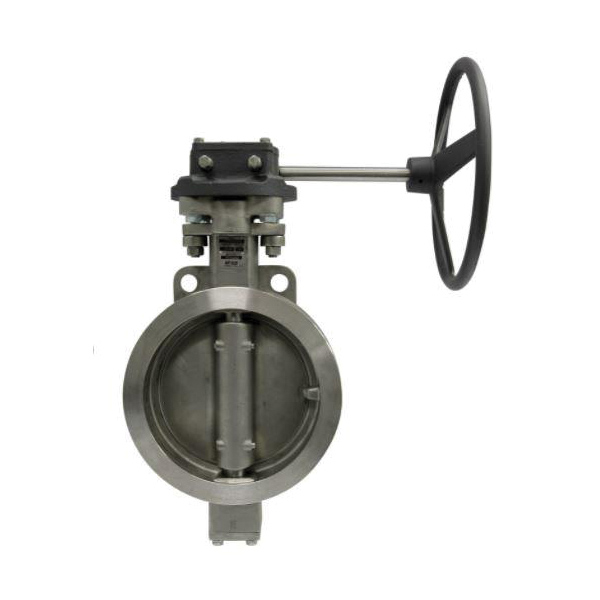

Apollo™ 215W06SSP2FC2

Apollo™ 215W06SSP2FC2 Double Offset High Performance Wafer Style Butterfly Valve, 6 in Nominal, 150 lb, 316 Stainless Steel Body, Graphite/TFM Softgoods

CBPN:251934

UPC:191988108823

MPN:215W06SSP2FC2

Price:
$2818.81 / EA
Prop 65:

DESCRIPTION

Apollo™ Butterfly Valve, Double Offset High Performance Wafer Style, Series: 215W, 6 in Nominal, 150 lb Pressure Class, Media: Water, Worm Gear Operated Actuator, 2.244 in Inlet to Outlet Length, 316 Stainless Steel Body, 316 Stainless Steel Disc, 17-4PH Stainless Steel Stem & Pin, Graphite/TFM Softgoods

Apollo™ 215W Series double offset high performance Butterfly Valves are available in wafer body design. Stainless steel models are certified lead-free with stainless steel disc and 17-4PH stainless steel stem.

Apollo™ 215W06SSP2FC2 Double Offset High Performance Wafer Style Butterfly Valve, 6 in Nominal, 150 lb, 316 Stainless Steel Body, Graphite/TFM Softgoods

CBPN:251934

MPN:215W06SSP2FC2

UPC:191988108823

Price:
$2818.81 / EA

Prop 65:
Apollo Valve Logo

DESCRIPTION

Apollo™ Butterfly Valve, Double Offset High Performance Wafer Style, Series: 215W, 6 in Nominal, 150 lb Pressure Class, Media: Water, Worm Gear Operated Actuator, 2.244 in Inlet to Outlet Length, 316 Stainless Steel Body, 316 Stainless Steel Disc, 17-4PH Stainless Steel Stem & Pin, Graphite/TFM Softgoods

Apollo™ 215W Series double offset high performance Butterfly Valves are available in wafer body design. Stainless steel models are certified lead-free with stainless steel disc and 17-4PH stainless steel stem.

Specifications

BrandApollo™
Weight38.95 lbs
Standards ApprovalsANSI/FCI 70-2,API 598/609,ASME B16.10/B16.34/B16.5,ASTM A351 CF8M,CE Listed,CRN 0C17459.CL,MSS SP-25,MSS SP-44,MSS SP-55,MSS SP-61,MSS SP-68,NACE MR0103,NSF/ANSI 372,NSF/ANSI/CAN 61,PED Compliant

Item Features

  • Multi-bolt retainer holds and supports seat
  • Suitable for bi-directional dead end service at full pressure temperature rating
  • Vacuum service to 29 in Hg
  • Polyamide epoxy primer with high performance polyurethane topcoat
  • Graphite seal/stem packing/TFM seat
  • ISO 5211 mounting flange allows choice of Apollo™ actuators and manual operators
  • Well suited for a wide range of liquid and steam applications, defined in the high performance butterfly valve pressure-temperature charts
