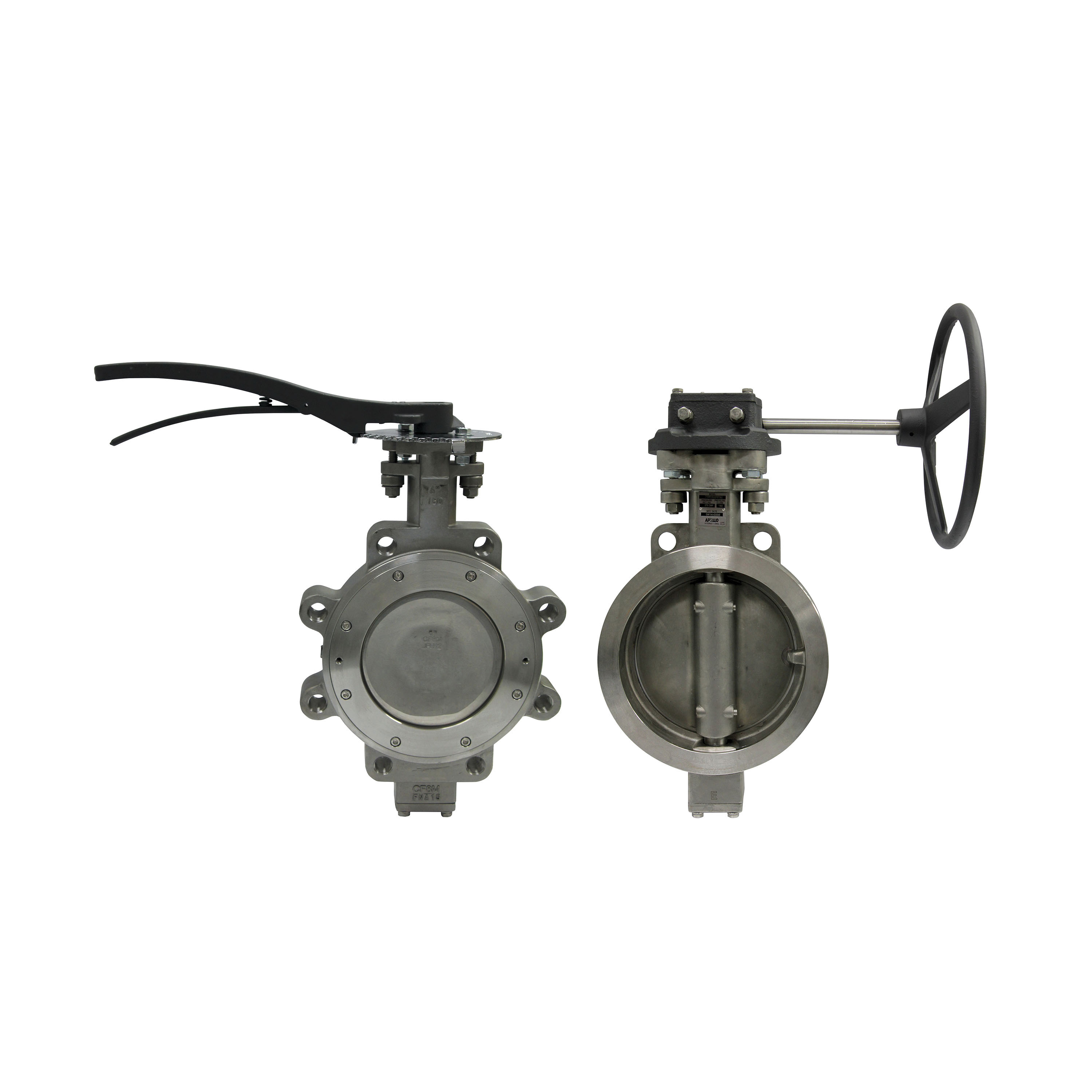

Apollo™ 215W04CSP2FA2 215W Wafer Style Butterfly Valve, 4 in Nominal, 150 lb, Carbon Steel Body, PTFE/Graphite / Fire Safe Seat, 316SS Disc, Gear Operator, Domestic
CBPN: 247744
UPC:670750283178
MPN:215W04CSP2FA2
Price:
$1665.30 / EA
Prop 65:
DESCRIPTION
Apollo™, 215W04CSP2FA2, Butterfly Valve, Wafer Style, Series: 215W, 4 in Nominal, 150 lb Pressure Class, Media: Steam, Worm Gear Operated Actuator, 7.008 in Top to Inlet Center, Carbon Steel Body, 316 Stainless Steel Disc, 17-4PH Stainless Steel Stem/Disc Pin Stem & Pin, PTFE/Graphite Softgoods
Apollo™ 215W04CSP2FA2 215W Wafer Style Butterfly Valve, 4 in Nominal, 150 lb, Carbon Steel Body, PTFE/Graphite / Fire Safe Seat, 316SS Disc, Gear Operator, Domestic
CBPN: 247744
MPN:215W04CSP2FA2
UPC:670750283178
Price:
$1665.30 / EA
Prop 65:
DESCRIPTION
Apollo™, 215W04CSP2FA2, Butterfly Valve, Wafer Style, Series: 215W, 4 in Nominal, 150 lb Pressure Class, Media: Steam, Worm Gear Operated Actuator, 7.008 in Top to Inlet Center, Carbon Steel Body, 316 Stainless Steel Disc, 17-4PH Stainless Steel Stem/Disc Pin Stem & Pin, PTFE/Graphite Softgoods
Specifications
Brand: Apollo™
Weight: 26.19 lbs
Nominal Size: 4 in
Type: Double Offset High Performance Wafer
Body Material: Carbon Steel
Disc Material: Stainless Steel
Seat Material: PTFE/Graphite/Fire Safe
Actuator Type: Gear Operator
End Style: Wafer
Pressure Class: 150 lb
Manufacturer Name: Apollo Conbraco
Media: Steam
Series: 215W
Stem & Pin Material: 17-4PH Stainless Steel Stem/Disc Pin
Top to Inlet Center: 7.008 in
Warranty: 2 Years
Domestic/Import: Domestic
Standards and Approvals: API 609 | ASTM A216 Body | CE Listed | CRN 0C17459.5CL | NSF/ANSI 61 | PROP65: Cancer and Reproductive Harm
Item Features
- TFM/Inconel and graphite seal (fire safe) seat
- Standard Apollo special service
- Double offset high performance butterfly valve
- Rocker packing gland, shaped packing gland compensates for uneven adjustment of gland nuts
- Extended neck - allows for 2 in of pipe insulation
- Positive cast disc stop - prevents seat damage from over-travel of the disc beyond the closed position
- Jacking taps - allows the use of seat retainer bolts to aid in retainer removal
- Seat retainer, reliable multi-bolt retainer holds and supports the seat
- Corrosion protection - polyamide epoxy primer with high performance polyurethane topcoat is the standard finish for carbon steel valve bodies
- Blow-out proof stem, 17-4 PH stainless steel stem with high strength and good corrosion-resistance, designed per API 609 standard
- Anti-extrusion ring (under stem seals) - prevents the extrusion of stem seals, maintaining optimum seal
- Bearing (lower and upper) - full length provides maximum stem support
- Seat, an advanced free floating, pressure assisted, solid seat design provides an interference and pressure assisted seal
- 17-4 PH stainless steel disc pins are tangentially positioned, placing them in compression rather than shear
- Thrust ring, centers the disc, ensures tight shut-off and long service life
