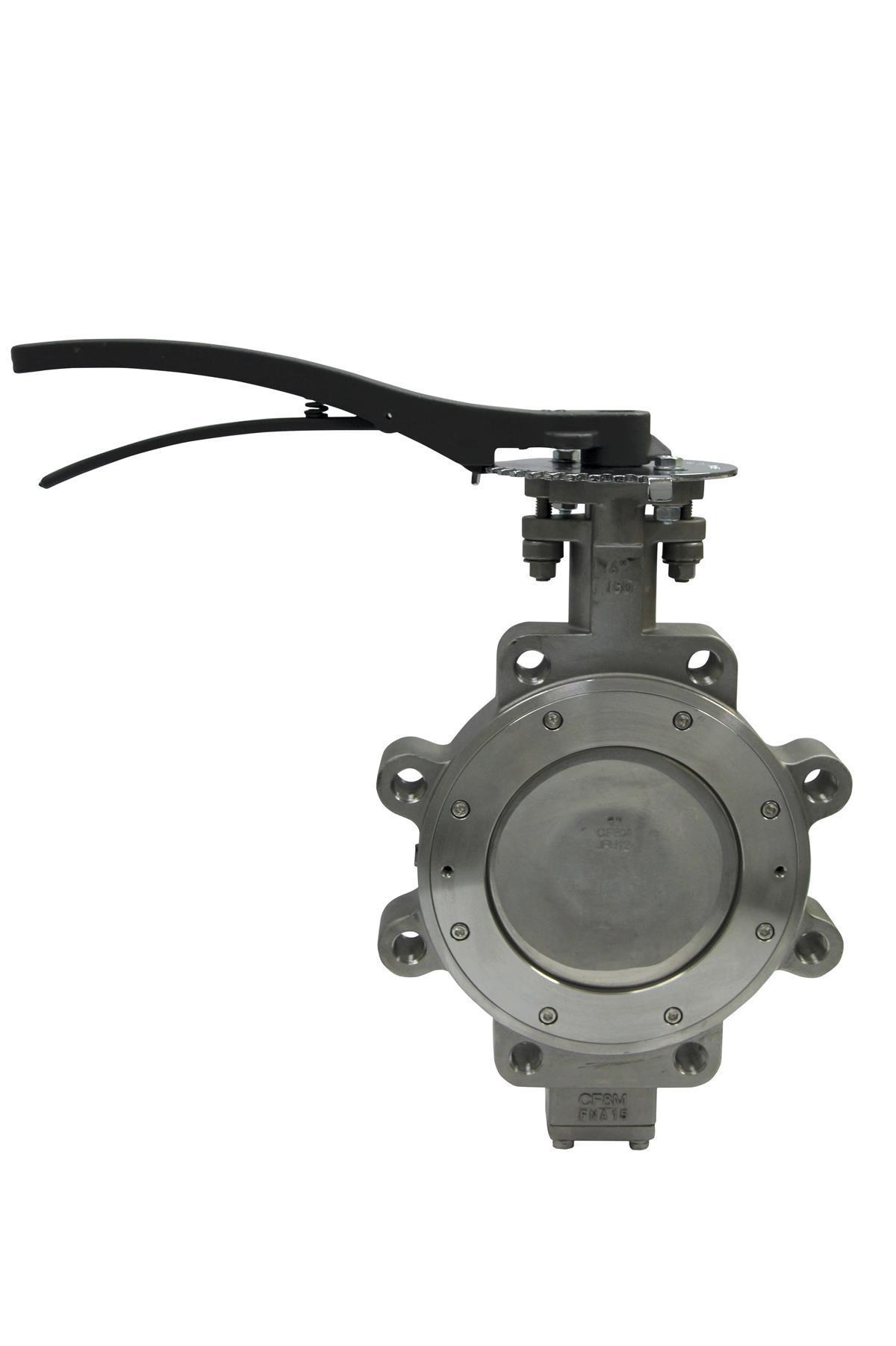

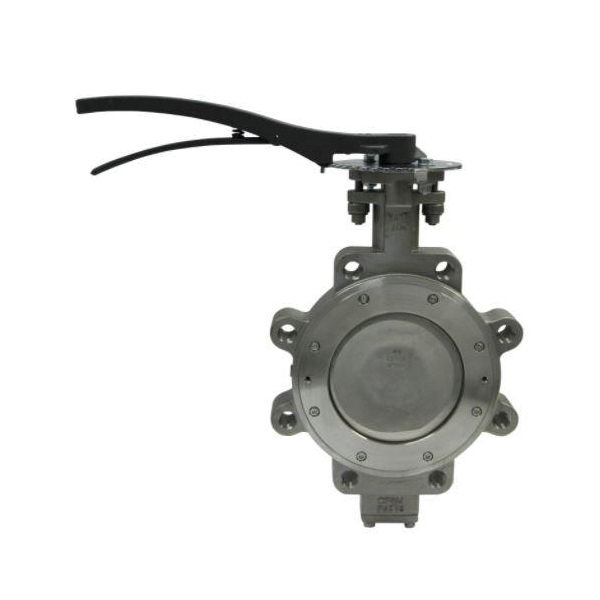

Apollo™ 215L02CSP2FC1 215 L Double Offset High Performance Lug Style Butterfly Valve, 2 in Nominal, 150 lb, Carbon Steel Body, PTFE/Graphite/Fire Safe Seat, 316SS Disc, Lever Handle, Domestic
CBPN: 251912
UPC:191988098810
MPN:215L02CSP2FC1
Price:
$1408.89 / EA
Prop 65:
DESCRIPTION
Apollo™, 215L02CSP2FC1, Butterfly Valve, Double Offset High Performance Lug Style, Series: 215 L, 2 in Nominal, 150 lb Pressure Class, Media: Water, Lever Operated Actuator, 1.693 in Inlet to Outlet Length, Wrought Carbon Steel Body, 316 Stainless Steel Disc, 17-4PH Stainless Steel Stem & Pin, TFM/Graphite Softgoods, Polyamide Epoxy Primer
Apollo™ 215L Series double offset high performance Butterfly Valves are available in lug body design. Stainless steel models are certified lead-free with stainless steel disc and 17-4PH stainless steel stem.
Apollo™ 215L02CSP2FC1 215 L Double Offset High Performance Lug Style Butterfly Valve, 2 in Nominal, 150 lb, Carbon Steel Body, PTFE/Graphite/Fire Safe Seat, 316SS Disc, Lever Handle, Domestic
CBPN: 251912
MPN:215L02CSP2FC1
UPC:191988098810
Price:
$1408.89 / EA
Prop 65:
DESCRIPTION
Apollo™, 215L02CSP2FC1, Butterfly Valve, Double Offset High Performance Lug Style, Series: 215 L, 2 in Nominal, 150 lb Pressure Class, Media: Water, Lever Operated Actuator, 1.693 in Inlet to Outlet Length, Wrought Carbon Steel Body, 316 Stainless Steel Disc, 17-4PH Stainless Steel Stem & Pin, TFM/Graphite Softgoods, Polyamide Epoxy Primer
Apollo™ 215L Series double offset high performance Butterfly Valves are available in lug body design. Stainless steel models are certified lead-free with stainless steel disc and 17-4PH stainless steel stem.
Specifications
Brand: Apollo™
Weight: 13.41 lbs
Nominal Size: 2 in
Type: Double Offset High Performance Lug
Body Material: Carbon Steel
Disc Material: Stainless Steel
Seat Material: PTFE/Graphite/Fire Safe
Actuator Type: Lever Handle
End Style: Lug
Pressure Class: 150 lb
Finish: Polyamide Epoxy Primer
Inlet to Outlet Length: 1.693 in
Manufacturer Name: Apollo Conbraco
Media: Water
Series: 215 L
Stem & Pin Material: 17-4PH Stainless Steel
Application: Liquid and steam applications
Warranty: 5 Years
Domestic/Import: Domestic
Standards and Approvals: ANSI/FCI 70-2 | API 598/609 | ASME B16.10/B16.34/B16.5 | ASTM A216 | CE Listed | CRN 0C17459.CL | MSS SP-25 | MSS SP-44 | MSS SP-55 | MSS SP-61 | MSS SP-68 | NACE MR0103 | NSF/ANSI 372 | NSF/ANSI/CAN 61 | PED Compliant | PROP65: Cancer and Reproductive Harm
Item Features
- Multi-bolt retainer holds and supports seat
- Suitable for bi-directional dead end service at full pressure temperature rating
- Vacuum service to 29 in Hg
- Polyamide epoxy primer with high performance polyurethane topcoat
- Graphite seal/stem packing/TFM seat
- Well suited for a wide range of liquid and steam applications, defined in the high performance butterfly valve pressure-temperature charts
