Apollo™ 18C5424125

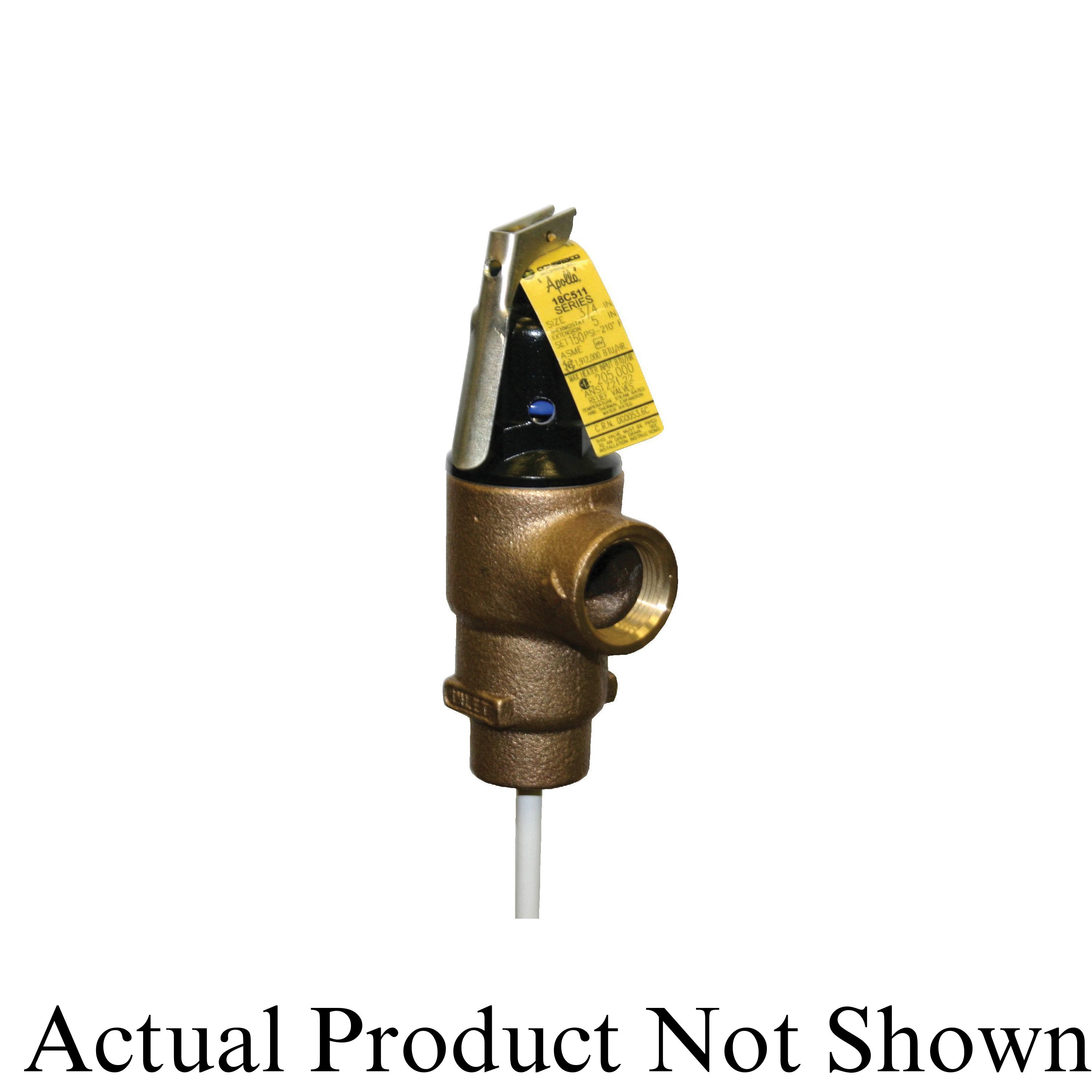

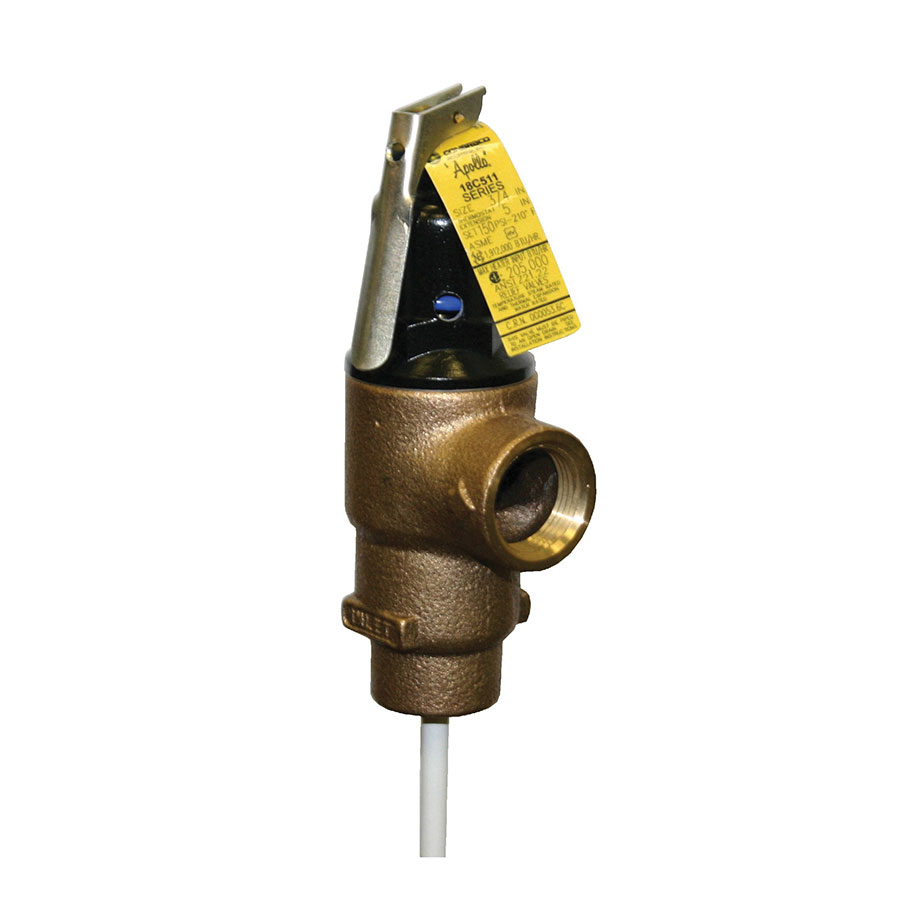

Apollo™ 18C5424125 18C-500 High Capacity Temperature and Pressure Relief Valve, 1-1/2 in Nominal, FNPT End Style, 125 psi Pressure, Bronze Body, Domestic

CBPN: 179328

UPC:670750123757

MPN:18C5424125

Price:
$1669.48 / EA
Prop 65:

DESCRIPTION

Apollo™ 18C5424125, Temperature and Pressure Relief Valve, High Capacity, Series: 18C-500, 1-1/2 in Nominal, FNPT End Style, 125 psi Pressure, 210 deg F, Media: Water, Bronze Body, Brass Trim, Nylon Element Tube Coating Softgoods, 4.13 in H Dimensions, Domestic

The Apollo 18C-500 Series bronze automatic temperature and pressure relief valves are used for protection of high capacity commercial hot water heaters and storage tanks.

Apollo™ 18C5424125 18C-500 High Capacity Temperature and Pressure Relief Valve, 1-1/2 in Nominal, FNPT End Style, 125 psi Pressure, Bronze Body, Domestic

CBPN: 179328

MPN:18C5424125

UPC:670750123757

Price:
$1669.48 / EA

Prop 65:
Apollo Valve Logo

DESCRIPTION

Apollo™ 18C5424125, Temperature and Pressure Relief Valve, High Capacity, Series: 18C-500, 1-1/2 in Nominal, FNPT End Style, 125 psi Pressure, 210 deg F, Media: Water, Bronze Body, Brass Trim, Nylon Element Tube Coating Softgoods, 4.13 in H Dimensions, Domestic

The Apollo 18C-500 Series bronze automatic temperature and pressure relief valves are used for protection of high capacity commercial hot water heaters and storage tanks.

Specifications

Brand: Apollo™
Weight: 8.2 lbs
Nominal Size: 1-1/2 in
End Style: FNPT
Set Pressure: 125 psig
Body Material: Bronze
Trim Material: Brass
Dimensions: 4.13 in H
Manufacturer Name: Apollo Conbraco
Media: Water
Pressure Rating: 125 psi
Series: 18C-500
Softgoods Material: Nylon Element Tube Coating
Temperature Rating: 210 deg F
Type: High Capacity
Application: Protection of high capacity commercial hot water heaters and storage tanks
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASME Section IV Certified Capacity | CSA Certified to ANSI Z21.22 | Canadian Registration No. CRN-0G1438.6C | PROP65: Cancer and Reproductive Harm

Item Features

  • Coated element protects against corrosion
  • Stainless steel elements
  • 1200000 Btu/hr capacity
