Apollo™ 18C5115150

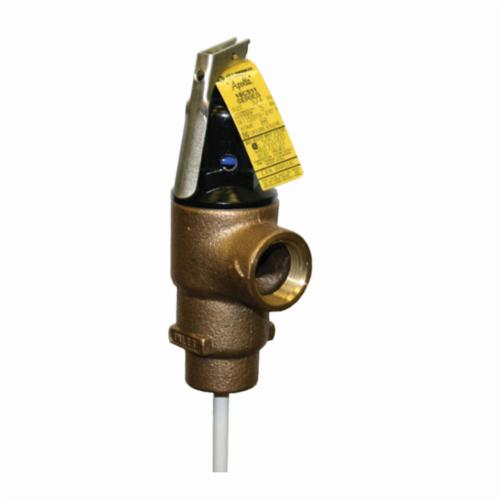

Apollo™ 18C5115150 18C-500, TPC High Capacity Temperature and Pressure Relief Valve, 3/4 in, MNPT, 125 to 150 psig, Bronze Body, Domestic

CBPN:134199

UPC:670750121302

MPN:18C5115150

Price:
$206.51 / ea
Availability Information

DESCRIPTION

Apollo™ Temperature and Pressure Relief Valve, High Capacity, Series: 18C-500, 3/4 in Nominal, MNPT, 125 to 150 psig, 210 deg F, Media: Water, 3-1/2 in Top to Inlet Center, Bronze Body, Brass Trim, Nylon Element Tube Coating Softgoods, Domestic

The Apollo® TPC bronze automatic temperature and pressure relief valves are used for protection of high capacity commercial hot water heaters and storage tanks.

Apollo™ 18C5115150 18C-500, TPC High Capacity Temperature and Pressure Relief Valve, 3/4 in, MNPT, 125 to 150 psig, Bronze Body, Domestic

CBPN:134199

MPN:18C5115150

UPC:670750121302

Price:
$206.51 / ea
Availability Information

Apollo Valve Logo

DESCRIPTION

Apollo™ Temperature and Pressure Relief Valve, High Capacity, Series: 18C-500, 3/4 in Nominal, MNPT, 125 to 150 psig, 210 deg F, Media: Water, 3-1/2 in Top to Inlet Center, Bronze Body, Brass Trim, Nylon Element Tube Coating Softgoods, Domestic

The Apollo® TPC bronze automatic temperature and pressure relief valves are used for protection of high capacity commercial hot water heaters and storage tanks.

Specifications

BrandApollo™
Body MaterialBronze
Domestic/ImportDomestic
End StyleMNPT x FNPT
Nominal Size3/4 in
Pressure Rating150 psig
Series18C-500
Temperature Rating210 deg F
TypeHigh Capacity
MediaWater
Set Pressure150 psig
Softgoods MaterialNylon Element Tube Coating
Trim MaterialBrass
Top to Inlet Center3-1/2 in

Item Features

  • ASME section IV certified capacity
  • Coated element protects against corrosion
  • ASME section IV heating boilers
  • Silicone seat disc
