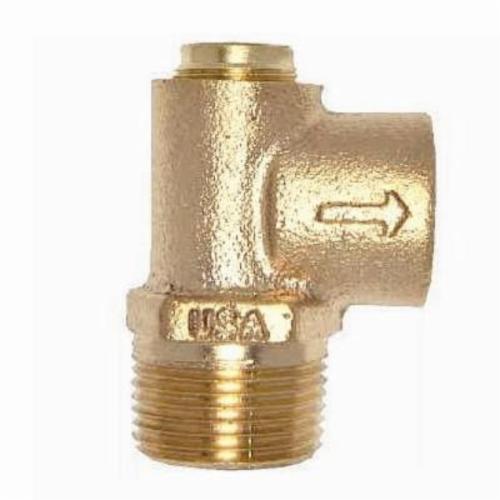

Apollo™ 16-203-04 16-200, 16-203 General Purpose Pressure Relief Valve, 3/4 x 1/2 in, Male x Female, 125 psig, Cast Bronze Body
CBPN: 246998
UPC:670750500602
MPN:16-203-04
Price:
$44.36 / EA
Prop 65:
DESCRIPTION
Apollo™ Pressure Relief Valve, General Purpose, Series: 16-200, 3/4 x 1/2 in Nominal, Male x Female, 125 psig, 120 deg F, Cast Bronze Body, Silicon Soft Seat Softgoods, 2-1/2 in H
Economical relief valves for general purpose non-code overpressure protection and bypass relief applications. Applications include liquid bypass or thermal expansion relief of well pumps, tanks, fire protection systems and all types of water or liquid piping systems. Not intended for steam service.
Apollo™ 16-203-04 16-200, 16-203 General Purpose Pressure Relief Valve, 3/4 x 1/2 in, Male x Female, 125 psig, Cast Bronze Body
CBPN: 246998
MPN:16-203-04
UPC:670750500602
Price:
$44.36 / EA
Prop 65:
DESCRIPTION
Apollo™ Pressure Relief Valve, General Purpose, Series: 16-200, 3/4 x 1/2 in Nominal, Male x Female, 125 psig, 120 deg F, Cast Bronze Body, Silicon Soft Seat Softgoods, 2-1/2 in H
Economical relief valves for general purpose non-code overpressure protection and bypass relief applications. Applications include liquid bypass or thermal expansion relief of well pumps, tanks, fire protection systems and all types of water or liquid piping systems. Not intended for steam service.
Specifications
Brand: Apollo™
Weight: 0.38 lbs
Nominal Size: 3/4 x 1/2 in
End Style: MNPT x FNPT
Set Pressure: 125 psig
Body Material: Cast Bronze
Dimensions: 2-1/2 in H
Manufacturer Name: Apollo Conbraco
Pressure Rating: 125 psi
Series: 16
Softgoods Material: Silicone Soft Seat
Temperature Rating: 120 deg F
Type: General Purpose
Application: Liquid Bypass or Thermal Expansion Relief of Well Pumps, Tanks, Fire Protection Systems and All Types of Water or Liquid Piping Systems
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: PROP65: Cancer and Reproductive Harm
Item Features
- Silicone soft seat ensures seat tightness, extended service life
- All valves are 100% factory tested
