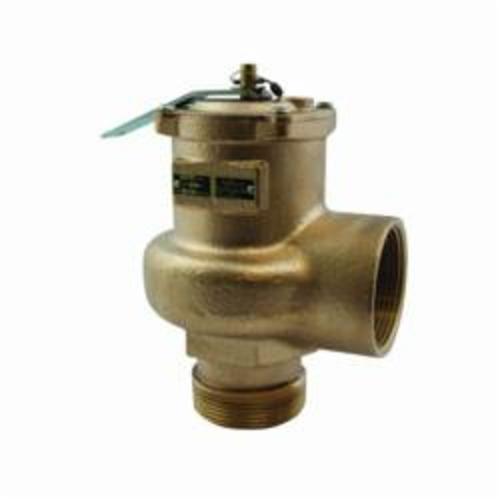

Apollo™ 1420506 14-200 Safety Relief Valve, 2 in Nominal, Male x Female End Style, 10 psi Pressure, Bronze Body, Domestic
CBPN: 246978
UPC:670750498275
MPN:14-205-06
Price:
$722.17 / EA
Prop 65:
DESCRIPTION
Apollo™ 1420506, Safety Relief Valve, Series: 14-200, 2 in Nominal, Male x Female End Style, 10 psi Pressure, 250 deg F, Bronze Body, Brass Trim, PTFE Coated EPDM O-Ring Softgoods, 7.12 in H Dimensions, Domestic
The Apollo® 14 series is a 100% American made bronze safety relief valve for protection of steam boilers, low pressure, high volume blowers, compressors and vacuum systems.
Apollo™ 1420506 14-200 Safety Relief Valve, 2 in Nominal, Male x Female End Style, 10 psi Pressure, Bronze Body, Domestic
CBPN: 246978
MPN:14-205-06
UPC:670750498275
Price:
$722.17 / EA
Prop 65:
DESCRIPTION
Apollo™ 1420506, Safety Relief Valve, Series: 14-200, 2 in Nominal, Male x Female End Style, 10 psi Pressure, 250 deg F, Bronze Body, Brass Trim, PTFE Coated EPDM O-Ring Softgoods, 7.12 in H Dimensions, Domestic
The Apollo® 14 series is a 100% American made bronze safety relief valve for protection of steam boilers, low pressure, high volume blowers, compressors and vacuum systems.
Specifications
Brand: Apollo™
Weight: 8.4 lbs
Nominal Size: 2 in
End Style: MNPT x FNPT
Set Pressure: 10 psig
Body Material: Bronze
Trim Material: Brass
Dimensions: 7.12 in H
Manufacturer Name: Apollo Conbraco
Pressure Rating: 10 psi
Series: 14-200
Softgoods Material: PTFE Coated EPDM O-Ring
Temperature Rating: 250 deg F
Application: Medium and Large Size Commercial and Industrial Heating Boiler
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM B584 Body | PROP65: Cancer and Reproductive Harm
Item Features
- One piece body, all bronze construction
- Rust proofed steel spring
- Chrome plated seat, PTFE coated disc
- PTFE coated EPDM o-ring for positive seal
- 3/8 in NPT side tapping for drain connection
- Valves are capacity certified by the National board at 15 psig only, in accordance with ASME boiler and pressure vessel code section IV
- Registered in all Canadian provinces and territories, CRN No. 0G8547.5C
