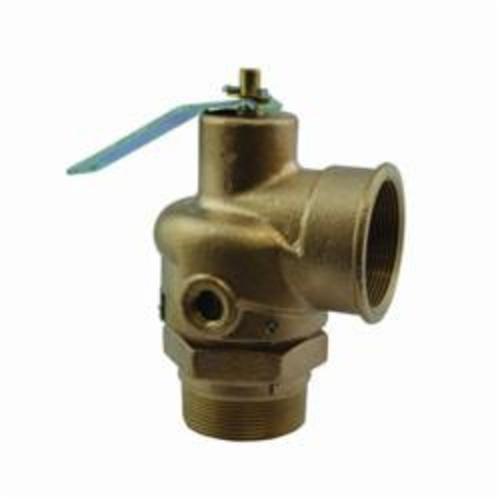

Apollo™ 1220807 12-200 Low Pressure Safety Relief Valve, 3 in Nominal, MNPT x FNPT End Style, 12 psi Pressure, Bronze Body, Domestic
CBPN: 246957
UPC:670750496677
MPN:12-208-07
Price:
$1124.16 / EA
Prop 65:
DESCRIPTION
Apollo™ 1220807, Safety Relief Valve, Low Pressure, Series: 12-200, 3 in Nominal, MNPT x FNPT End Style, 12 psi Pressure, 250 deg F, Bronze Body, Brass Trim, PTFE Coated Seat Seal/PTFE Coated EPDM O-Ring Softgoods, 9-1/2 in H Dimensions, Domestic
Medium capacity safety valves protect ASME Section IV low pressure steam heating boilers. Cast bronze, full nozzle design features PTFE faced elastomer soft seating for dependable operation.
Apollo™ 1220807 12-200 Low Pressure Safety Relief Valve, 3 in Nominal, MNPT x FNPT End Style, 12 psi Pressure, Bronze Body, Domestic
CBPN: 246957
MPN:12-208-07
UPC:670750496677
Price:
$1124.16 / EA
Prop 65:
DESCRIPTION
Apollo™ 1220807, Safety Relief Valve, Low Pressure, Series: 12-200, 3 in Nominal, MNPT x FNPT End Style, 12 psi Pressure, 250 deg F, Bronze Body, Brass Trim, PTFE Coated Seat Seal/PTFE Coated EPDM O-Ring Softgoods, 9-1/2 in H Dimensions, Domestic
Medium capacity safety valves protect ASME Section IV low pressure steam heating boilers. Cast bronze, full nozzle design features PTFE faced elastomer soft seating for dependable operation.
Specifications
Brand: Apollo™
Weight: 11.62 lbs
Nominal Size: 3 in
End Style: MNPT x FNPT
Set Pressure: 12 psig
Body Material: Bronze
Trim Material: Brass
Dimensions: 9-1/2 in H
Manufacturer Name: Apollo Conbraco
Pressure Rating: 12 psi
Series: 12-200
Softgoods Material: PTFE Coated Seat Seal/PTFE Coated EPDM O-Ring
Temperature Rating: 250 deg F
Type: Low Pressure
Application: Medium and Large Commercial and Industrial Steam Heating and Processing Boilers
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM B584 Body | ASTM B16 Stem | ASME Section IV | PROP65: Cancer and Reproductive Harm
Item Features
- All bronze construction
- PTFE coated o-ring seat seal
- 3/8 in NPT side tapping for drain
- Rust proofed steel spring
- Top guided, high capacity design
