Apollo™ 12-206-08

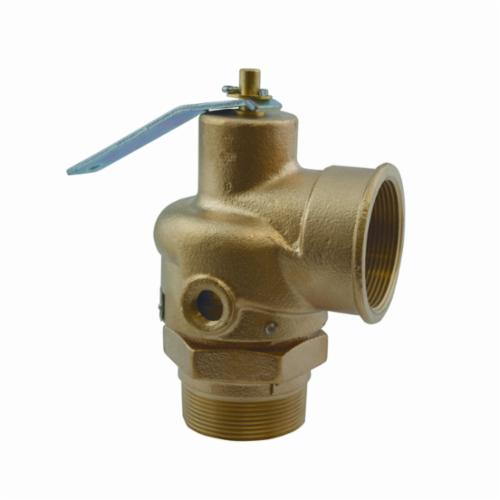

Apollo™ 1220608 12-200 Safety Relief Valve, 2-1/2 in Nominal, MNPT x FNPT End Style, 15 psi Pressure, Bronze Body, Domestic

CBPN:69150

UPC:670750496547

MPN:12-206-08

Price:
$823.91 / EA
Prop 65:

DESCRIPTION

Apollo™ 1220608, Safety Relief Valve, Series: 12-200, 2-1/2 in Nominal, MNPT x FNPT End Style, 15 psi Pressure, 250 deg F, Media: Steam, Bronze Body, Brass Trim, TFE Coated EPDM Softgoods, 8-1/2 in H Dimensions, Domestic

Medium capacity safety valves protect ASME Section IV low pressure steam heating boilers. Cast bronze, full nozzle design features PTFE faced elastomer soft seating for dependable operation.

Apollo™ 1220608 12-200 Safety Relief Valve, 2-1/2 in Nominal, MNPT x FNPT End Style, 15 psi Pressure, Bronze Body, Domestic

CBPN:69150

MPN:12-206-08

UPC:670750496547

Price:
$823.91 / EA

Prop 65:
Apollo Valve Logo

DESCRIPTION

Apollo™ 1220608, Safety Relief Valve, Series: 12-200, 2-1/2 in Nominal, MNPT x FNPT End Style, 15 psi Pressure, 250 deg F, Media: Steam, Bronze Body, Brass Trim, TFE Coated EPDM Softgoods, 8-1/2 in H Dimensions, Domestic

Medium capacity safety valves protect ASME Section IV low pressure steam heating boilers. Cast bronze, full nozzle design features PTFE faced elastomer soft seating for dependable operation.

Specifications

BrandApollo™
Weight8.35 lbs
Nominal Size2-1/2 in
End StyleMNPT x FNPT
Set Pressure15 psig
Body MaterialBronze
Trim MaterialBrass
Actuator TypeLever Handle
Dimensions8-1/2 in H
Manufacturer NameApollo Conbraco
MediaSteam
Pressure Rating15 psig
Series12-200
Softgoods MaterialTFE Coated EPDM
Temperature Rating250 deg F
ApplicationMedium and large commercial and industrial steam heating and processing boilers
Warranty5 Years
Domestic/ImportDomestic
Country of OriginUS
Standards and ApprovalsASME Section IV | Registered in All Canadian Provinces and Territories CRN 0G8547.5C | PROP65: Cancer and Reproductive Harm

Item Features

  • 3/8 in NPT side tapping for drain
  • Rust-proofed steel spring
  • Top guided, high capacity design
  • National board certified at 15 psi
  • TFE coated EPDM seal
  • Brass disc/stem
