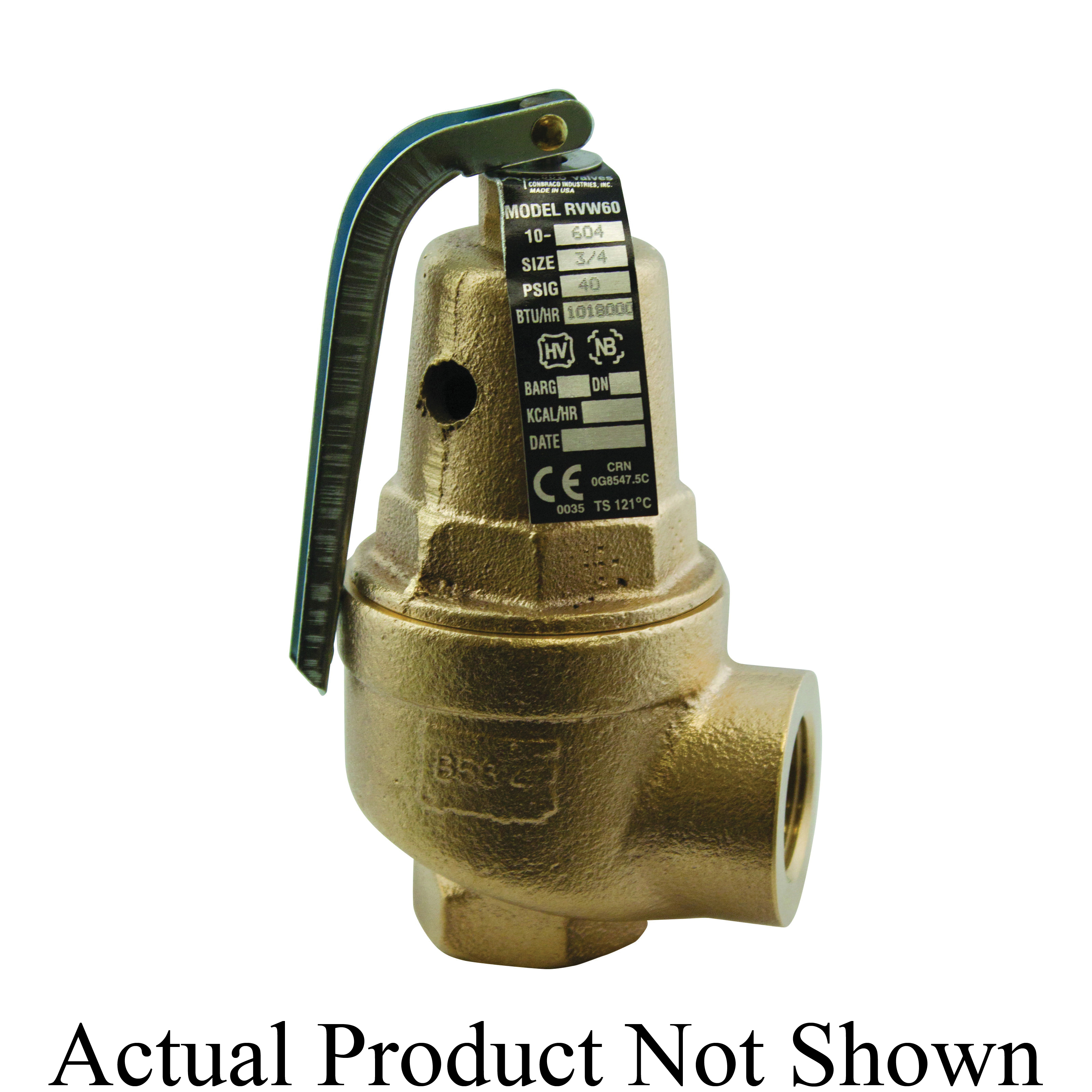

Apollo™ 1061405 10-600 Safety Relief Valve, 3/4 x 1 in Nominal, FNPT End Style, Bronze Body, Domestic
CBPN:6870
UPC:670750494291
MPN:10-614-05
Price:
$258.23 / EA
Prop 65:
DESCRIPTION
Apollo™ 1061405, Safety Relief Valve, Series: 10-600, 3/4 x 1 in Nominal, FNPT End Style, 250 deg F, Media: Water, Lever Handle Actuator, Bronze Body, 5.3 in H x 3.2 in W Dimensions, Domestic
High-capacity heating valves with female inlet, expanded or standard female outlet. Protects against excessive water pressure due to failure of controls to regulate BTU input. Elevated seat for drainage of water away from seat area. Entire pressure range is National Board capacity certified.
Apollo™ 1061405 10-600 Safety Relief Valve, 3/4 x 1 in Nominal, FNPT End Style, Bronze Body, Domestic
CBPN:6870
MPN:10-614-05
UPC:670750494291
Price:
$258.23 / EA
Prop 65:
DESCRIPTION
Apollo™ 1061405, Safety Relief Valve, Series: 10-600, 3/4 x 1 in Nominal, FNPT End Style, 250 deg F, Media: Water, Lever Handle Actuator, Bronze Body, 5.3 in H x 3.2 in W Dimensions, Domestic
High-capacity heating valves with female inlet, expanded or standard female outlet. Protects against excessive water pressure due to failure of controls to regulate BTU input. Elevated seat for drainage of water away from seat area. Entire pressure range is National Board capacity certified.
Specifications
Brand: Apollo™
Weight: 2.26 lbs
Nominal Size: 3/4 x 1 in
End Style: FNPT
Set Pressure: 30 psig
Body Material: Bronze
Actuator Type: Lever Handle
Dimensions: 5.3 in H x 3.2 in W
Manufacturer Name: Apollo Conbraco
Media: Water
Pressure Rating: 30 psig
Series: 10-600
Temperature Rating: 250 deg F
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM B584 Valve Body | ASME Section IV Certified Capacity | CE Listed | CRN 0G8547.5C | Pressure Equipment Directive 2014/68/EU (PED) | PROP65: Cancer and Reproductive Harm
Item Features
- High BTU capacity rating
- Silicone seat
- Fabric reinforced molded diaphragm isolates spring from water at all times
- Bronze body and spring cage
- Corrosion resistant construction
- Diaphragm isolated spring chamber
- Extremely high capacity
- Alloy steel plated spring
