Apollo™ 10-604-14

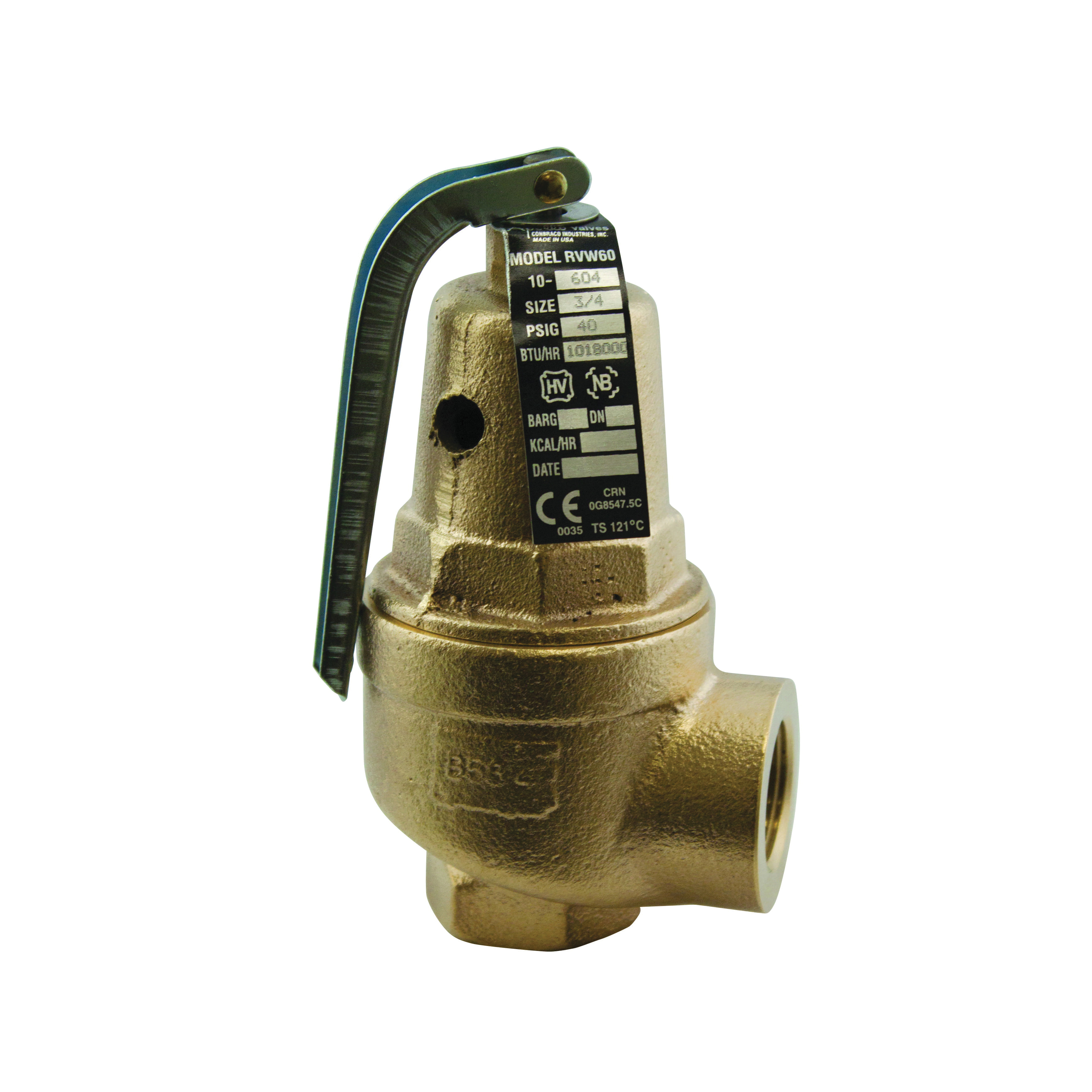

Apollo™ 1060414 10-600 Safety Relief Valve, 3/4 in Nominal, FNPT End Style, 70 psig Pressure, Bronze Body, Domestic

CBPN:246737

UPC:670750878442

MPN:10-604-14

Price:
$176.74 / EA
Prop 65:

DESCRIPTION

Apollo™ Safety Relief Valve, Series: 10-600, 3/4 in Nominal, FNPT, 70 psig, 250 deg F, Media: Water, Lift Handle Actuator, Bronze Body, Silicon Seat, 3.2 in W x 5.3 in H, Domestic

High-capacity heating system valves with female inlet and standard or expanded female outlet. Elevated seat for drainage of water away from seat area. Entire pressure range is National Board capacity certified.

Apollo™ 1060414 10-600 Safety Relief Valve, 3/4 in Nominal, FNPT End Style, 70 psig Pressure, Bronze Body, Domestic

CBPN:246737

MPN:10-604-14

UPC:670750878442

Price:
$176.74 / EA

Prop 65:
Apollo Valve Logo

DESCRIPTION

Apollo™ Safety Relief Valve, Series: 10-600, 3/4 in Nominal, FNPT, 70 psig, 250 deg F, Media: Water, Lift Handle Actuator, Bronze Body, Silicon Seat, 3.2 in W x 5.3 in H, Domestic

High-capacity heating system valves with female inlet and standard or expanded female outlet. Elevated seat for drainage of water away from seat area. Entire pressure range is National Board capacity certified.

Specifications

BrandApollo™
Actuator TypeLift Handle
Body MaterialBronze
End StyleFNPT
Nominal Size3/4 in
Series10-600
Temperature Rating250 deg F
Domestic/ImportDomestic
Pressure Rating70 psig
Dimensions3.2 in W x 5.3 in H
MediaWater
Set Pressure70 psig
Softgoods MaterialSilicon Seat
Weight2.32 lbs
Standards ApprovalsAISI 12L14 Spring Washer,ASME Section IV Heating Boilers,ASTM B584 Body,CE Marked,CRN 0G8547.5C,NB Certified,Pressure Equipment Directive 2014/68/EU (PED)

Item Features

  • High Btu capacity rating
  • Spring cage
  • Protects against excessive water pressure due to failure of controls to regulate Btu input
  • Corrosion resistant construction
  • Fabric reinforced molded diaphragm isolates spring from water at all times
  • ASME HV rating - 90% of actual capacity at 10% overpressure
  • Standard outlet
