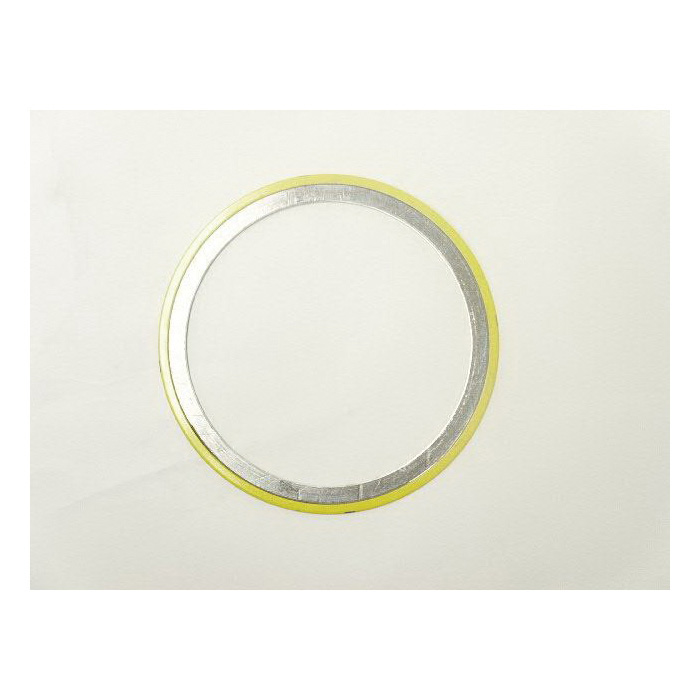

APG 7GSW4B0150 Style 7GSW4 RWI Spiral Wound Gasket, 1-1/2 in Nominal, Class 300/400/600 Class, 304 Stainless Steel/Graphite

CBPN:7097

MPN:7GSW4B0150

Price:
$7.76 / EA

DESCRIPTION

APG Spiral Wound Gasket, RWI, Series: Style 7GSW4, 1-1/2 in Nominal, Class: Class 300/400/600, 304 Stainless Steel/Graphite

Spiral wound gaskets are special semi-metallic gaskets of great strength and resilience, therefore they are suitable for use under heavy operating conditions. Manufactured by spiral winding V-shaped metal strip and strip of non-metallic filler material. Spiral wound gaskets can be reinforced with an outer centering ring and/or inner retaining ring. Used for sealing flange joints, manhole and handhole covers, tube covers, boilers, heat exchangers, pressure vessels, pumps, compressors and valves.

APG 7GSW4B0150 Style 7GSW4 RWI Spiral Wound Gasket, 1-1/2 in Nominal, Class 300/400/600 Class, 304 Stainless Steel/Graphite

CBPN:7097

MPN:7GSW4B0150

Price:
$7.76 / EA

APG logo

DESCRIPTION

APG Spiral Wound Gasket, RWI, Series: Style 7GSW4, 1-1/2 in Nominal, Class: Class 300/400/600, 304 Stainless Steel/Graphite

Spiral wound gaskets are special semi-metallic gaskets of great strength and resilience, therefore they are suitable for use under heavy operating conditions. Manufactured by spiral winding V-shaped metal strip and strip of non-metallic filler material. Spiral wound gaskets can be reinforced with an outer centering ring and/or inner retaining ring. Used for sealing flange joints, manhole and handhole covers, tube covers, boilers, heat exchangers, pressure vessels, pumps, compressors and valves.

Specifications

BrandAPG
Weight0.22 lbs
Nominal Size1-1/2 in
ClassClass 300/400/600
Material304 Stainless Steel/Graphite
Manufacturer NameAPG
SeriesStyle 7GSW4
TypeRWI

Item Features

  • Graphite filler
  • 1/8 in carbon steel centering ring
