APG 13880FF125A0400FC

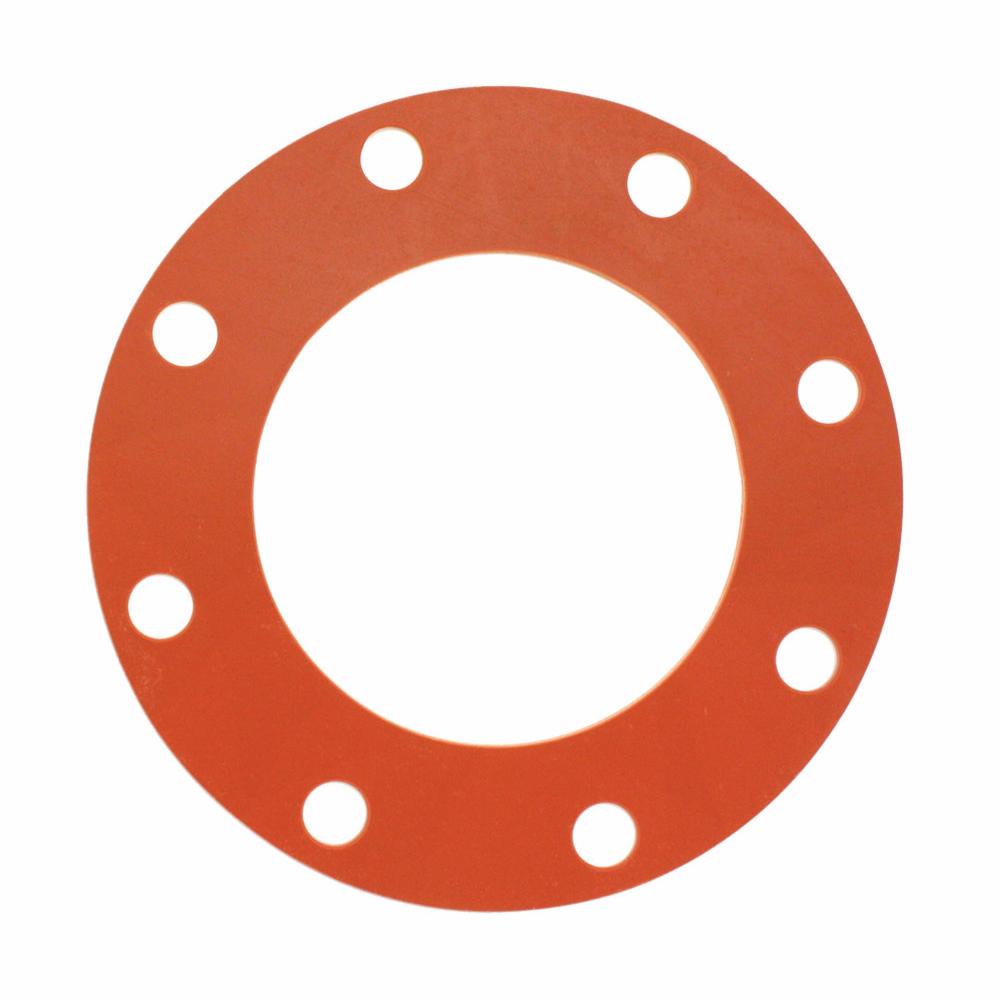

APG 13880FF125A0400FC Full Face Gasket, Styrene Butadiene Rubber, 4 in Nominal, 9 in OD x 1/8 in THK, Class 150, Domestic

CBPN:57784

MPN:13880FF125A0400FC

Price:
$6.36 / EA

DESCRIPTION

APG Gasket, Full Face, 4 in Nominal, 4-1/2 in Inside Dia, 9 in Outside Dia, 1/8 in Thickness, 8 Bolt Holes, 3/4 in, Class: Class 150, -10 to 200 deg F, Styrene Butadiene Rubber, Smooth, Red, Domestic

APG 13880FF125A0400FC Full Face Gasket, Styrene Butadiene Rubber, 4 in Nominal, 9 in OD x 1/8 in THK, Class 150, Domestic

CBPN:57784

MPN:13880FF125A0400FC

Price:
$6.36 / EA

APG logo

DESCRIPTION

APG Gasket, Full Face, 4 in Nominal, 4-1/2 in Inside Dia, 9 in Outside Dia, 1/8 in Thickness, 8 Bolt Holes, 3/4 in, Class: Class 150, -10 to 200 deg F, Styrene Butadiene Rubber, Smooth, Red, Domestic

Specifications

BrandAPG
Weight0.31 lbs
MaterialStyrene Butadiene Rubber
Nominal Size4 in
Outside Diameter9 in
Thickness1/8 in
TypeFull Face
ClassClass 150
Bolt Hole Size3/4 in
ColorRed
FinishSmooth
Inside Diameter4-1/2 in
Manufacturer NameAPG
Number of Bolt Holes8
Temperature Rating-10 to 200 deg F
ApplicationFor heating and plumbing trades
Domestic/ImportDomestic
Country of OriginUS

Item Features

  • Styrene butadiene rubber sheet
  • Recommended for low applications such as washers and gaskets for the heating and plumbing trades
  • Low cost flange gasket material
  • Non-oil resistant compound that resists flow under compression
  • Offers moderate to good performance against low pressure
  • Good aging and abrasion resistance
  • Easily conforms to uneven flange surfaces
  • 7-1/2 in bolt hole circle
  • 500 psi tensile strength
  • 75 +/- 5 Durometer meter hardness shore A
