CNA 750 Raised Face Gasket

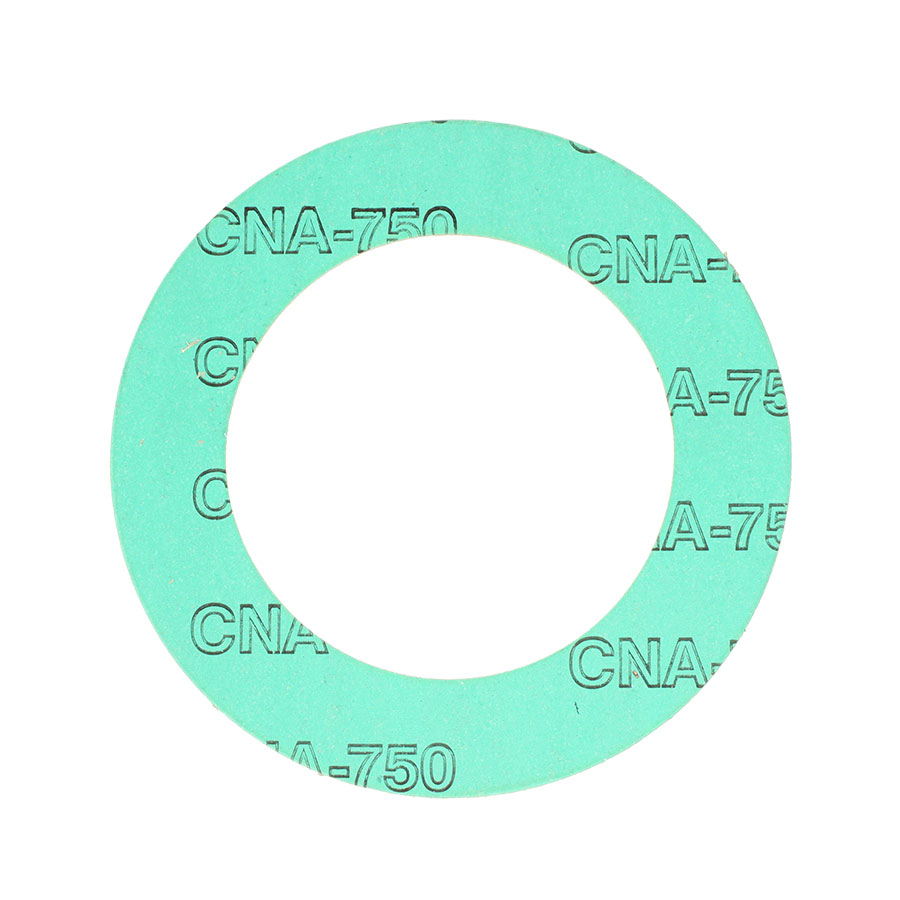

APG 13860RF062A0600 CNA-750 Raised Face Gasket, Non-Asbestos, 6 in Nominal, 8-3/4 in OD x 1/16 in THK, Class 150, Domestic

CBPN:7032

MPN:13860RF062A0600

Price:
$5.90 / EA

DESCRIPTION

APG Gasket, Raised Face, Series: CNA-750, 6 in Nominal, 6-5/8 in Inside Dia, 8-3/4 in Outside Dia, 1/16 in Thickness, Class: Class 150, Non-Asbestos, Domestic

APG 13860RF062A0600 CNA-750 Raised Face Gasket, Non-Asbestos, 6 in Nominal, 8-3/4 in OD x 1/16 in THK, Class 150, Domestic

CBPN:7032

MPN:13860RF062A0600

Price:
$5.90 / EA

APG logo

DESCRIPTION

APG Gasket, Raised Face, Series: CNA-750, 6 in Nominal, 6-5/8 in Inside Dia, 8-3/4 in Outside Dia, 1/16 in Thickness, Class: Class 150, Non-Asbestos, Domestic

Specifications

BrandAPG
Weight0.09 lbs
MaterialNon-Asbestos
Nominal Size6 in
Outside Diameter8-3/4 in
Thickness1/16 in
TypeRaised Face
ClassClass 150
Inside Diameter6-5/8 in
Manufacturer NameAPG
SeriesCNA-750
Domestic/ImportDomestic
Country of OriginUS
Standards and ApprovalsASTM F152

Item Features

  • Nitrile bound non-asbestos gasket material
  • Displays good torque retention and excellent creep resistance
  • Good resistance to oil, solvents, and many other media
  • Change in tensile strength 25% maximum decrease
  • 1670 psi typical tensile strength
