APG 13860FF062A0400

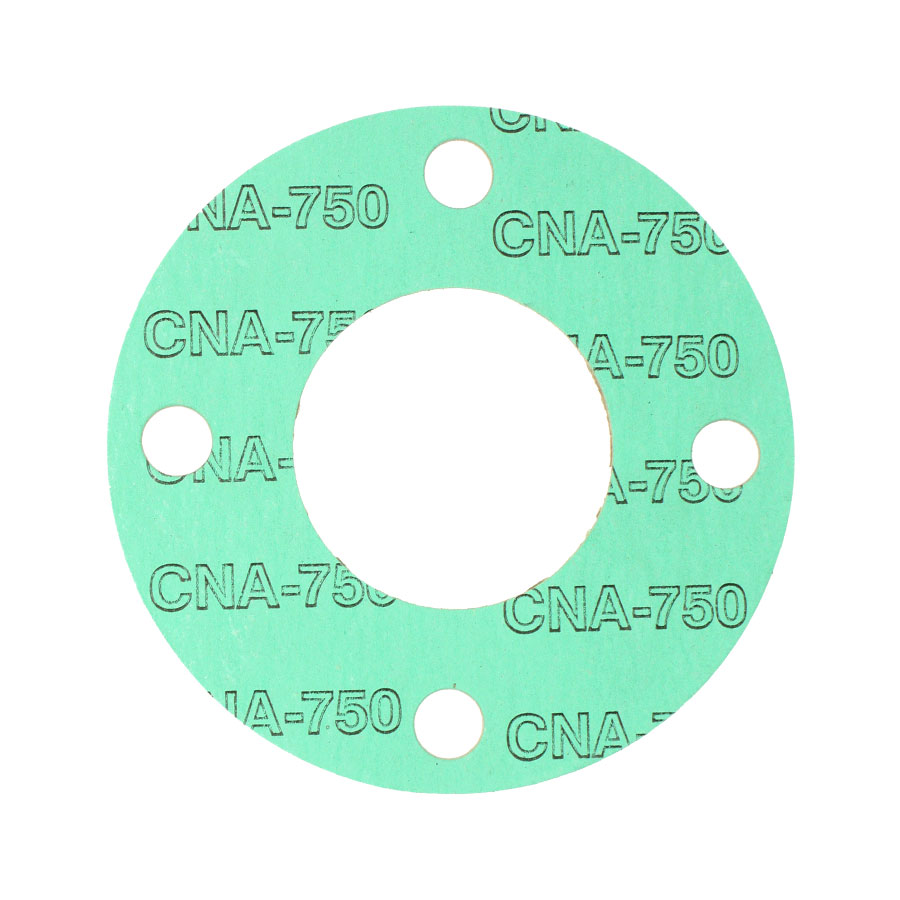

APG 13860FF062A0400 CNA-750 Full Face Gasket, Non-Asbestos, 4 in Nominal, 9 in OD x 1/16 in THK, Class 150, Domestic

CBPN:7057

MPN:13860FF062A0400

Price:
$7.02 / EA

DESCRIPTION

APG Gasket, Full Face, Series: CNA-750, 4 in Nominal, 4-1/2 in Inside Dia, 9 in Outside Dia, 1/16 in Thickness, 8 Bolt Holes, 3/4 in, Class: Class 150, Non-Asbestos, Domestic

APG 13860FF062A0400 CNA-750 Full Face Gasket, Non-Asbestos, 4 in Nominal, 9 in OD x 1/16 in THK, Class 150, Domestic

CBPN:7057

MPN:13860FF062A0400

Price:
$7.02 / EA

APG logo

DESCRIPTION

APG Gasket, Full Face, Series: CNA-750, 4 in Nominal, 4-1/2 in Inside Dia, 9 in Outside Dia, 1/16 in Thickness, 8 Bolt Holes, 3/4 in, Class: Class 150, Non-Asbestos, Domestic

Specifications

BrandAPG
Weight0.15 lbs
MaterialNon-Asbestos
Nominal Size4 in
Outside Diameter9 in
Thickness1/16 in
TypeFull Face
ClassClass 150
Bolt Hole Size3/4 in
Inside Diameter4-1/2 in
Manufacturer NameAPG
Number of Bolt Holes8
SeriesCNA-750
Domestic/ImportDomestic
Country of OriginUS
Standards and ApprovalsASTM F152

Item Features

  • Nitrile bound non-asbestos gasket material
  • Displays good torque retention and excellent creep resistance
  • Good resistance to oil, solvents, and many other media
  • Change in tensile strength 25% maximum decrease
  • 7-1/2 in bolt hole circle
  • 1670 psi typical tensile strength
