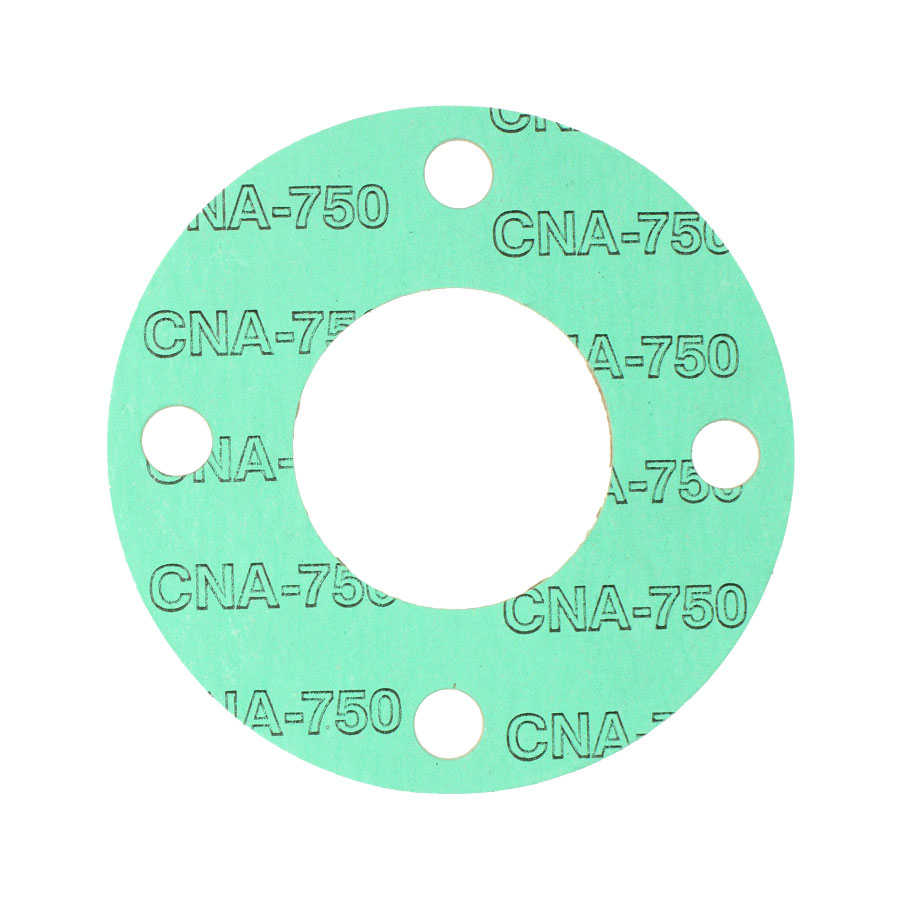

CNA 750 Full Face Gasket

APG 13860FF062A0300 CNA-750 Full Face Gasket, Non-Asbestos, 3 in Nominal, 7-1/2 in OD x 1/16 in THK, Class 150, Domestic

CBPN:7056

MPN:13860FF062A0300

Price:
$4.91 / EA

DESCRIPTION

APG Gasket, Full Face, Series: CNA-750, 3 in Nominal, 3-1/2 in Inside Dia, 7-1/2 in Outside Dia, 1/16 in Thickness, 4 Bolt Holes, 3/4 in, Class: Class 150, Non-Asbestos, Domestic

APG 13860FF062A0300 CNA-750 Full Face Gasket, Non-Asbestos, 3 in Nominal, 7-1/2 in OD x 1/16 in THK, Class 150, Domestic

CBPN:7056

MPN:13860FF062A0300

Price:
$4.91 / EA

APG logo

DESCRIPTION

APG Gasket, Full Face, Series: CNA-750, 3 in Nominal, 3-1/2 in Inside Dia, 7-1/2 in Outside Dia, 1/16 in Thickness, 4 Bolt Holes, 3/4 in, Class: Class 150, Non-Asbestos, Domestic

Specifications

BrandAPG
Weight0.11 lbs
MaterialNon-Asbestos
Nominal Size3 in
Outside Diameter7-1/2 in
Thickness1/16 in
TypeFull Face
ClassClass 150
Bolt Hole Size3/4 in
Inside Diameter3-1/2 in
Manufacturer NameAPG
Number of Bolt Holes4
SeriesCNA-750
Domestic/ImportDomestic
Country of OriginUS
Standards and ApprovalsASTM F152

Item Features

  • Nitrile bound non-asbestos gasket material
  • Displays good torque retention and excellent creep resistance
  • Good resistance to oil, solvents, and many other media
  • Change in tensile strength 25% maximum decrease
  • 6 in bolt hole circle
  • 1670 psi typical tensile strength
