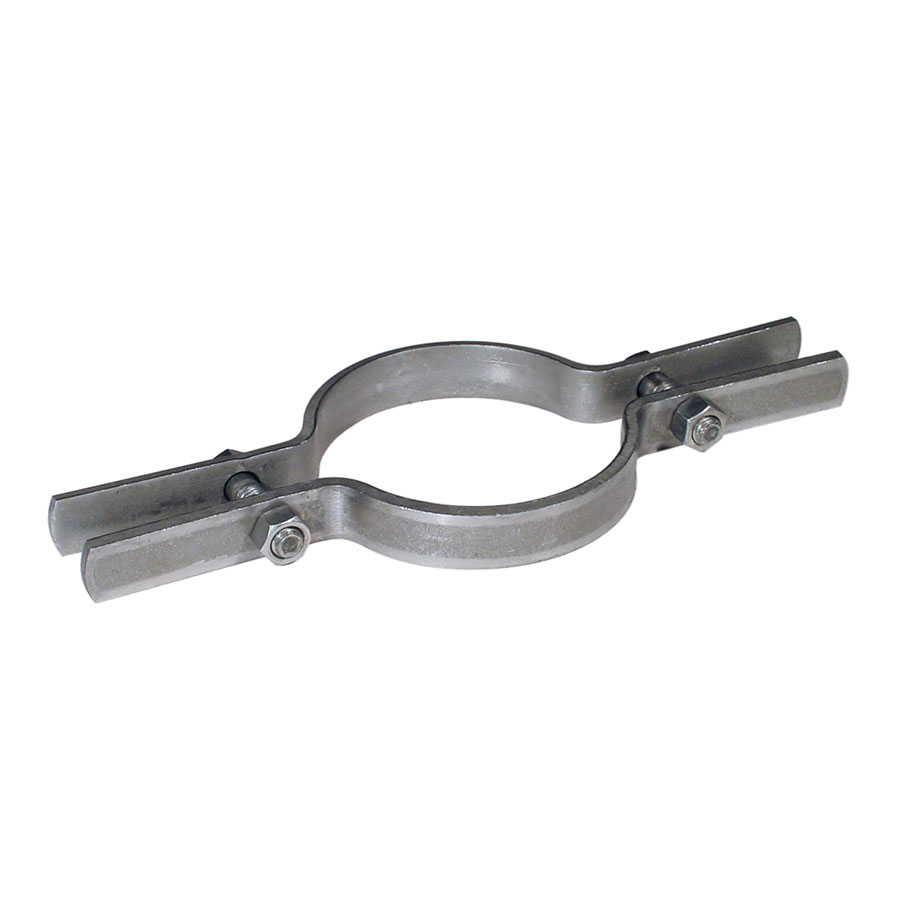

Anvil® 0500361100 FIG 261 Pipe Riser Clamp, 4 in Pipe, 1/2 in Dia Bolt, 750 lb Load, Carbon Steel, Galvanized, Domestic
CBPN: 38562
UPC:690291146800
MPN:0500361100
Price:
$16.42 / EA
DESCRIPTION
Anvil® Pipe Riser Clamp, Series: FIG 261, 4 in Pipe, 1/2 in Bolt Dia, 750 lb, 450 deg F, 46 ft-lb, Carbon Steel, Galvanized, 12-7/8 in L x 1 in W, Domestic
Anvil® 0500361100 FIG 261 Pipe Riser Clamp, 4 in Pipe, 1/2 in Dia Bolt, 750 lb Load, Carbon Steel, Galvanized, Domestic
CBPN: 38562
MPN:0500361100
UPC:690291146800
Price:
$16.42 / EA
DESCRIPTION
Anvil® Pipe Riser Clamp, Series: FIG 261, 4 in Pipe, 1/2 in Bolt Dia, 750 lb, 450 deg F, 46 ft-lb, Carbon Steel, Galvanized, 12-7/8 in L x 1 in W, Domestic
Specifications
Brand: Anvil®
Weight: 2.24 lbs
Pipe Size: 4 in
Bolt Diameter: 1/2 in
Load Capacity: 750 lb
Material: Carbon Steel
Finish: Galvanized
Dimensions: 12-7/8 in L x 1 in W
Manufacturer Name: ASC Engineered Solutions
Series: FIG 261
Temperature Rating: 450 deg F
Torque Rating: 46 ft-lb
Application: For support of stationary steel pipe risers, cast iron pipe or conduit
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ANSI/MSS SP-69/58 | cULus Listed
Item Features
- For support of stationary steel pipe risers, cast iron pipe or conduit.
- Clamp is fitted and bolted preferably below a coupling, hub or welded lugs on steel pipe
- Bolt torques should be PEX industry standards, clamp is designed for standard steel pipe OD and this must be considered in sizing the riser for other types of piping
