AnvilĀ® 0500173034

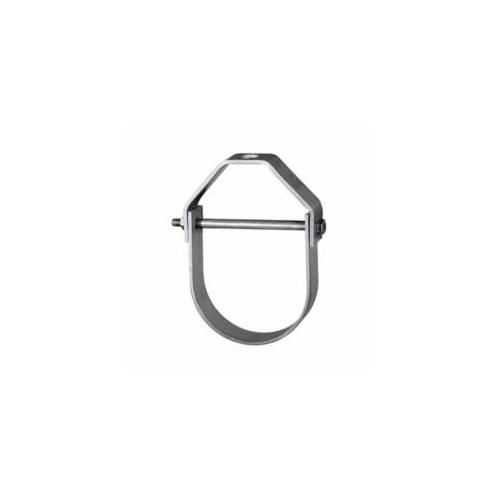

AnvilĀ® 0500173034 FIG 260 Adjustable Clevis Hanger, 1 in Pipe, 3/8 in Rod, 730 lb Load, Carbon Steel, Black Oxide

CBPN:3741

UPC:690291140495

MPN:0500173034

Price:
$3.03Ā /Ā EA

DESCRIPTION

AnvilĀ® Clevis Hanger, Adjustable, Series: FIG 260, 1 in Pipe, 3/8 in Rod, 730 lb, Carbon Steel, Black Oxide

AnvilĀ® 0500173034 FIG 260 Adjustable Clevis Hanger, 1 in Pipe, 3/8 in Rod, 730 lb Load, Carbon Steel, Black Oxide

CBPN:3741

MPN:0500173034

UPC:690291140495

Price:
$3.03Ā /Ā EA
Ā
Anvil Logo

DESCRIPTION

AnvilĀ® Clevis Hanger, Adjustable, Series: FIG 260, 1 in Pipe, 3/8 in Rod, 730 lb, Carbon Steel, Black Oxide

Specifications

Brand:Ā AnvilĀ®
Weight:Ā 0.37lbs
Material:Ā Carbon Steel
Series:Ā FIG 260
Type:Ā Adjustable
Finish:Ā Black Oxide
Load Capacity:Ā 730 lb
Pipe Size:Ā 1 in
Rod Size:Ā 3/8 in
Manufacturer Name:Ā ASC Engineered Solutions
Application:Ā For suspension of stationary pipe lines
Country of Origin:Ā US
Standards and Approvals:Ā A-A-1192A (Type 1),ANSI/MSS SP-69/SP-58 (Type 1),cULus Listed,FM Approved,WW-H-171-E (Type 1),UL/ULC Listed

Item Features

  • Design has yoke on outside of lower U-strap so yoke cannot slide toward center of bolt, thus bending of bolt is minimized.
  • Hanger load nut above clevis must be tightened securely to assure proper hanger performance
  • Vertical adjustment without removing pipe may be made from 3/8 in through 5-1/8 in, varying with the size of clevis
  • Tighten upper nut after adjustment
  • Design has yoke on outside of lower U-strap so yoke cannot slide toward center of bolt, thus bending of bolt is minimized
  • Sizes 5 in and up have rod and two nuts instead of bolt and nut, thread length on clevis rod is such that the thread locks the nuts in place and threads are not in shear plane
