AnvilĀ® 0500017132

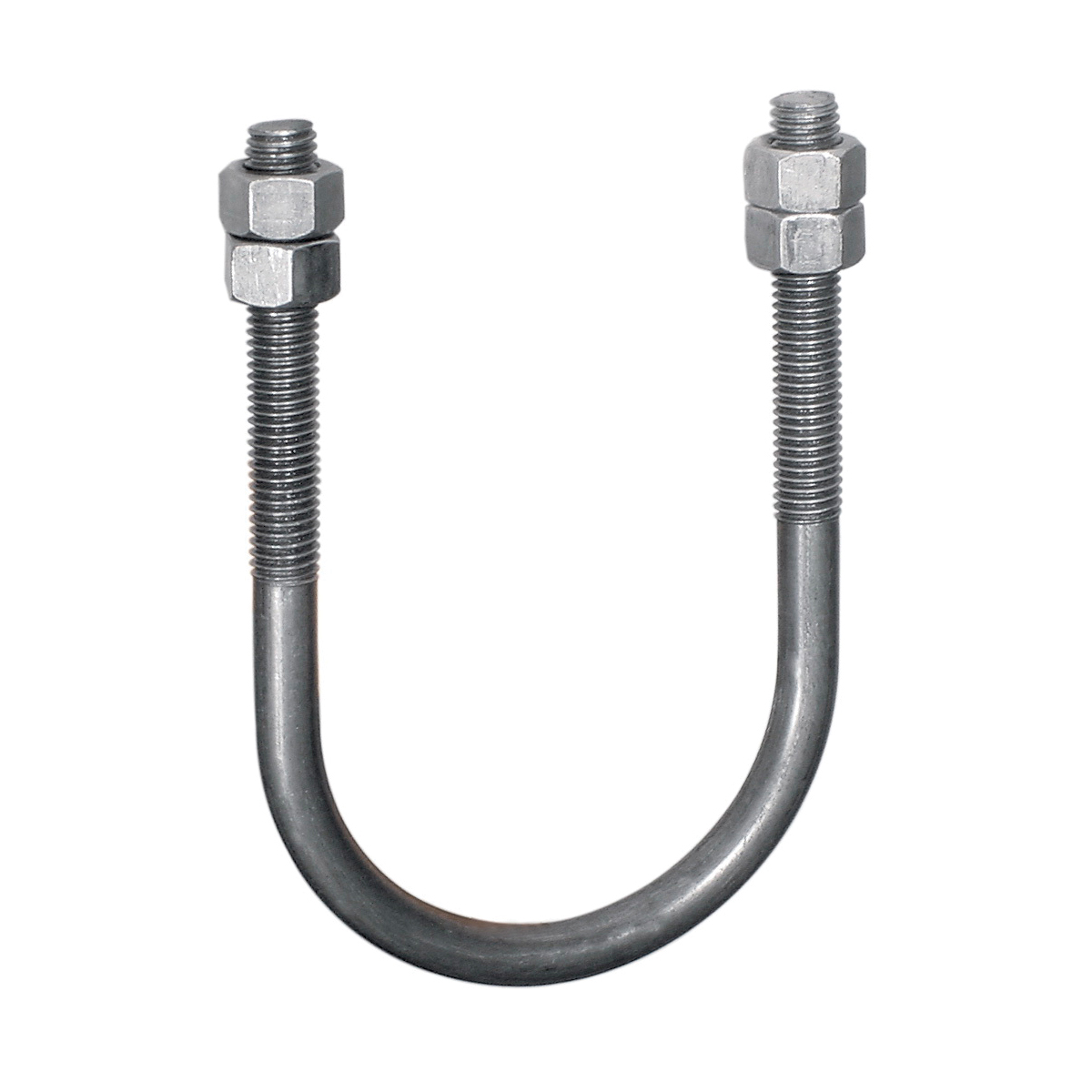

AnvilĀ® 0500017132 FIG 137 Standard U-Bolt, 8 in Pipe, 5/8 in, Black, Carbon Steel

CBPN:3815

UPC:690291136269

MPN:0500017132

Price:
$24.47Ā /Ā EA

DESCRIPTION

AnvilĀ® U-Bolt, Standard, Series: FIG 137, Measurement System: Imperial, 5/8 in, 8-3/4 in Inside Width, Carbon Steel, 3-1/2 in Thread Length, Black, 8 in Pipe, 4320 lb Tensile

AnvilĀ® 0500017132 FIG 137 Standard U-Bolt, 8 in Pipe, 5/8 in, Black, Carbon Steel

CBPN:3815

MPN:0500017132

UPC:690291136269

Price:
$24.47Ā /Ā EA
Ā
Anvil Logo

DESCRIPTION

AnvilĀ® U-Bolt, Standard, Series: FIG 137, Measurement System: Imperial, 5/8 in, 8-3/4 in Inside Width, Carbon Steel, 3-1/2 in Thread Length, Black, 8 in Pipe, 4320 lb Tensile

Specifications

Brand:Ā AnvilĀ®
Weight:Ā 2.33lbs
Material:Ā Carbon Steel
Series:Ā FIG 137
Type:Ā Standard
Diameter - Thread Size:Ā 5/8 in
Finish:Ā Black
Measurement System:Ā Imperial
Pipe Size:Ā 8 in
Tensile Strength:Ā 4320 lb
Inside Width:Ā 8-3/4 in
Thread Length:Ā 3-1/2 in
Manufacturer Name:Ā ASC Engineered Solutions
Includes:Ā (4) 5/8 in Hex Nuts
Application:Ā Power, Process Plant, Marine Service
Country of Origin:Ā US
Standards and Approvals:Ā ANSI/MSS SP-69/SP-58 (Type 24),Federal Specification A-A-1192A (Type 24),WW-H-171-E (Type 24)

Item Features

  • Recommended for support, or guide of heavy loads; often employed in power, process plant and marine service.
  • For support or guide of heavy loads often employed in power, process plant and marine service
  • 1080 lb side load at 650 deg F
  • 4320 lb normal load at 650 deg F, 3382 lb normal load at 750 deg F
