Anvil® 0500017108

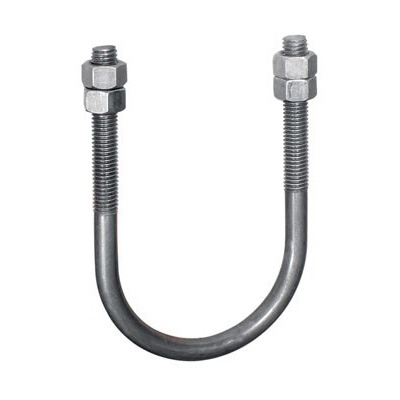

Anvil® 0500017108 FIG 137 Standard U-Bolt, 4 in Pipe, 1/2 in, Black, Carbon Steel

CBPN:3812

UPC:690291136238

MPN:0500017108

Price:
$9.58 / EA

DESCRIPTION

Anvil® U-Bolt, Standard, Series: FIG 137, Measurement System: Imperial, 1/2 in Thread, 4-9/16 in Inside Width, Carbon Steel, 3 in Thread Length, Black, 4 in Pipe, 2700 lb Tensile Strength

Anvil® 0500017108 FIG 137 Standard U-Bolt, 4 in Pipe, 1/2 in, Black, Carbon Steel

CBPN:3812

MPN:0500017108

UPC:690291136238

Price:
$9.58 / EA

Anvil Logo

DESCRIPTION

Anvil® U-Bolt, Standard, Series: FIG 137, Measurement System: Imperial, 1/2 in Thread, 4-9/16 in Inside Width, Carbon Steel, 3 in Thread Length, Black, 4 in Pipe, 2700 lb Tensile Strength

Specifications

BrandAnvil®
Weight0.9lbs
Pipe Size4 in
Diameter - Thread Size1/2 in
FinishBlack
TypeStandard
MaterialCarbon Steel
Inside Width4-9/16 in
Manufacturer NameASC Engineered Solutions
Measurement SystemImperial
SeriesFIG 137
Tensile Strength2700 lb
Thread Length3 in
Includes(4) 1/2 in Hex Nuts
Country of OriginUS
Standards and ApprovalsANSI/MSS SP-69/SP-58 (Type 24) | Federal Specification A-A-1192A (Type 24) | WW-H-171-E (Type 24)

Item Features

  • Recommended for support, or guide of heavy loads; often employed in power, process plant and marine service.
  • For support or guide of heavy loads often employed in power, process plant and marine service
  • 675 lb side load at 650 deg F
  • 2700 lb normal load at 650 deg F, 2114 lb normal load at 750 deg F
