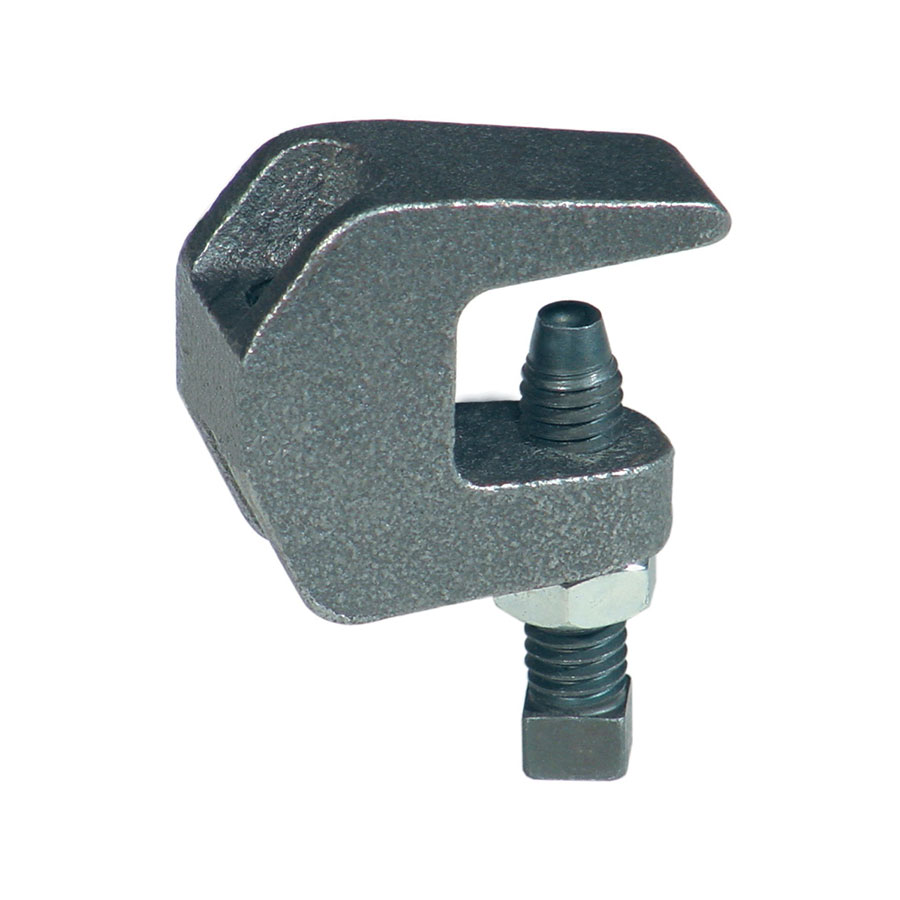

Anvil® 0500009113 FIG 92 Universal Standard Throat C-Clamp, 1/2 in Rod, 950 lb Top/760 lb Bottom Load, Ductile Iron, Zinc Plated
CBPN: 18040
UPC:690291317187
MPN:0500009113
Price:
$6.47 / EA
DESCRIPTION
Anvil® C-Clamp, Universal Standard Throat, Series: FIG 92, 1/2 in Rod, 950 lb Top/760 lb Bottom, 125 in-lb Torque, Ductile Iron, Zinc Plated, 450 deg F
Anvil® 0500009113 FIG 92 Universal Standard Throat C-Clamp, 1/2 in Rod, 950 lb Top/760 lb Bottom Load, Ductile Iron, Zinc Plated
CBPN: 18040
MPN:0500009113
UPC:690291317187
Price:
$6.47 / EA
DESCRIPTION
Anvil® C-Clamp, Universal Standard Throat, Series: FIG 92, 1/2 in Rod, 950 lb Top/760 lb Bottom, 125 in-lb Torque, Ductile Iron, Zinc Plated, 450 deg F
Specifications
Brand: Anvil®
Weight: 0.63 lbs
Rod Size: 1/2 in
Load Capacity: 950 lb Top/760 lb Bottom
Material: Ductile Iron
Finish: Zinc Plated
Manufacturer Name: ASC Engineered Solutions
Series: FIG 92
Specifications: 125 in-lb Torque
Temperature Rating: 450 deg F
Type: Universal Standard Throat
Includes: 1/2 in Set Screw
Country of Origin: US
Standards and Approvals: cULus Listed | FM Approved
Item Features
- Recommended for use under roof installations with bar joist type construction, or for attachment to the top or bottom flange of structural shapes where the vertical hanger rod is required to be offset from the edge of the flange and where the thickness of
- They may be attached to horizontal flanges of structural members in either the top beam or bottom beam positions
- Secured in place by a cup-pointed set screw tightened against the flange, a jam nut is provided for tightening the set screw against the body casting
- Thru tapping of the body casting permits extended adjustment of the threaded rod
- Can be used with Fig 89X retaining clip for seismic applications
- Recommended for use under roof installations with bar joist type construction, or for attachment to the top or bottom flange of structural shapes where the vertical hanger rod is required to be offset from the edge of the flange and where the thickness of joist or flange does not exceed 3/4 in
- Standard throat universal c-type clamp
- Ductile iron, hardened steel cup point set screw and locknut
