AnvilĀ® 0500009063

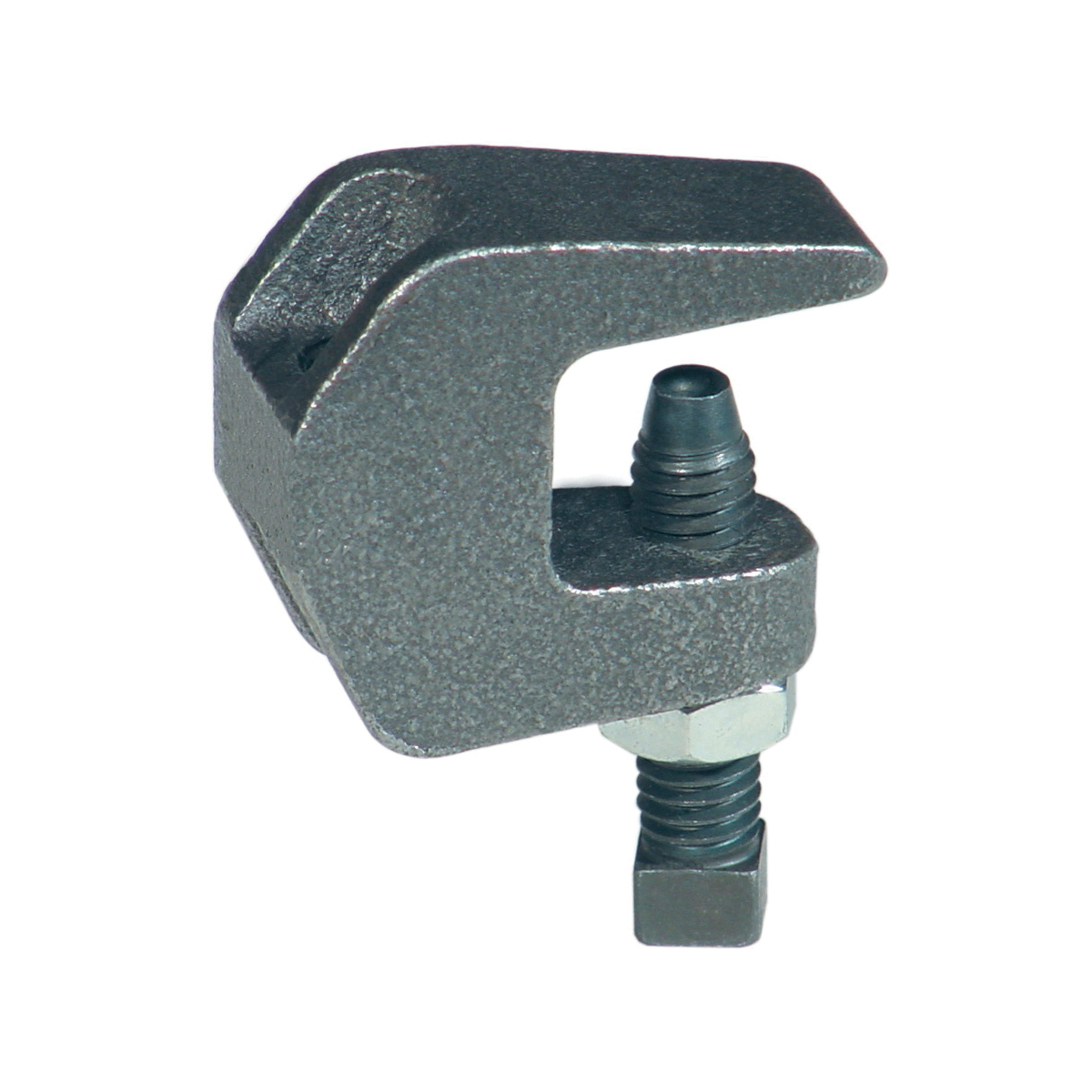

AnvilĀ® 0500009063 FIG 92 Universal Standard Throat C-Clamp With Lock Nut, 3/8 in Rod, 500 lb Top/250 lb Bottom Load, Ductile Iron, Plain

CBPN:3787

UPC:690291134371

MPN:0500009063

Price:
$2.25Ā /Ā EA

DESCRIPTION

AnvilĀ® C-Clamp, Universal Standard Throat, Series: FIG 92, 3/8 in Rod, 500 lb Top/250 lb Bottom, 60 in-lbs Torque, Ductile Iron, Plain, 450 deg F

AnvilĀ® 0500009063 FIG 92 Universal Standard Throat C-Clamp With Lock Nut, 3/8 in Rod, 500 lb Top/250 lb Bottom Load, Ductile Iron, Plain

CBPN:3787

MPN:0500009063

UPC:690291134371

Price:
$2.25Ā /Ā EA
Ā
Anvil Logo

DESCRIPTION

AnvilĀ® C-Clamp, Universal Standard Throat, Series: FIG 92, 3/8 in Rod, 500 lb Top/250 lb Bottom, 60 in-lbs Torque, Ductile Iron, Plain, 450 deg F

Specifications

Brand:Ā AnvilĀ®
Weight:Ā 0.29 lbs
Rod Size:Ā 3/8 in
Load Capacity:Ā 500 lb Top/250 lb Bottom
Material:Ā Ductile Iron
Finish:Ā Plain
Manufacturer Name:Ā ASC Engineered Solutions
Series:Ā FIG 92
Specifications:Ā 60 in-lbs Torque
Temperature Rating:Ā 450 deg F
Type:Ā Universal Standard Throat
Includes:Ā 3/8 in Set Screw
Country of Origin:Ā US
Standards and Approvals:Ā cULus Listed | FM Approved

Item Features

  • Recommended for use under roof installations with bar joist type construction, or for attachment to the top or bottom flange of structural shapes where the vertical hanger rod is required to be offset from the edge of the flange and where the thickness of
  • They may be attached to horizontal flanges of structural members in either the top beam or bottom beam positions
  • Secured in place by a cup-pointed set screw tightened against the flange, a jam nut is provided for tightening the set screw against the body casting
  • Thru tapping of the body casting permits extended adjustment of the threaded rod
  • Can be used with Fig 89X retaining clip for seismic applications
  • Recommended for use under roof installations with bar joist type construction, or for attachment to the top or bottom flange of structural shapes where the vertical hanger rod is required to be offset from the edge of the flange and where the thickness of joist or flange does not exceed 3/4 in
  • Standard throat universal c-type clamp
  • Ductile iron, hardened steel cup point set screw and locknut
