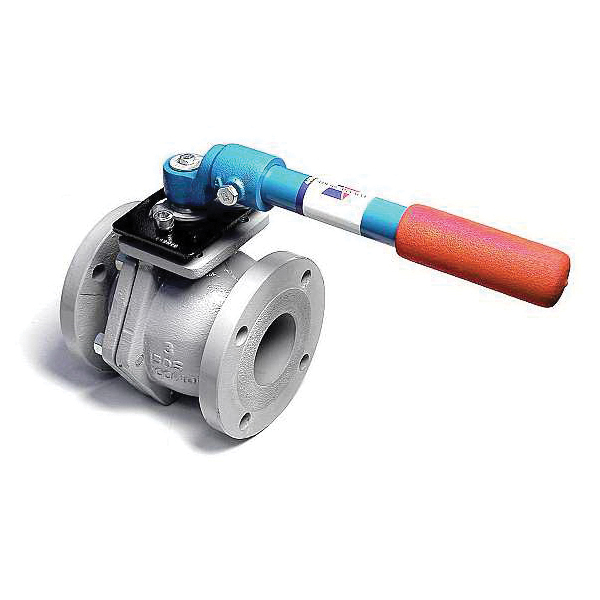

American Valve® 4000D 3" Ball Valve, 3 in Nominal, Flanged End Style, Ductile Iron Body, Full Port, PTFE Softgoods, Import
CBPN: 277170
UPC:611918003603
MPN:4000D 3"
DESCRIPTION
American Valve® Ball Valve, Series: 4000D, 3 in Nominal, Flanged End Style, 300 psi WOG/150 psi WSP Pressure, 366 deg F, Full Port, Media: Gas, 3 in Orifice, Handle Actuator, Stainless Steel Ball, 8 in Inlet to Outlet Length, 8-1/4 in Top to Inlet Center, Ductile Iron Body, PTFE/Stainless Steel Trim, PTFE Softgoods, Import
Replaces carbon steel ball valves, gate valves and eccentric plug valves. With 80000 psi tensile strength, it's stronger than steel. Ductile iron easily out-performs carbon steel in water applications. With dramatically lower torque and the corrosion-resistance of PFA fused 0.008 in into the solid stainless steel ball, you'll understand why thousands of valve buyers have switched to the 4000D.
American Valve® 4000D 3" Ball Valve, 3 in Nominal, Flanged End Style, Ductile Iron Body, Full Port, PTFE Softgoods, Import
CBPN: 277170
MPN:4000D 3"
UPC:611918003603
DESCRIPTION
American Valve® Ball Valve, Series: 4000D, 3 in Nominal, Flanged End Style, 300 psi WOG/150 psi WSP Pressure, 366 deg F, Full Port, Media: Gas, 3 in Orifice, Handle Actuator, Stainless Steel Ball, 8 in Inlet to Outlet Length, 8-1/4 in Top to Inlet Center, Ductile Iron Body, PTFE/Stainless Steel Trim, PTFE Softgoods, Import
Replaces carbon steel ball valves, gate valves and eccentric plug valves. With 80000 psi tensile strength, it's stronger than steel. Ductile iron easily out-performs carbon steel in water applications. With dramatically lower torque and the corrosion-resistance of PFA fused 0.008 in into the solid stainless steel ball, you'll understand why thousands of valve buyers have switched to the 4000D.
Specifications
Item Features
- PFA fused solid ball
- Blow-out proof stainless steel stem
- Reinforced PTFE seat
- Face to face and flanged dimensions conform to ANSI B16.10 which exactly match end to end dimensions of carbon steel ball valves, ductile iron gate valves and plug valves
- Lockable in full open or closed positions
- Mounting pad for easy actuation
- Adjustable length/removable handles to fit into areas of limited space
- Full port through 6 in
- PTFE packing/seat O-ring
