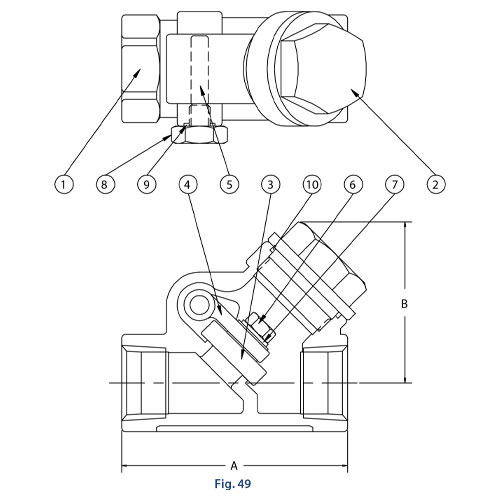

Aloyco FIG 49 Swing Check Valve Line Drawing

ALOYCO 49EC02010 FIG 49 Y-Pattern Swing Check Valve, 1" Nominal, FNPT End Style, 200 CWP, Stainless Steel Body

CBPN: 227933

MPN:49EC02010

Price:
$260.07 / EA

DESCRIPTION

ALOYCO Swing Check Valve, Y-Pattern, Figure 49, 1 in Nominal, FNPT, 200 CWP, CF8M Stainless Steel Body

**This item may be subject to a minimum order quantity.**

ALOYCO 49EC02010 FIG 49 Y-Pattern Swing Check Valve, 1" Nominal, FNPT End Style, 200 CWP, Stainless Steel Body

CBPN: 227933

MPN:49EC02010

Price:
$260.07 / EA

Crane Aloyco Logo

DESCRIPTION

ALOYCO Swing Check Valve, Y-Pattern, Figure 49, 1 in Nominal, FNPT, 200 CWP, CF8M Stainless Steel Body

**This item may be subject to a minimum order quantity.**

Specifications

Brand: Aloyco®
Weight: 1.5 lbs
Nominal Size: 1 in
End Style: FNPT
Pressure Class: 200 lb
Softgoods Material: PTFE
Body Material: Stainless Steel
Inlet to Outlet Length: 3.54 in
Manufacturer Name: Crane ChemPharma Energy
Top to Inlet Center: 2.4 in
Trim Material: API Trim 10 (316SS)
Domestic/Import: Import
Country of Origin: CH
Standards and Approvals: MSS SP-42, ASME B16.34

Item Features

  • Integral Seat
  • Threaded Cap
  • Y-Pattern
  • API Trim 10 (316 SS)
  • 202 CWP
