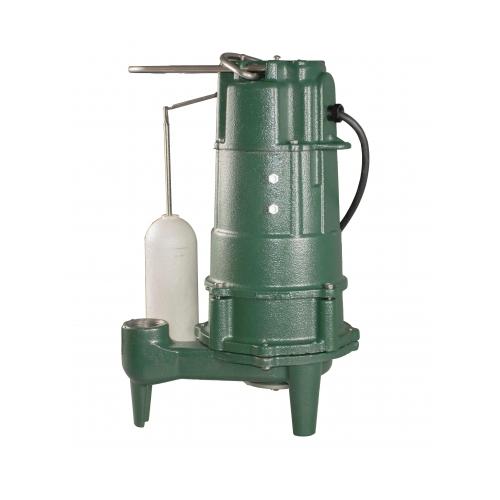

Zoeller® 803-0001 803 Grinder Pump, 35 gpm Max Flow, Automatic, 55 ft Max Head, 115 V, 1 Phase, 1/2 HP
CBPN: 283668
UPC:053514365080
MPN:803-0001
DESCRIPTION
Zoeller® 803-0001, Grinder Pump, Series: 803, 35 gpm Maximum, Automatic/Non Automatic: Automatic, 1-1/4 in NPT Outlet, 55 ft Maximum Head, 1/2 hp, 115 V, 7 to 11 A, 60 Hz Frequency, 1 ph, 3400 rpm Motor, 15 ft Cord, Non-Clogging Vortex Impeller, 130 deg F, Upper and Lower Ball Bearing, Cast Iron, 17-1/4 in H x 8-29/32 in W x 13 in L Dimensions
The Zoeller Shark Series Model M803 Grinder Pump is a powerful, professional-grade solution engineered to efficiently handle raw sewage in residential and light commercial sewage ejector applications. Featuring a durable 1/2 HP motor and fully automatic operation, the M803 is a proven and reliable grinder pump trusted by contractors and installers alike.
Equipped with industry-leading Tri-Slice® cutter technology, the M803 features a rotating stainless steel cutter and a stationary cutter plate that work together to shred solids into fine particles—down to 1/8 inch. This precision grinding system significantly reduces the risk of clogging and allows for smooth wastewater flow.
The rugged vortex-style impeller effectively transports slurry through the pump housing, minimizing the risk of jamming and promoting long-term reliability.
The M803 uses a solid polypropylene float that won't absorb water over time, maintaining buoyancy to ensure consistent and accurate pump activation. The float-operated switch system enables fully automatic, worry-free performance.
Built to withstand tough sewage conditions, the Model M803 is constructed from corrosion-resistant cast iron, including the switch case, motor housing, pump housing, and base. All external components such as the float guard, handle, switch arm, and hardware are made from non-corrodible stainless steel, offering exceptional durability.
Every Zoeller M803 pump is fully submerged and tested to its published performance curve before shipment, ensuring optimal operation and peace of mind straight out of the box.
Zoeller® 803-0001 803 Grinder Pump, 35 gpm Max Flow, Automatic, 55 ft Max Head, 115 V, 1 Phase, 1/2 HP
CBPN: 283668
MPN:803-0001
UPC:053514365080
DESCRIPTION
Zoeller® 803-0001, Grinder Pump, Series: 803, 35 gpm Maximum, Automatic/Non Automatic: Automatic, 1-1/4 in NPT Outlet, 55 ft Maximum Head, 1/2 hp, 115 V, 7 to 11 A, 60 Hz Frequency, 1 ph, 3400 rpm Motor, 15 ft Cord, Non-Clogging Vortex Impeller, 130 deg F, Upper and Lower Ball Bearing, Cast Iron, 17-1/4 in H x 8-29/32 in W x 13 in L Dimensions
The Zoeller Shark Series Model M803 Grinder Pump is a powerful, professional-grade solution engineered to efficiently handle raw sewage in residential and light commercial sewage ejector applications. Featuring a durable 1/2 HP motor and fully automatic operation, the M803 is a proven and reliable grinder pump trusted by contractors and installers alike.
Equipped with industry-leading Tri-Slice® cutter technology, the M803 features a rotating stainless steel cutter and a stationary cutter plate that work together to shred solids into fine particles—down to 1/8 inch. This precision grinding system significantly reduces the risk of clogging and allows for smooth wastewater flow.
The rugged vortex-style impeller effectively transports slurry through the pump housing, minimizing the risk of jamming and promoting long-term reliability.
The M803 uses a solid polypropylene float that won't absorb water over time, maintaining buoyancy to ensure consistent and accurate pump activation. The float-operated switch system enables fully automatic, worry-free performance.
Built to withstand tough sewage conditions, the Model M803 is constructed from corrosion-resistant cast iron, including the switch case, motor housing, pump housing, and base. All external components such as the float guard, handle, switch arm, and hardware are made from non-corrodible stainless steel, offering exceptional durability.
Every Zoeller M803 pump is fully submerged and tested to its published performance curve before shipment, ensuring optimal operation and peace of mind straight out of the box.
Specifications
Item Features
- The sewer sump pump is available in three different horsepower capacities, enabling you to match the power output to the applications requirements
- This strong grinder pump delivers reliable results over substantial distances, providing maximum user flexibility
- The low price point of this fractional horsepower grinder series ensures affordability and an excellent return on investment
- This design minimizes concerns about the pump overheating or breaking down due to extreme heat generation during extended-use applications
- Three independent cutting channels provide over 250000 cuts per minute
- This feature enables the pump to cut through challenging materials while also providing excellent corrosion protection
- Get the flexibility to select a manually operated or self-directed product based on your needs and applications
- Our factory-tested grinder pumps ensure reliable performance in challenging applications with fewer concerns about mechanical failures
- The Shark grinder pump series features patented technology that is unavailable from competing products and delivers one-of-a-kind performance
- This single-direction grinder pump series comes with warranty coverage from Zoeller Pump Company, giving you extra protection and more peace of mind
- These high-quality grinder pump systems offer a host of advanced features providing numerous benefits for contractors and homeowners
- Cast iron grinder series for difficult residential applications where ejectors struggle
- These fractional-horsepower grinder pumps can handle an entire household of flushable materials
- This Shark product line consists of three high-performing grinder pumps for sewer use
- Plumbing contractors can utilize this cast iron grinder series for demanding residential applications
