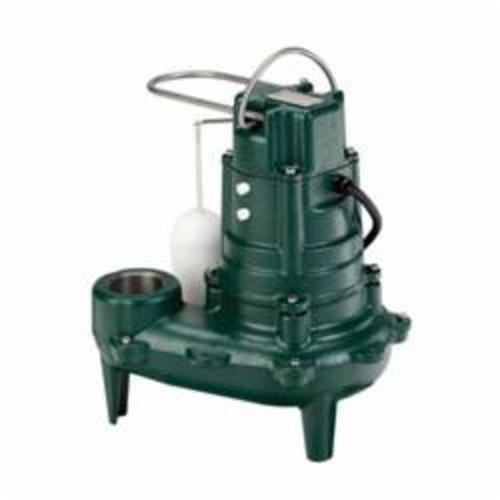

Zoeller® 267-0003 Waste-Mate 260 Submersible Pump, 1/2 hp, 230 VAC, 2 or 3 in NPT Outlet, Cast Iron, 4.7 A, 1 ph
CBPN: 300710
UPC:053514017637
MPN:267-0003
DESCRIPTION
Zoeller® Submersible Pump, Series: Waste-Mate 260, 128 gpm, 2 or 3 in NPT Outlet, 21-1/2 ft Maximum Head, 1/2 hp, 230 VAC, 4.7 A, 60 Hz Frequency, 1 ph, 1750 rpm Motor, 3-Wire Neoprene Cord, Non-Clogging Vortex Impeller, 130 deg F, Sleeve Bearing, Cast Iron, 14-5/16 in H Dimensions
Considered one of America's most popular sump pumps. This robust family of sump pumps is known for reliability, durability and performance. The preset, integral snap-action float switch is engineered for one million mechanical starts. The heat-dissipating cast iron body with epoxy powder coated finish provides maximum pumping performance under the most extreme conditions. With Zoeller® cool run design, the hermetically sealed, oil-filled motor and non-clogging vortex impeller add up to a long-lasting, trouble-free product.
The fully automatic Zoeller Model D267 Sewage Pump is engineered for efficient handling of raw sewage and wastewater. Built for professional-grade performance, the 1/2 HP D267—also known as the “Waste-Mate”—is a proven and dependable automatic solution. Its operation is controlled by a solid, white polypropylene float that remains permanently buoyant, ensuring reliable activation of the pump when needed. Designed with a vortex-style impeller, the D267 can handle 2″ spherical solids with ease. Constructed for durability, its switch case, motor housing, pump housing, and base are all made of rugged cast iron and its identification tag, float guard, handle, switch arm, and hardware are made of non-corrodible stainless steel, making the Model 267 ideal for even the most demanding sewage handling applications. The Zoeller 267-0003 includes a 10 ft cord. Every Zoeller D267 pump is fully submerged and tested to its published performance curve before shipment, ensuring peace of mind straight out of the box and operations that exceed expectations.
Zoeller® 267-0003 Waste-Mate 260 Submersible Pump, 1/2 hp, 230 VAC, 2 or 3 in NPT Outlet, Cast Iron, 4.7 A, 1 ph
CBPN: 300710
MPN:267-0003
UPC:053514017637

DESCRIPTION
Zoeller® Submersible Pump, Series: Waste-Mate 260, 128 gpm, 2 or 3 in NPT Outlet, 21-1/2 ft Maximum Head, 1/2 hp, 230 VAC, 4.7 A, 60 Hz Frequency, 1 ph, 1750 rpm Motor, 3-Wire Neoprene Cord, Non-Clogging Vortex Impeller, 130 deg F, Sleeve Bearing, Cast Iron, 14-5/16 in H Dimensions
Considered one of America's most popular sump pumps. This robust family of sump pumps is known for reliability, durability and performance. The preset, integral snap-action float switch is engineered for one million mechanical starts. The heat-dissipating cast iron body with epoxy powder coated finish provides maximum pumping performance under the most extreme conditions. With Zoeller® cool run design, the hermetically sealed, oil-filled motor and non-clogging vortex impeller add up to a long-lasting, trouble-free product.
The fully automatic Zoeller Model D267 Sewage Pump is engineered for efficient handling of raw sewage and wastewater. Built for professional-grade performance, the 1/2 HP D267—also known as the “Waste-Mate”—is a proven and dependable automatic solution. Its operation is controlled by a solid, white polypropylene float that remains permanently buoyant, ensuring reliable activation of the pump when needed. Designed with a vortex-style impeller, the D267 can handle 2″ spherical solids with ease. Constructed for durability, its switch case, motor housing, pump housing, and base are all made of rugged cast iron and its identification tag, float guard, handle, switch arm, and hardware are made of non-corrodible stainless steel, making the Model 267 ideal for even the most demanding sewage handling applications. The Zoeller 267-0003 includes a 10 ft cord. Every Zoeller D267 pump is fully submerged and tested to its published performance curve before shipment, ensuring peace of mind straight out of the box and operations that exceed expectations.
Specifications
Item Features
- Float operated 2-pole mechanical switch
- Durable cast construction, ASTM Class 25 cast iron switch case and pump housing
- Non-clogging vortex impeller design, engineered plastic impeller with metal inserts (1 ph)
- Not affected by materials normally found in drainage and sewage pumps
- Stainless steel screws, bolts, handle, guard, arm and seal assembly
- Neoprene square ring and gasket
- Oil filled, hermetically sealed motors
- Oil-lubricated bearings
- Carbon and ceramic shaft seal
- Corrosion-resistant, powder coated epoxy finish
- Completely submersible
- Watertight and dust-tight
- Automatic reset thermal overload protection (1 ph only)
- 12 in on point, 4 in off point
- High water alarms available
- 10 in auto/15 in non auto, 3-wire neoprene cord and plug
- Cap/motor housing/pump housing cast iron, base cast iron or engineered plastic
- Upper and lower sleeve bearing
- Engineered plastic with metal insert impeller, Stainless steel hardware, AISI 1215 cold rolled steel motor shaft, Neoprene gasket
- Submersible sewage/effluent or dewatering pump
