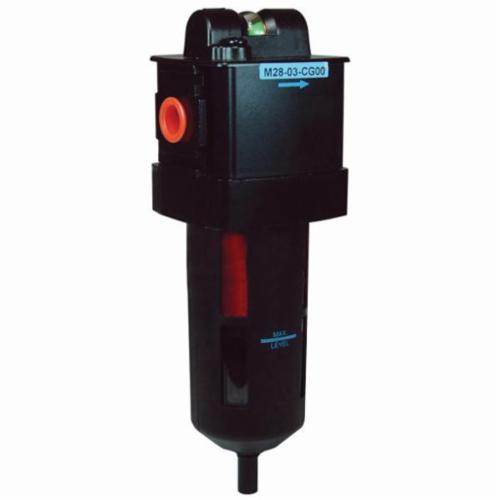

Wilkerson® by Dixon® M28-06M Lightweight Modular Standard Coalescing Filter With Manual Drain and Bowl Guard, 3/4 in NPT Port, 150 psig Pressure Range, 98 scfm Flow Rate, 0.01 micron, 32 to 125 deg F, Polycarbonate Bowl
CBPN: 252285
MPN:M28-06M
Price:
$192.78 / EA
DESCRIPTION
Wilkerson® by Dixon® Coalescing Filter, Lightweight Modular Standard, Series: M28, 3/4 in NPT, 98 scfm, 0.01 micron, 150 psig, 32 to 125 deg F, Polycarbonate Bowl, Zinc
Wilkerson® by Dixon® M28-06M Lightweight Modular Standard Coalescing Filter With Manual Drain and Bowl Guard, 3/4 in NPT Port, 150 psig Pressure Range, 98 scfm Flow Rate, 0.01 micron, 32 to 125 deg F, Polycarbonate Bowl
CBPN: 252285
MPN:M28-06M
Price:
$192.78 / EA
DESCRIPTION
Wilkerson® by Dixon® Coalescing Filter, Lightweight Modular Standard, Series: M28, 3/4 in NPT, 98 scfm, 0.01 micron, 150 psig, 32 to 125 deg F, Polycarbonate Bowl, Zinc
Specifications
Brand: Wilkerson® by Dixon®
Weight: 1.76 lbs
Port Size: 3/4 in NPT
Flow Rate: 98 scfm
Filter Rating: 0.01 micron
Pressure Range: 150 psig
Temperature Rating: 32 to 125 deg F
Bowl Material: Polycarbonate
Manufacturer Name: Dixon Valve & Coupling
Material: Zinc
Series: M28
Type: Lightweight Modular Standard
Application: For removal of water, oil aerosols, and solid particulate contaminants down to 0.01 mg/cu-m with minimum pressure drop
Item Features
- Modern design and appearance
- High flow capacity
- Differential pressure indicator changes from green to red with pressure loss
- ABS body cap
- Type C borosilicate cloth filter element
- Nitrile seals
