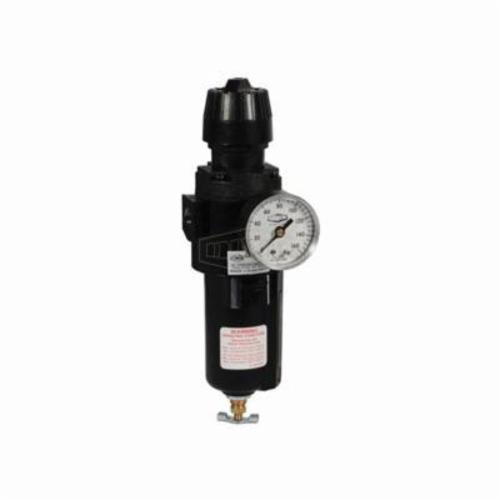

Wilkerson® by Dixon® CB6-04AGMB Self-Relieving Standard Compact Filter/Regulator With GC230 Gauge and Sight Glass, 1/2 in NPT/BSPP-G Port, 70 scfm Flow Rate, 200 psig Pressure, Zinc Bowl
CBPN: 252330
UPC:089109886562
MPN:CB6-04AGMB
Price:
$277.58 / EA
DESCRIPTION
Wilkerson® by Dixon® Compact Filter/Regulator, Self-Relieving Standard, Series: CB6, 1/2 in NPT/BSPP-G, 70 scfm, 200 psig, Zinc Bowl, 0 to 125 psig, Zinc
Wilkerson® by Dixon® CB6-04AGMB Self-Relieving Standard Compact Filter/Regulator With GC230 Gauge and Sight Glass, 1/2 in NPT/BSPP-G Port, 70 scfm Flow Rate, 200 psig Pressure, Zinc Bowl
CBPN: 252330
MPN:CB6-04AGMB
UPC:089109886562
Price:
$277.58 / EA
DESCRIPTION
Wilkerson® by Dixon® Compact Filter/Regulator, Self-Relieving Standard, Series: CB6, 1/2 in NPT/BSPP-G, 70 scfm, 200 psig, Zinc Bowl, 0 to 125 psig, Zinc
Specifications
Brand: Wilkerson® by Dixon®
Weight: 2.87 lbs
Port Size: 1/2 in NPT/BSPP-G
Flow Rate: 70 scfm
Pressure Range: 200 psig
Bowl Material: Zinc
Adjustment Range: 0 to 125 psig
Manufacturer Name: Dixon Valve & Coupling
Material: Zinc
Series: CB6
Type: Self-Relieving Standard
Warranty: Limited
Item Features
- Automatic drain
- Diaphragm operated
- Two 1/4 in gauge ports located on the front and rear faces of the body, these ports may be used as additional regulated ports or for pressure gauge
- Plug unused port
- 5 micron reusable element
- 5 oz bowl
- Over-under units are space savers and provide for installation in tight areas
- One common inlet/outlet for both filter and regulator saves on piping costs
