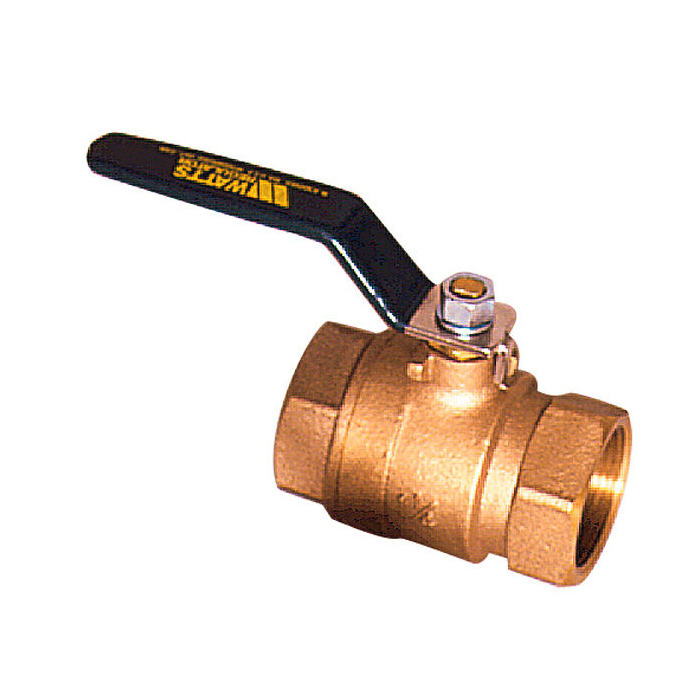

WATTS® 0792513 LFFBV-TC-TH 2-Piece Replacement Shut-Off Valve, 3/4 in Nominal, FNPT End Style, Bronze Body, Full Port, PTFE Softgoods, Import
CBPN: 171145
UPC:098268500479
MPN:0792513
DESCRIPTION
WATTS® Replacement Shut-Off Valve, 2-Piece, Series: LFFBV-TC-TH, 3/4 in Nominal, FNPT, 600 psi WOG, 0 to 350 deg F, Full Port, T-Handle Actuator, Brass Ball, Bronze Body, PTFE Seat Trim, PTFE, Import
This 3/4 in lead free 2-Piece, full port, ball valve with FNPT end connections is used in commercial and industrial backflow applications. The valve features bronze body construction, adjustable packing gland, chrome-plated bronze ball, virgin PTFE seats and seals, a bottom loaded blow-out proof stem, test cock and a tee handle. Each valve undergoes extensive factory testing before it is shipped, assuring a quality WATTS® product. The temperature range is 0 to 350 deg Fat 50 psi. The pressure range is 600 psi WOG non-shock at 100 deg F and 125 psi WSP.
WATTS® 0792513 LFFBV-TC-TH 2-Piece Replacement Shut-Off Valve, 3/4 in Nominal, FNPT End Style, Bronze Body, Full Port, PTFE Softgoods, Import
CBPN: 171145
MPN:0792513
UPC:098268500479
DESCRIPTION
WATTS® Replacement Shut-Off Valve, 2-Piece, Series: LFFBV-TC-TH, 3/4 in Nominal, FNPT, 600 psi WOG, 0 to 350 deg F, Full Port, T-Handle Actuator, Brass Ball, Bronze Body, PTFE Seat Trim, PTFE, Import
This 3/4 in lead free 2-Piece, full port, ball valve with FNPT end connections is used in commercial and industrial backflow applications. The valve features bronze body construction, adjustable packing gland, chrome-plated bronze ball, virgin PTFE seats and seals, a bottom loaded blow-out proof stem, test cock and a tee handle. Each valve undergoes extensive factory testing before it is shipped, assuring a quality WATTS® product. The temperature range is 0 to 350 deg Fat 50 psi. The pressure range is 600 psi WOG non-shock at 100 deg F and 125 psi WSP.
Specifications
Standards
PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.Item Features
- Full port for minimal pressure drop
- Excellent for throttling and balancing applications for non-abrasive liquids
- 125 psi working steam pressure
- Chrome plated brass ball
- PTFE seal
