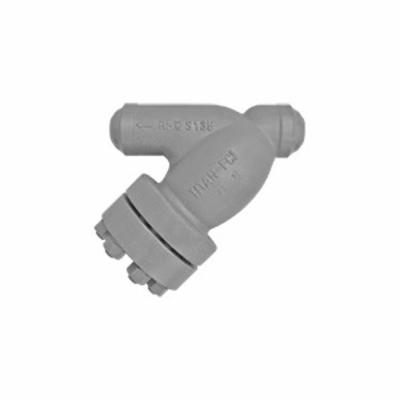

Titan® YS71C0600 YS71-CS Wye Strainer, 6 in Nominal, 13.05 in OAL, 2500#, Butt Weld Connection, RTJ Softgoods
CBPN: 250856
MPN:YS71C0600
Price:
$33867.04 / EA
Oversize or overweight
This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.
DESCRIPTION
Titan® Wye Strainer, Series: YS71-CS, 6 in Nominal, 13.05 in Overall Length, 2500#, Butt Weld Connection, RTJ Softgoods, Carbon Steel Body, Epoxy Painted, WCB Grade
Y Strainers (or Wye Strainers) mechanically remove debris in pipeline with a cylindrical straining element, often called a screen. They can be placed in horizontal or vertical pipelines (downward only) and require regular cleaning of the screen for proper operation.
Titan® YS71C0600 YS71-CS Wye Strainer, 6 in Nominal, 13.05 in OAL, 2500#, Butt Weld Connection, RTJ Softgoods
CBPN: 250856
MPN:YS71C0600
Price:
$33867.04 / EA
Oversize or overweight
This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.
DESCRIPTION
Titan® Wye Strainer, Series: YS71-CS, 6 in Nominal, 13.05 in Overall Length, 2500#, Butt Weld Connection, RTJ Softgoods, Carbon Steel Body, Epoxy Painted, WCB Grade
Y Strainers (or Wye Strainers) mechanically remove debris in pipeline with a cylindrical straining element, often called a screen. They can be placed in horizontal or vertical pipelines (downward only) and require regular cleaning of the screen for proper operation.
Specifications
Brand: Titan®
Weight: 688 lbs
Nominal Size: 6 in
Body Material: Carbon Steel
Connection Type: Butt Weld
Pressure Class: 2500 lb
Softgoods Material: RTJ
Overall Length: 13.05 in
Finish: Epoxy Painted
Grade: WCB
Manufacturer Name: Titan Flow Control
Series: YS71-CS
Application: Oil and Petrochemical Industries
Warranty: 1 Year
Standards and Approvals: ANSI Class 2500 | ASME/ANSI B16.25 | ASTM A-216 Grade WCB Body
Item Features
- Rugged high quality design: Titan®'s YS71 is ideal for petrochemical and other demanding industrial applications that have higher pressure and temperature requirements
- This unit employs heavy gauge, reinforced screens to prevent damage to the straining element, bolt holes are also back or spot faced and the outside diameters of the flanges are machined for precision
- Large straining capacity: With its large body and sizeable straining element, the YS71 provides excellent open area ratios that are typically two-and-a-half times larger than the corresponding pipeline
- Precision machined seats: Precision machined screen seats in both the body and cap help to ensure accurate positioning of the screen during reassembly after cleaning, also the machined body seats enable finer filtration by preventing debris bypass
- Reusable RTJ gasket: Precision machined RTJ gaskets are preferred for high pressure and high temperature services because they provide a tight, efficient seal and a long service life
- Epoxy painted: Carbon units are epoxy painted to help resist rust and corrosion
- RTJ gasket
