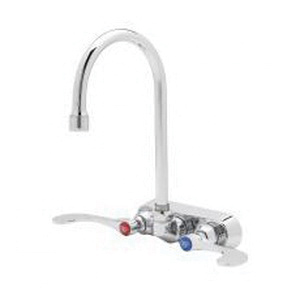

T & S B-1146-04 Workboard Mixing Manual Faucet, Polished Chrome, 4 in Center, 2.2 gpm
CBPN: 231808
UPC:671262516709
MPN:B-1146-04
Price:
$284.00 / EA
DESCRIPTION
T & S Workboard Mixing Manual Faucet, 2.2 gpm Flow Rate, 4 in Center Distance, Tubular Spout, 5-3/4 in Spout Reach, 6-1/4 in Spout Height, Wristblade Lever Handle, 1/2 in Connection, MNPT Connection, Spray Pattern: Aerated, 1/4 in Maximum Deck Thickness, Wall Mounting, Quarter-Turn Eterna Compression, 12 in W Dimensions, Brass, Polished Chrome, Domestic
T & S B-1146-04 Workboard Mixing Manual Faucet, Polished Chrome, 4 in Center, 2.2 gpm
CBPN: 231808
MPN:B-1146-04
UPC:671262516709
Price:
$284.00 / EA
DESCRIPTION
T & S Workboard Mixing Manual Faucet, 2.2 gpm Flow Rate, 4 in Center Distance, Tubular Spout, 5-3/4 in Spout Reach, 6-1/4 in Spout Height, Wristblade Lever Handle, 1/2 in Connection, MNPT Connection, Spray Pattern: Aerated, 1/4 in Maximum Deck Thickness, Wall Mounting, Quarter-Turn Eterna Compression, 12 in W Dimensions, Brass, Polished Chrome, Domestic
Specifications
Brand: T & S
Weight: 4.5 lbs
Finish/Color: Polished Chrome
Center Distance: 4 in
Flow Rate: 2.2 gpm
Connection Size: 1/2 in
Connection Type: MNPT
Dimensions: 12 in W
Handle Type: Wristblade Lever
Manufacturer Name: T & S Brass
Material: Brass
Maximum Deck Thickness: 1/4 in
Mounting Type: Wall
Spout Height: 6-1/4 in
Spout Reach: 5-3/4 in
Spout Type: Tubular
Spray Pattern: Aerated
Valve/Cartridge Type: Quarter-Turn Eterna Compression
Warranty: 1 Year Limited
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ANSI/ICC A117.1 (ADA) | ASME A112.18.1/CSA B125.1 | BAA/ARRA Certification | Commonwealth of Massachusetts | NSF 61-Section 9 and NSF/ANSI 372
Item Features
- 5-3/4 in swivel gooseneck
- 6 in nozzles
- Quarter turn eterna compression cartridge with spring check to prevent cross flow of water
- 4 in wrist-action handle with color coded indexes
- Tailpiece and nut to provide 1/4 in MNPT
- Polished chrome escutcheon
- 40 to 140 deg F rated operating
- 2.2 gpm at 60 psi
- Rough-in requirement - (2) 1 in Dia (25mm) mounting hole
- Low lead content (0.25% max)
- Polished chrome metal handle and escutcheon
