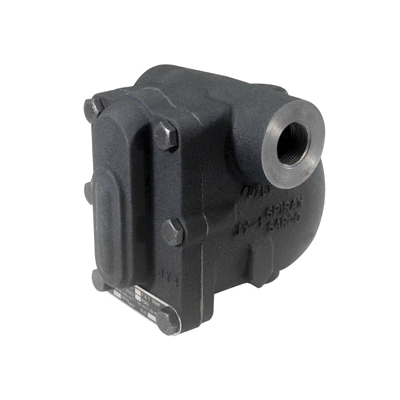

Spirax Sarco 74115, FTI-30 Float and Thermostatic Steam Trap, 1-1/2 in, FNPT, 450 deg F, 30 psig, Cast Iron
CBPN: 123137
MPN:74115
Price:
$1418.44 / EA
DESCRIPTION
Spirax Sarco Float and Thermostatic Steam Trap, 1-1/2 in Nominal, NPT, 30 psig, Cast Iron, 450 deg F
The Spirax Sarco FTI contains a float valve mechanism which modulates to discharge condensate continuously at steam temperature while non-condensable gases are released by a separate internal balanced pressure thermostatic air vent. The in-line piping connections simplify installation.
Spirax Sarco 74115, FTI-30 Float and Thermostatic Steam Trap, 1-1/2 in, FNPT, 450 deg F, 30 psig, Cast Iron
CBPN: 123137
MPN:74115
Price:
$1418.44 / EA
DESCRIPTION
Spirax Sarco Float and Thermostatic Steam Trap, 1-1/2 in Nominal, NPT, 30 psig, Cast Iron, 450 deg F
The Spirax Sarco FTI contains a float valve mechanism which modulates to discharge condensate continuously at steam temperature while non-condensable gases are released by a separate internal balanced pressure thermostatic air vent. The in-line piping connections simplify installation.
Specifications
Brand: Spirax Sarco
Weight: 52 lbs
Nominal Size: 1-1/2 in
End Style: FNPT
Max Operating Pressure: 30 psig
Max Allowable Pressure: 200 psig/up to 450 deg F
Max Allowable Temperature: 450 deg F/up to 200 psig
Material: Cast Iron
Manufacturer Name: Spirax-Sarco Inc
Series: FTI-30
Application: Air heating coils, Heat exchangers, Steam main drip stations, Small process equipment, Particularly when controlled by a modulating temperature control valve; replacement of less efficient inverted bucket traps on unit heating equipment
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM A126 Class B Body
Item Features
- Stainless steel internals
- Maximum allowable pressure: 200 psig at up to 450 deg F
- Maximum allowable temperature: 450 deg F at 0 to 200 psig
- Straight through Piping
