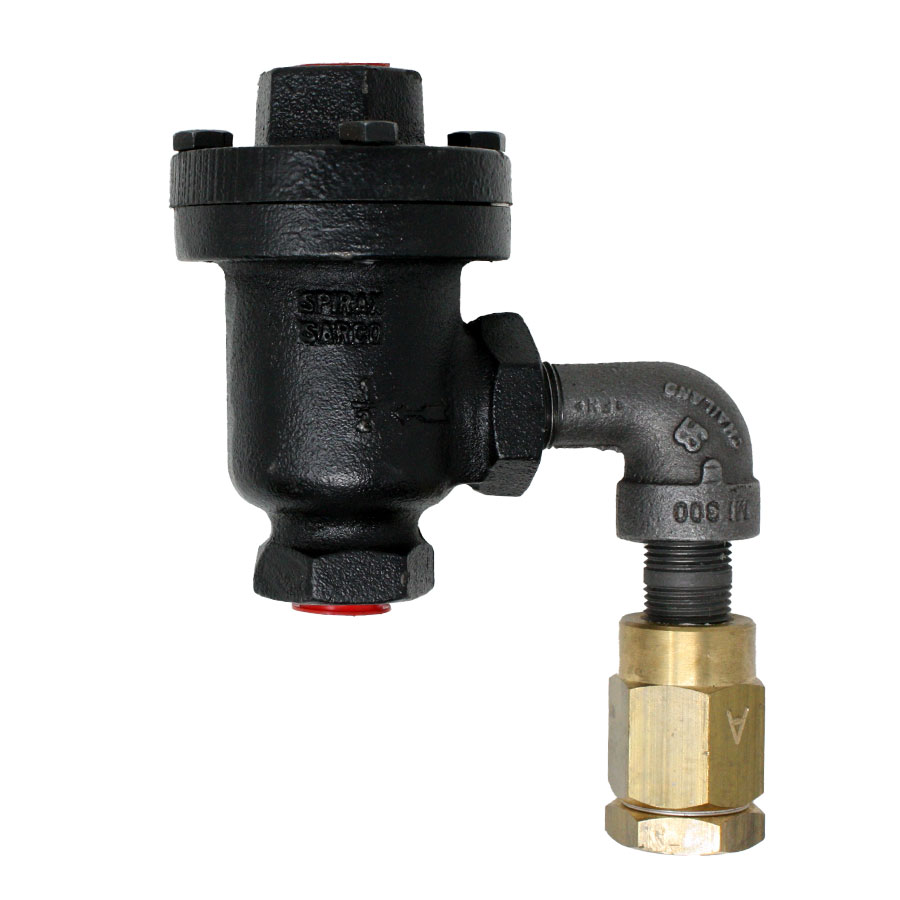

Spirax Sarco 72147, VB-VS Combination Vacuum Breaker and Balanced Pressure Combination Vacuum Breaker/Balanced Pressure Thermostatic Air Vent, 1/2 in NPT, 200 psi, 450 deg F, Cast Iron
CBPN:77681
MPN:72147
Price:
$721.63 / EA
DESCRIPTION
Spirax Sarco Combination Vacuum Breaker/Balanced Pressure Thermostatic Air Vent, Combination Vacuum Breaker and Balanced Pressure, 1/2 in NPT, 200 psi, 450 deg F, Cast Iron, 6.87 in H x 5.53 in W
The VB-VS Vacuum Breaker/Air Vent is designed for use on steam systems to remove air and other non-condensable gases, which may impair heat transfer during start-up and normal operation, and admit air when system drops in vacuum.
This steam vacuum breaker can be maintained without disturbing the inlet piping connections, however, complete isolation is required before service is
performed as well as the vs combo vent must be cooled down first.
The VB-BS vacuum breaker should be inspected and cleaned periodically. Worn or damaged parts, especially the valve head and seat, should be replaced. See below for VB-VS Combo spare parts.
Spirax Sarco 72147, VB-VS Combination Vacuum Breaker and Balanced Pressure Combination Vacuum Breaker/Balanced Pressure Thermostatic Air Vent, 1/2 in NPT, 200 psi, 450 deg F, Cast Iron
CBPN:77681
MPN:72147
Price:
$721.63 / EA
DESCRIPTION
Spirax Sarco Combination Vacuum Breaker/Balanced Pressure Thermostatic Air Vent, Combination Vacuum Breaker and Balanced Pressure, 1/2 in NPT, 200 psi, 450 deg F, Cast Iron, 6.87 in H x 5.53 in W
The VB-VS Vacuum Breaker/Air Vent is designed for use on steam systems to remove air and other non-condensable gases, which may impair heat transfer during start-up and normal operation, and admit air when system drops in vacuum.
This steam vacuum breaker can be maintained without disturbing the inlet piping connections, however, complete isolation is required before service is
performed as well as the vs combo vent must be cooled down first.
The VB-BS vacuum breaker should be inspected and cleaned periodically. Worn or damaged parts, especially the valve head and seat, should be replaced. See below for VB-VS Combo spare parts.
Specifications
Brand: Spirax Sarco
Weight: 4.3lbs
Material: Cast Iron
Temperature Rating: 450 deg F
Type: Combination Vacuum Breaker and Balanced Pressure
Connection Type: 1/2 in NPT
Pressure Rating: 200 psi
Dimensions: 6.87 in H x 5.53 in W
Manufacturer Name: Spirax-Sarco Inc
Application: For installation at end of all steam mains and headers, on all steam equipment such as air coils, heat exchangers, autoclaves, sterilizers, platen presses, rotating cylinders, jacketed kettles, laundry equipment and reboilers
Standards and Approvals: ASTM A126 Class B/A449 Body
Item Features
- Saturated steam maximum operating temperature
- 200 psig maximum allowable
- 450 deg F maximum allowable temperature
- Stainless steel internals
