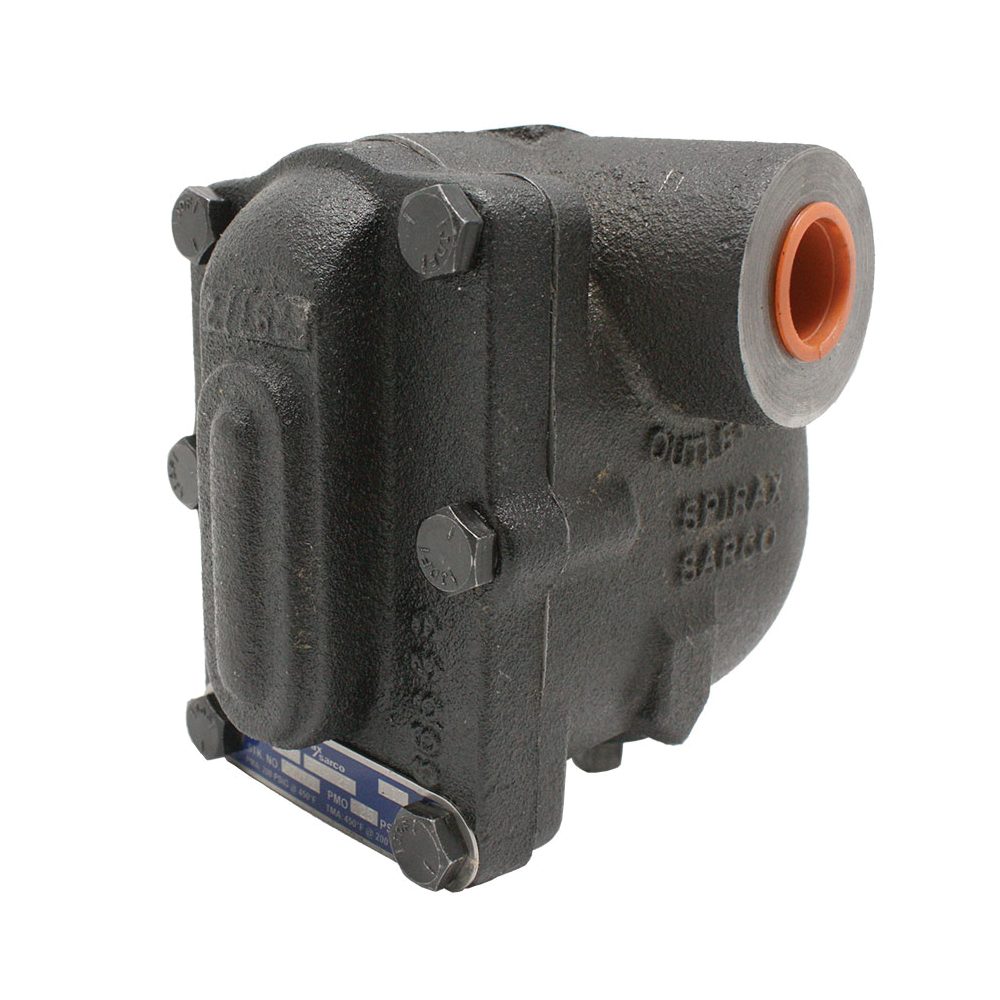

Spirax Sarco 66669, FTI-15 Float and Thermostatic Steam Trap, 3/4 in, FNPT, 450 deg F, 15 psi, Cast Iron
CBPN:7603
MPN:66669
Price:
$347.62 / EA
DESCRIPTION
Spirax Sarco Float and Thermostatic Steam Trap, 3/4 in Nominal, FNPT, 6-1/2 in Length, 15 psi, Cast Iron, 450 deg F, 5.8 in H x 4.8 in W
The Spirax Sarco® FTI contains a float valve mechanism which modulates to discharge condensate continuously at steam temperature while non-condensable gases are released by a separate internal balanced pressure thermostatic air vent. The in-line piping connections simplify installation.
Spirax Sarco 66669, FTI-15 Float and Thermostatic Steam Trap, 3/4 in, FNPT, 450 deg F, 15 psi, Cast Iron
CBPN:7603
MPN:66669
Price:
$347.62 / EA
DESCRIPTION
Spirax Sarco Float and Thermostatic Steam Trap, 3/4 in Nominal, FNPT, 6-1/2 in Length, 15 psi, Cast Iron, 450 deg F, 5.8 in H x 4.8 in W
The Spirax Sarco® FTI contains a float valve mechanism which modulates to discharge condensate continuously at steam temperature while non-condensable gases are released by a separate internal balanced pressure thermostatic air vent. The in-line piping connections simplify installation.
Specifications
Brand: Spirax Sarco
Weight: 11.3 lbs
Nominal Size: 3/4 in
End Style: FNPT
Max Operating Pressure: 15 psig
Max Allowable Pressure: 200 psig/up to 450 deg F
Max Allowable Temperature: 450 deg F/up to 200 psig
Material: Cast Iron
Dimensions: 5.8 in H x 4.8 in W
Length: 6-1/2 in
Manufacturer Name: Spirax-Sarco Inc
Series: FTI-15
Application: Air heating coils, heat exchangers, steam main drip stations, small process equipment, particularly when controlled by a modulating temperature control valve, replacement of less efficient inverted bucket traps on unit heating equipment
Standards and Approvals: ASTM A126 Class B Body
Item Features
- 200 psig at 450 deg F Maximum allowable pressure
- 450 deg F at 0 to 200 psig Maximum allowable temperature
- Inline horizontal piping configuration
- Stainless steel internals
